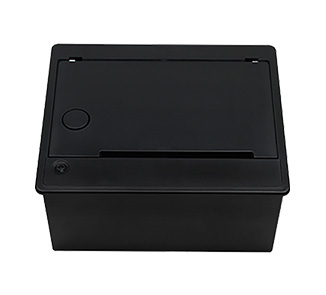

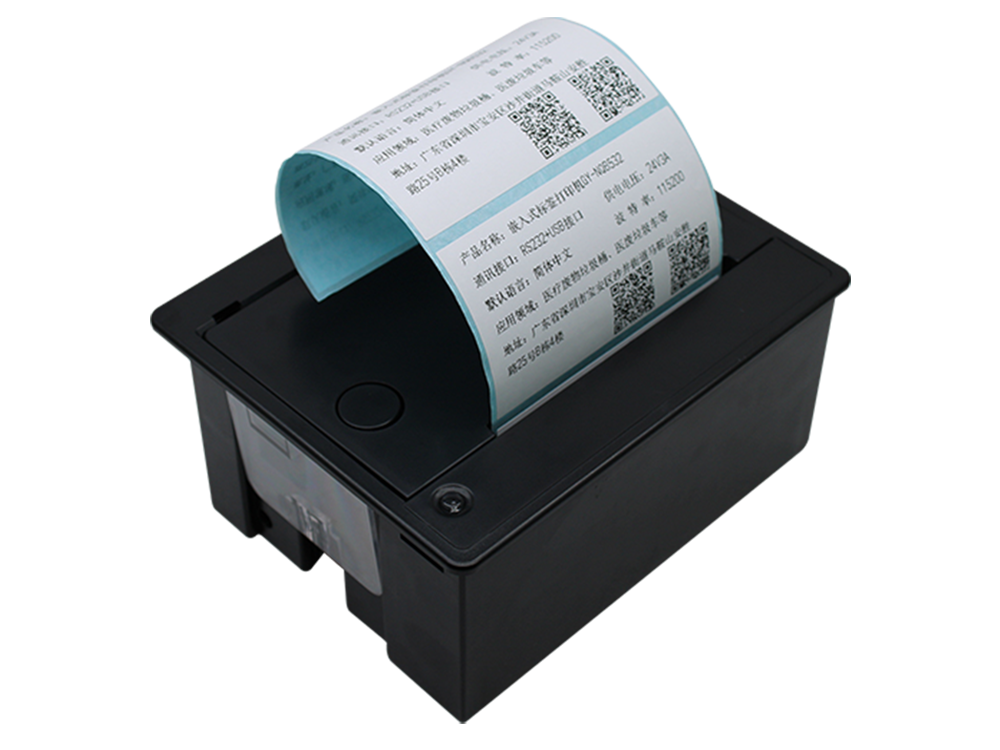

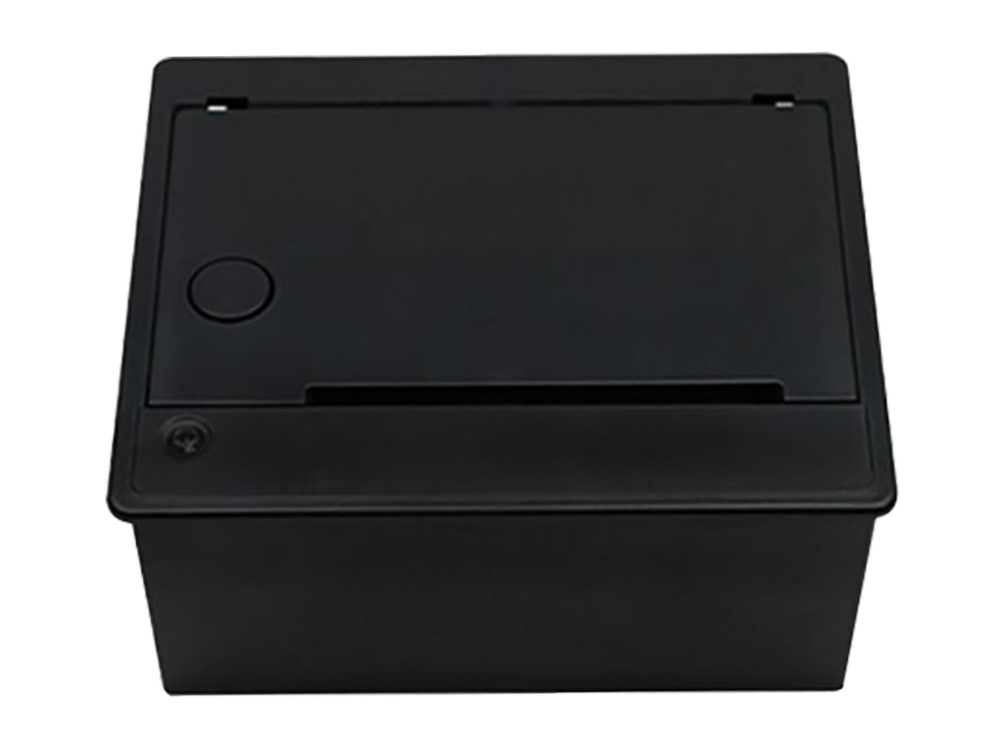

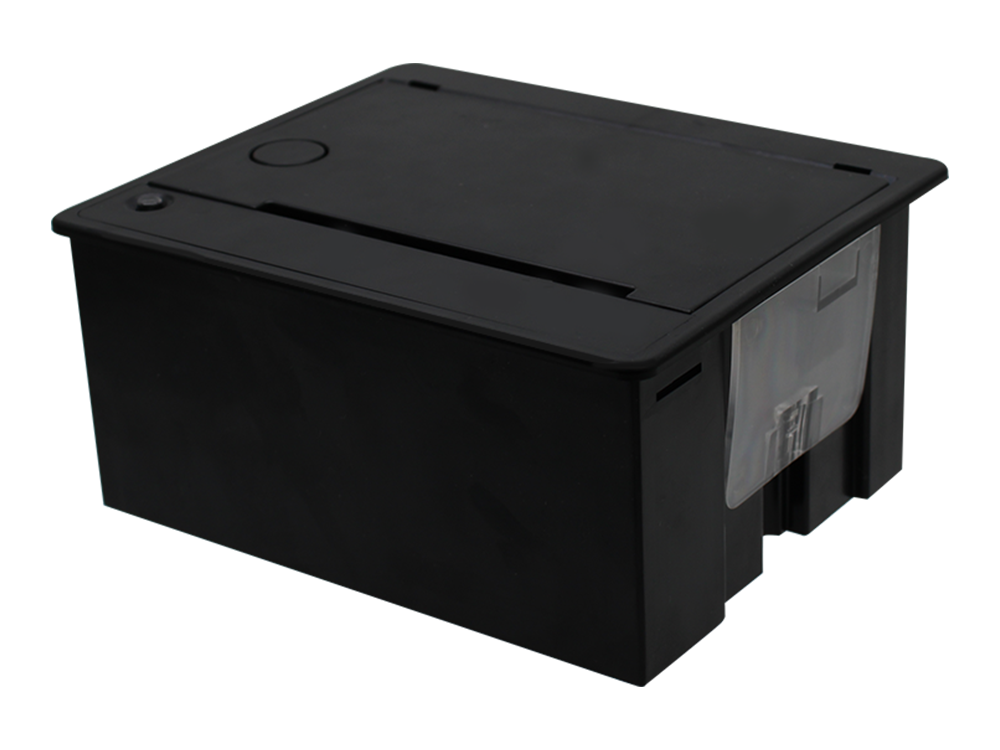

GY-ELP80P

80MM embedded thermal printer I automatic paper cutting

A dual-mode printer that can print both labels and receipts can save you more costs Suitable for most self-service terminals widely used in supermarkets, restaurants, hospitals, and public places

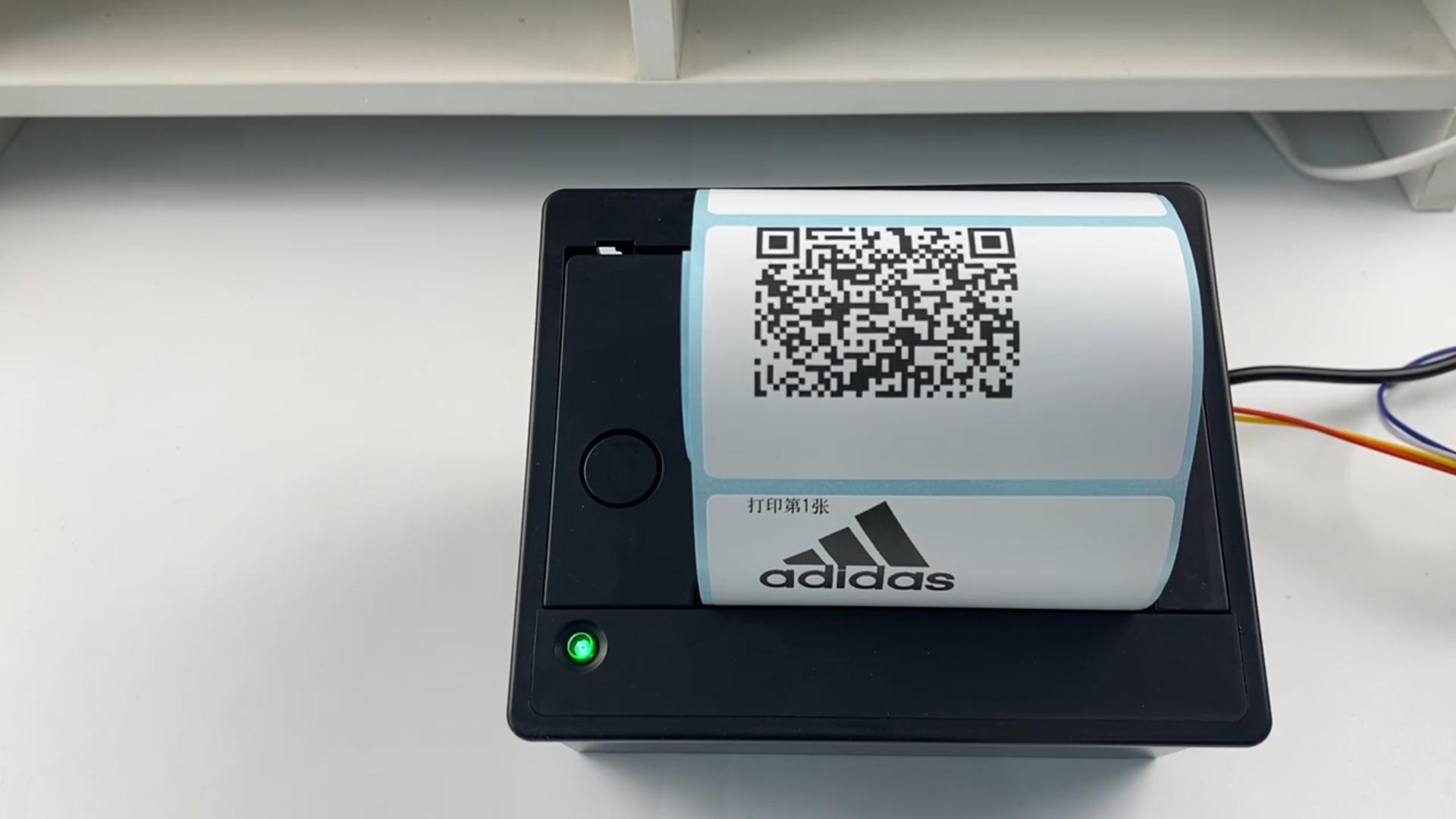

Ticket/tag switchable mode

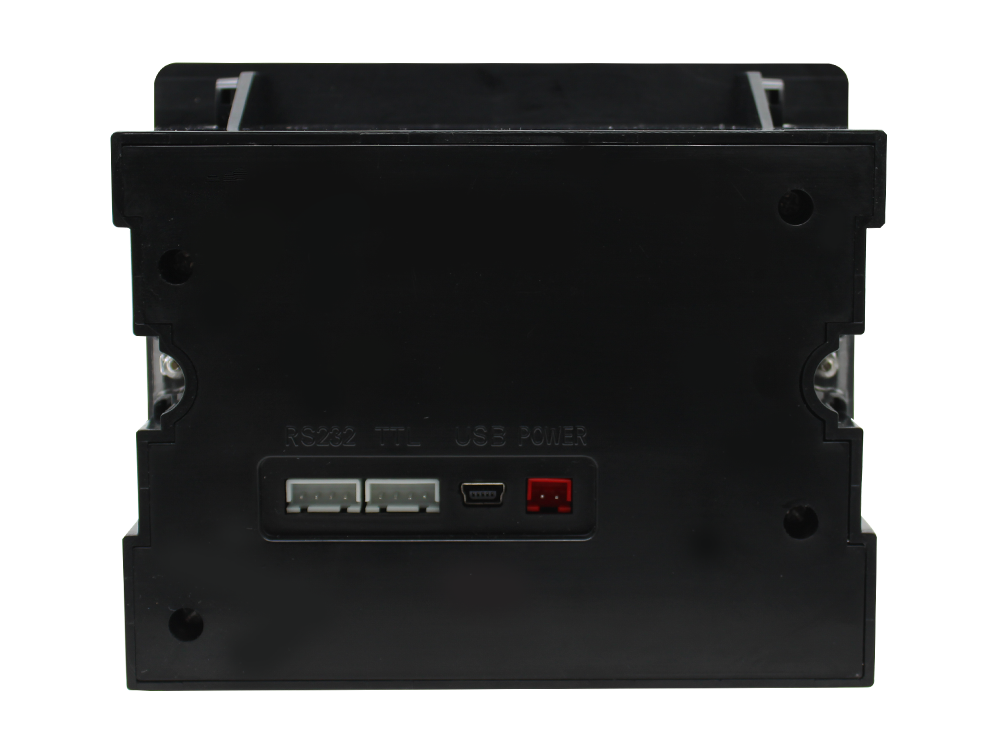

RS232+TTL+USB interface

12-24V wide voltage power supply

Black/white is optional, and colors can also be customized

Printing of thermal labels/receipts in various fields

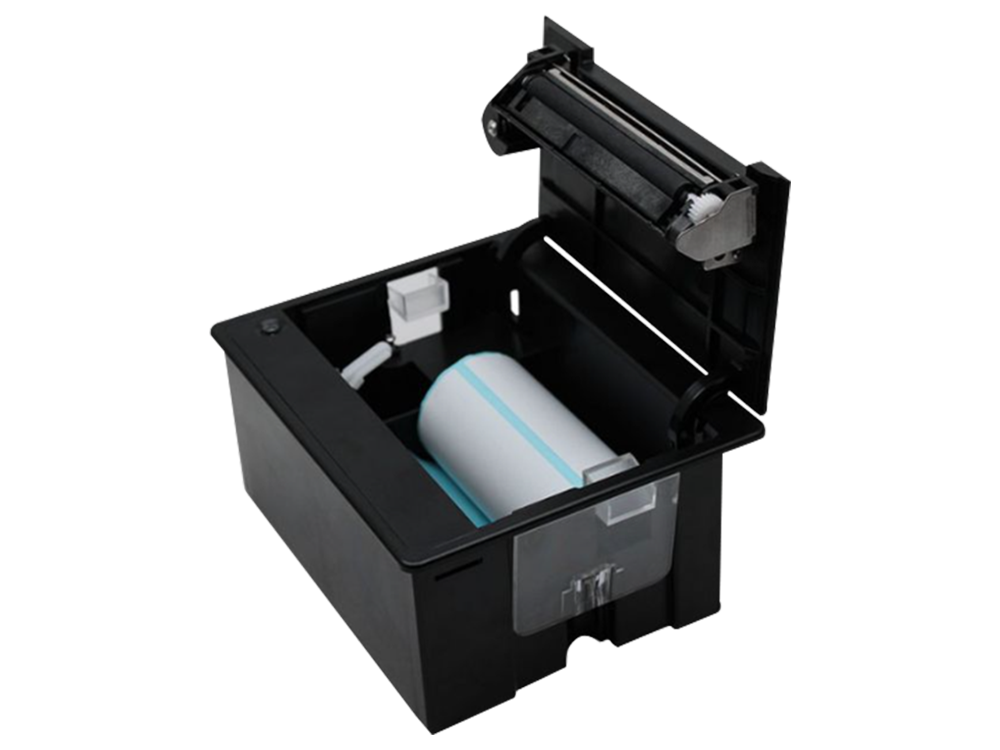

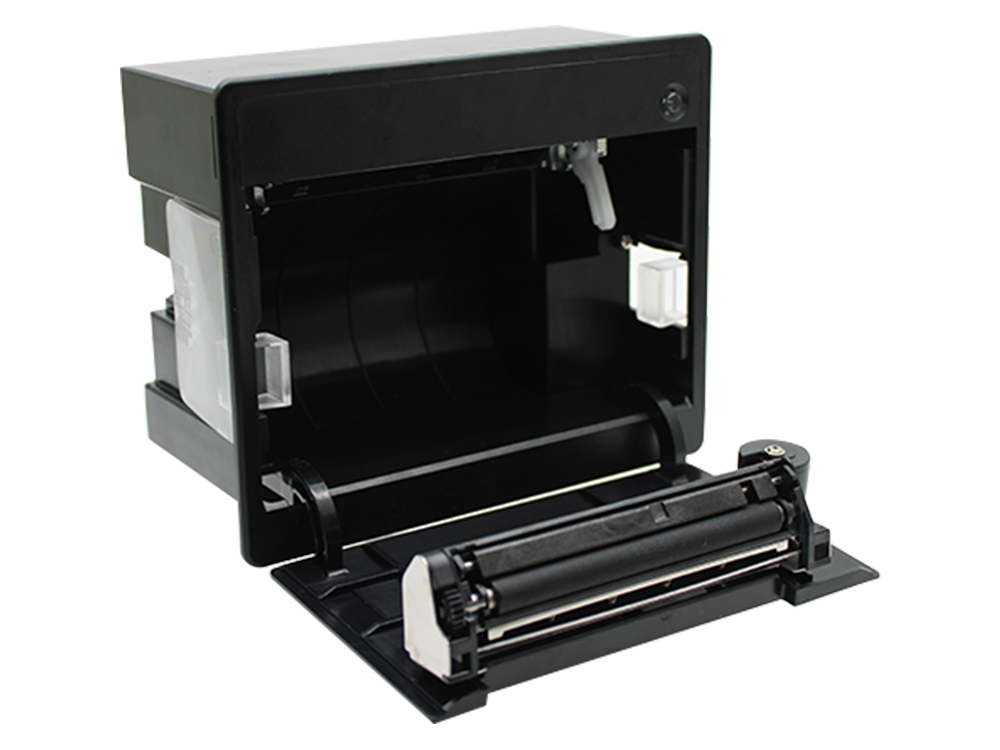

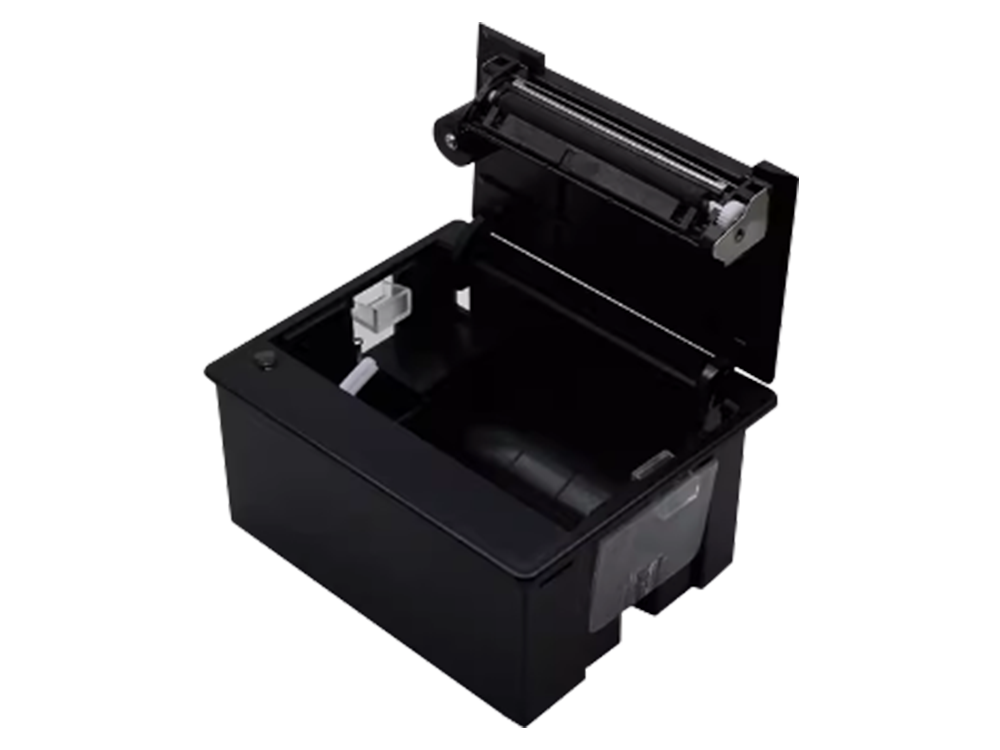

Support status reply function, manual paper tearing, 50MM paper bin, front panel easy to pack paper structure design

No carbon tape, no color tape, no ink Thermal technology printing

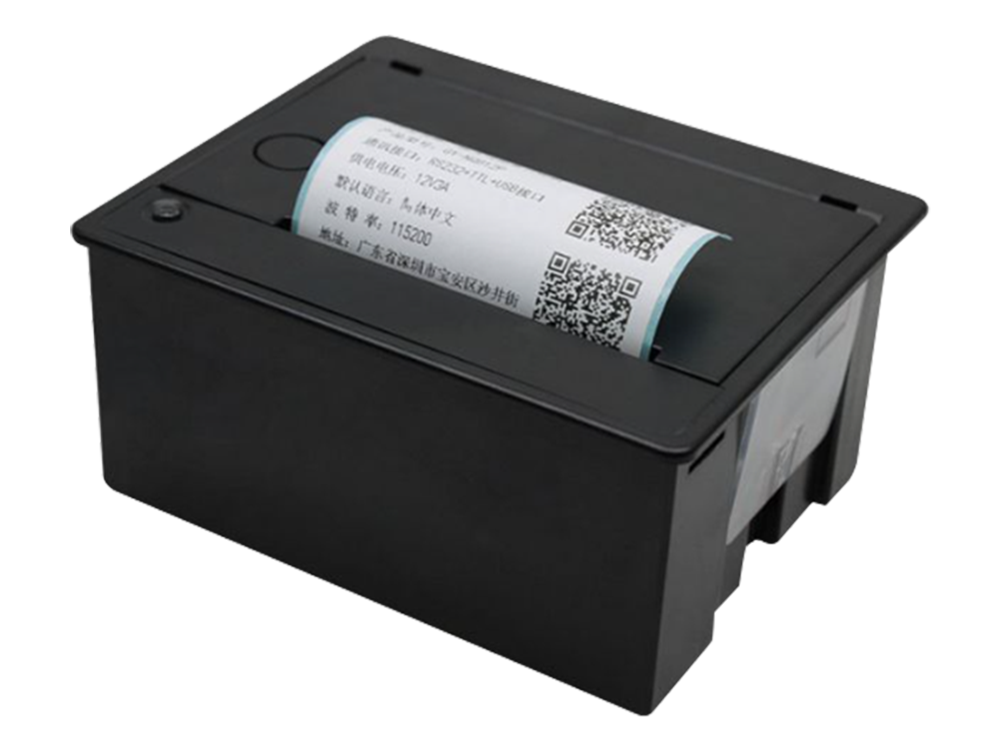

: 80MM embedded thermal printer I automatic paper cutting

A dual-mode printer that can print both labels and receipts can save you more costs Equipped with a cutting knife and no manual paper tearing, it can be printed in half/full cutting dual modes without the need for manual paper tearing, resulting in faster efficiency Can hold 50MM diameter paper rolls, reduce labor burden, make work easier and faster

: 80MM embedded thermal printer I automatic paper cutting

This is an 80MM embedded thermal printer that automatically cuts paper. It has a simple appearance, fast printing speed, clear printing, stable performance, and is suitable for public places such as shopping malls, supermarkets, hospitals, etc

Parameter

Basic information
Product name	80MM embedded thermal printer I automatic paper cutting
Product model	GY-ELP80P
Printing type	Ticket/tag switchable mode
Specification parameters	12-24V wide voltage power supply
communication interface	RS232+TTL+USB interface
Appearance dimensions	13511262MM
Appearance color	Black/white is optional, and colors can also be customized
Usage scenarios	Indoor use of self-service terminal equipment
Product features	Support status reply function, manual paper tearing, 50MM paper bin, front panel easy to pack paper structure design
Secondary development	Supports controlling printing on Linux, Android, PLC, Raspberry Pi, Windows, microcontrollers, and more

Data Download

Document name

Update Time：2022-11-28

File Size:9 KB

File Format:doc

Download

Common Problem

How to connect the serial port of the printer?

All of our integrated printers (products that need to be integrated into the device) have a232serial port or TTL serial port with 4 pins, defined as TX, RX, GND, and DTR. Currentlytheactual amount of data printed is not large, usually using 3 lines, which are TX, RX. andGND
After using the printer for a period of time, it may not print clearly. ls there no ink left?

No, this type of thermosensitive printer does not require consumables such as ink, toner.orribbons. The color development principle relies on the printer's movement heating to makethethermosensitive paper, and the color development agent on top of it produces the colorthatwe see as a small ticket. The reason for unclear printing of thermal printers is mostlyrelatedto the thermal color agent coating of thermal paper. However, cheap thermal paper onthemarket has poor thermal color agent, resulting in blurry printing and short retention time
What is the situation of unclear printing effect?

1. First, troubleshoot the issue with the printer itself. Open the paper compartment coverandcheck for dirt on the rollers and print head. lf not, troubleshoot the issue. lf so, gently cleanitup! 2. Check if there is moisture on the paper roll. lf not, it can also be ruled out! 3. it's justthatthe current of the power supply is not enough, and there is a possibility of virtual
Do l need to install a driver when printing via USB on a computer?

lf necessary, you can control printing through the USB on the computer side. You need toinstall a printer driver, and then call the original driver to print when the software controls, justlike the principle of calling the local laser printer or inkjet printer after the WORD is edited!Using driver printing, there is no need to worry about the printer's instruction manual, but

GY-ELP80P

80MM embedded thermal printer I automatic paper cutting

80MM embedded thermal printer I automatic paper cutting

80MM embedded thermal printer I automatic paper cutting

Video introduction

Parameter

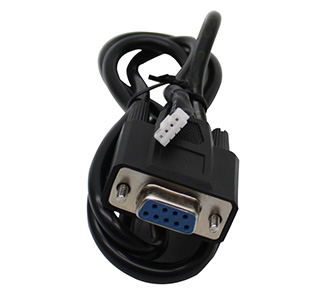

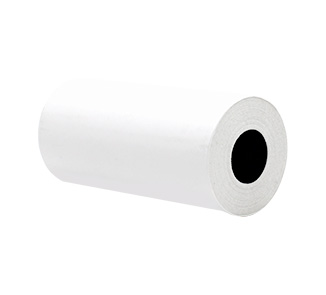

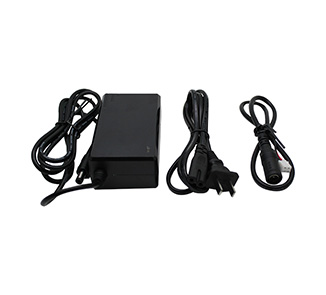

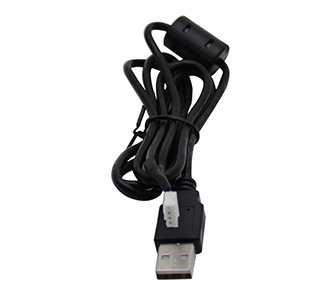

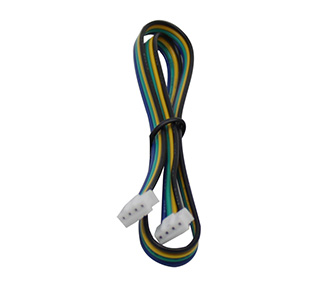

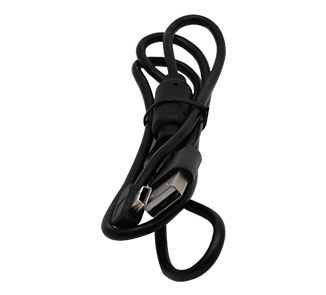

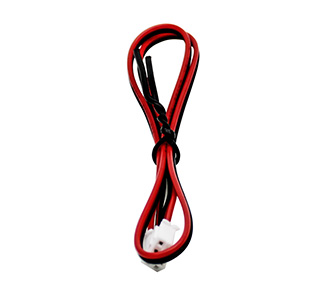

Details Of Accessories

Data Download

Document name

Download

Document name

Download

Document name

Download

Document name

Download

Document name

Download

Document name

Download

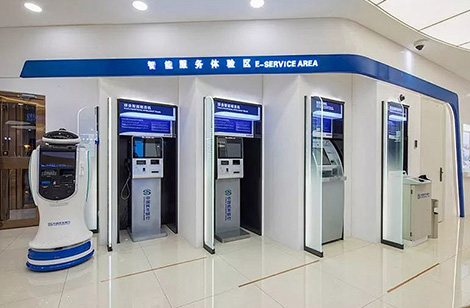

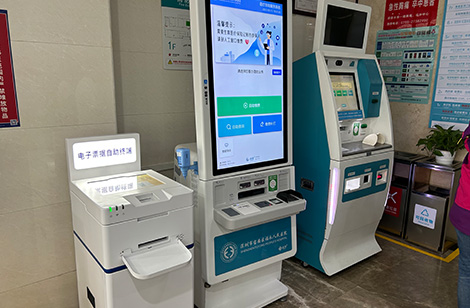

Application Area

Self-service ordering machine

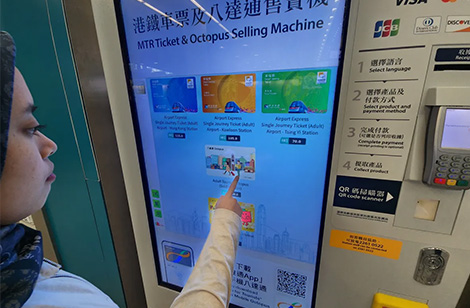

Self service ticket machine

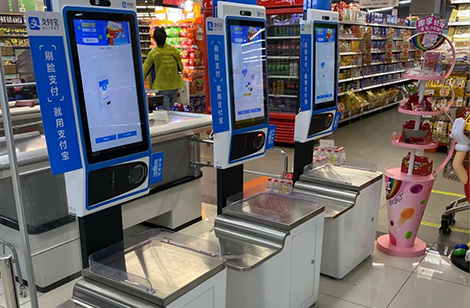

Self-service cash register

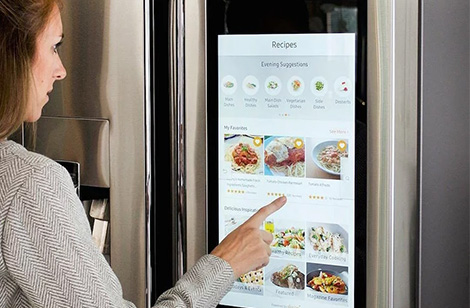

Self service terminal services

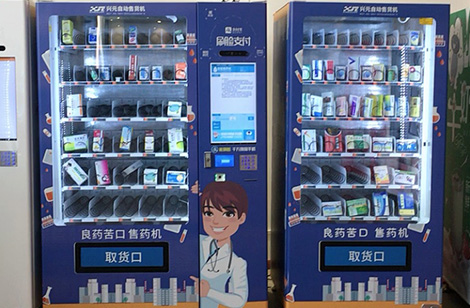

Self service vending machines

Bank self-service statement printing

Common Problem

How to connect the serial port of the printer?

After using the printer for a period of time, it may not print clearly. ls there no ink left?

What is the situation of unclear printing effect?

Do l need to install a driver when printing via USB on a computer?
