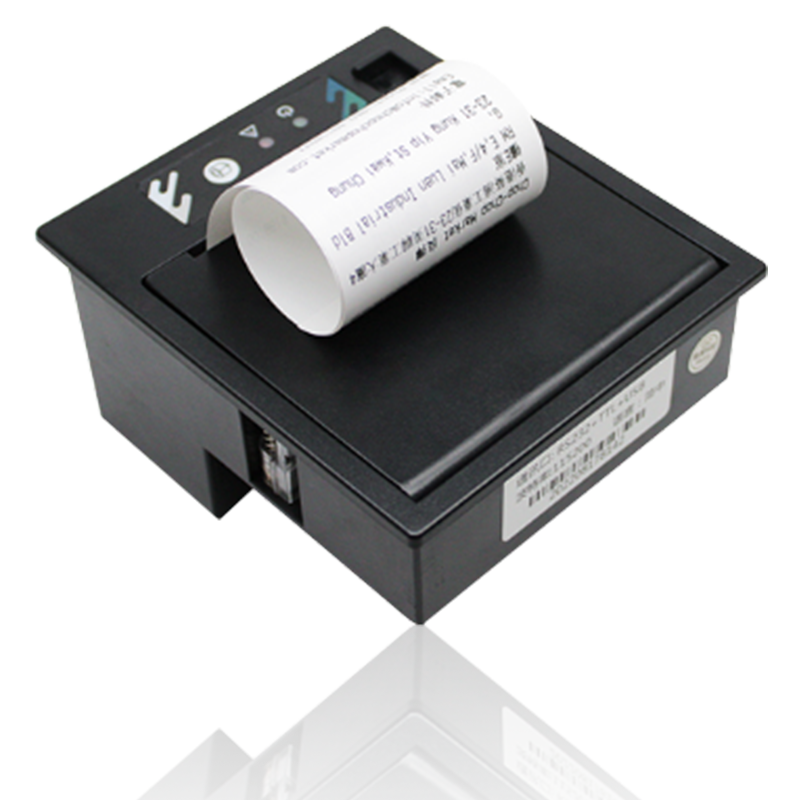

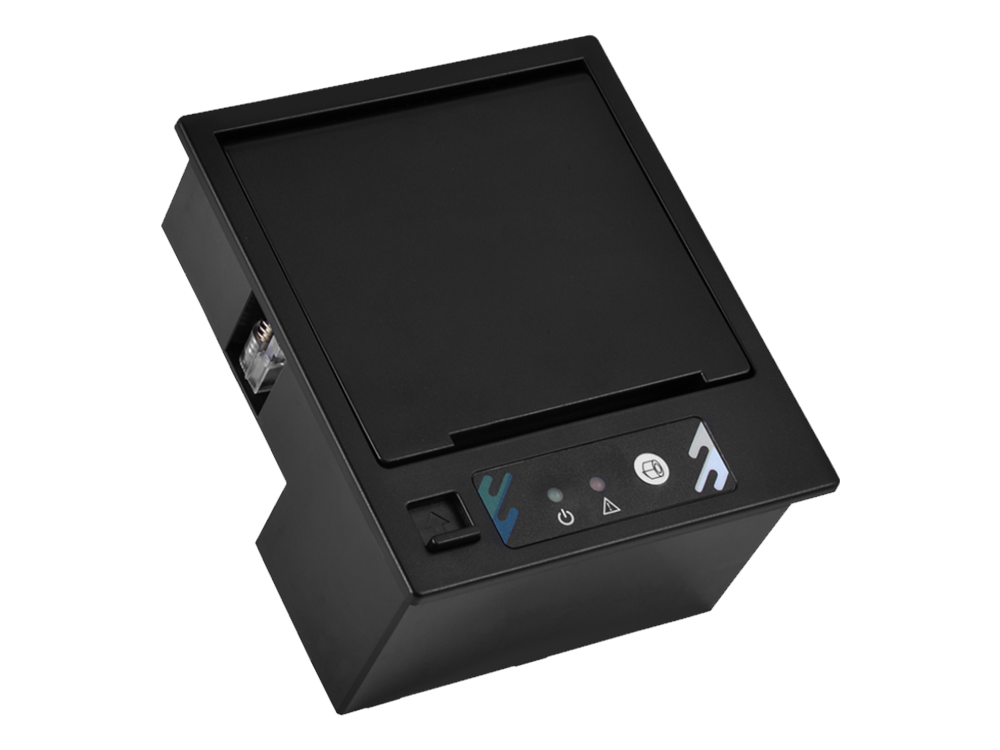

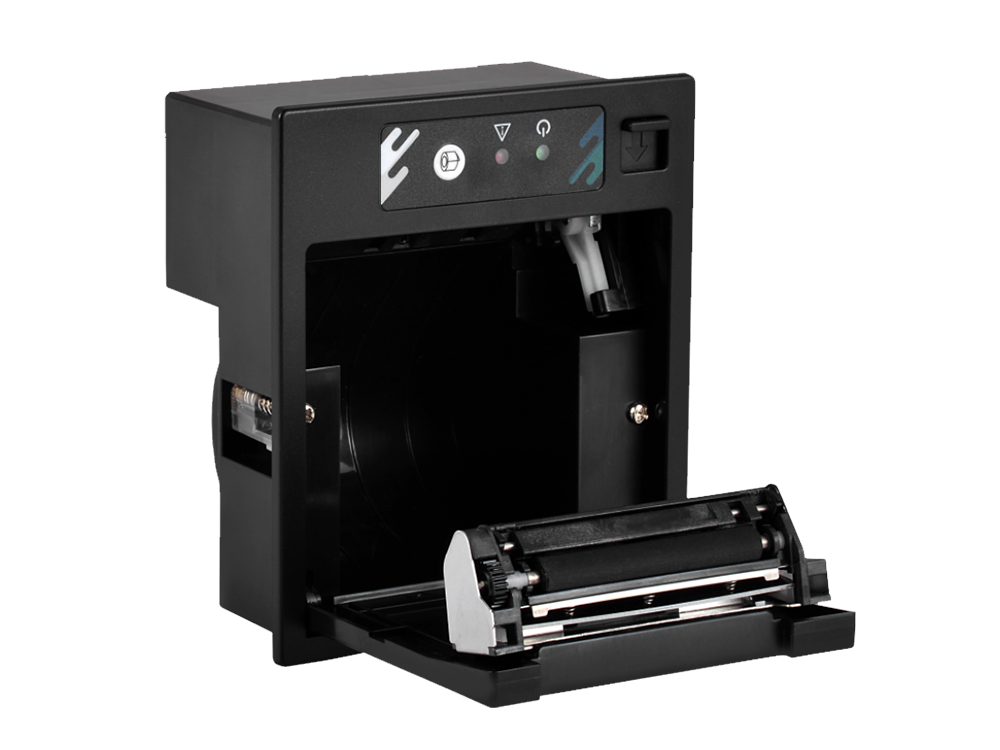

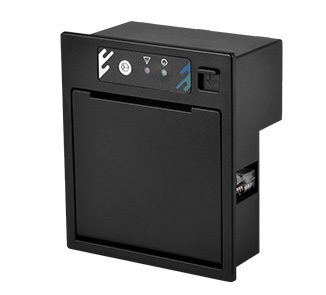

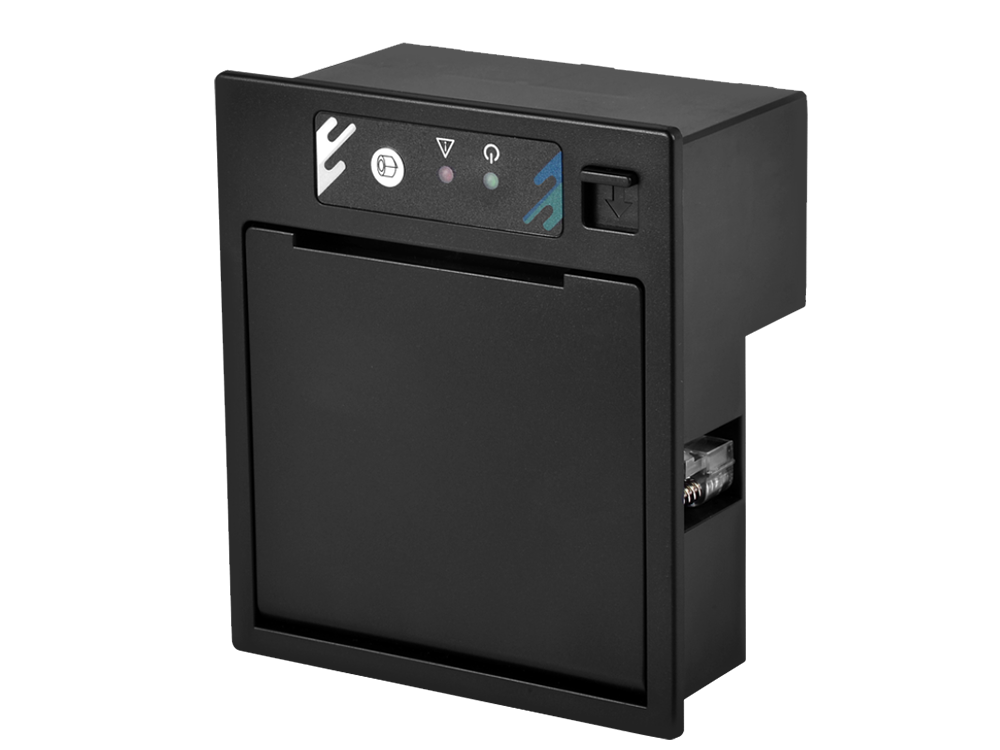

GY-ELP58P

58MM embedded thermal label/receipt printer

Specially designed for system/hardware integrators Supports TTL+232+USB

Stable performance

Clear printing

Double printing of labels/receipts

60MM large capacity paper bin

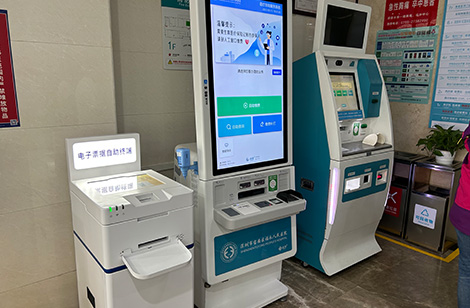

Applicable scope：Medical testing equipment/intelligent medical waste recycling/material processing equipment/weighing scale equipment/testing instrument equipment

: 58MM embedded thermal label/receipt printer

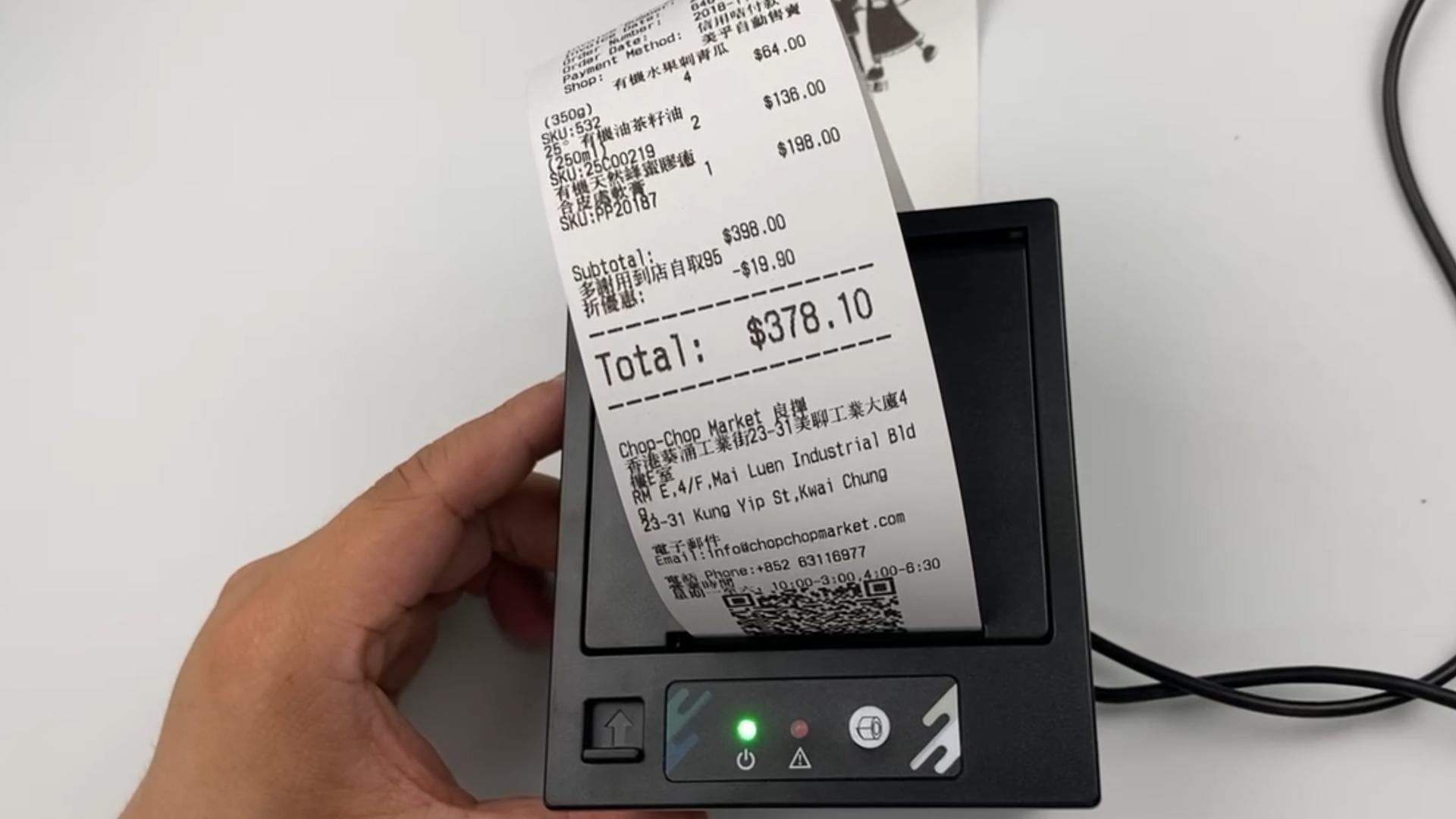

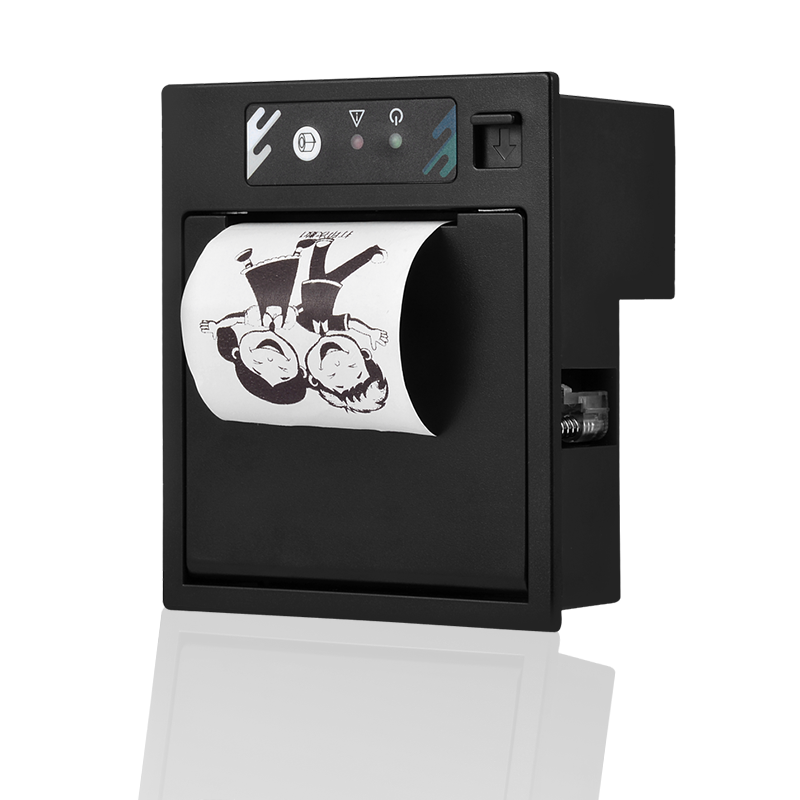

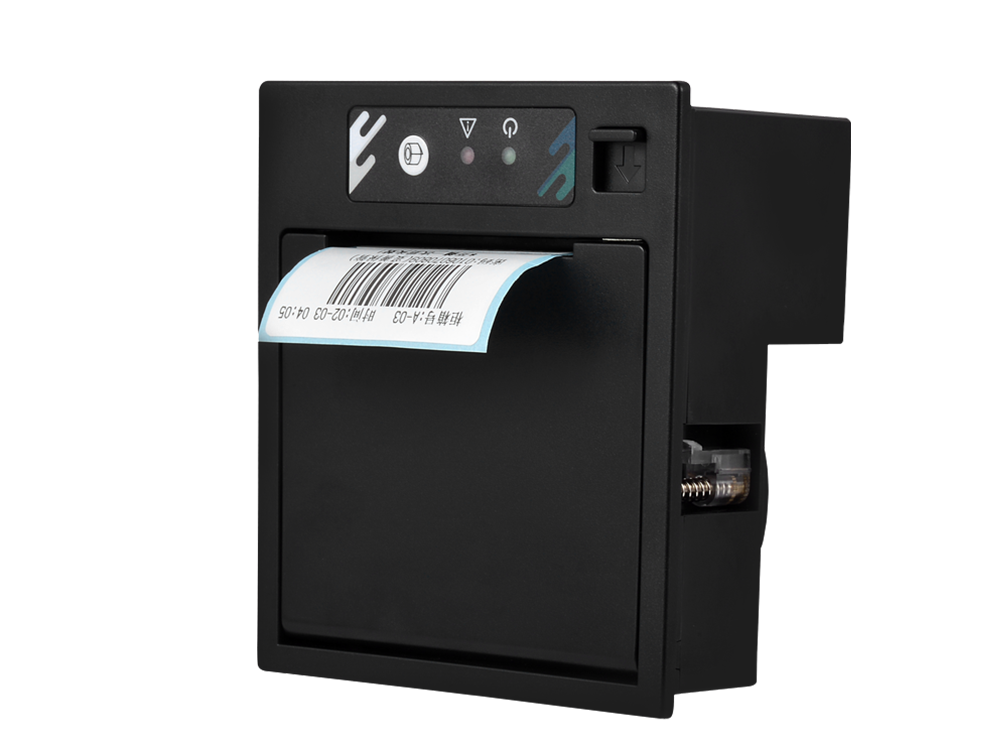

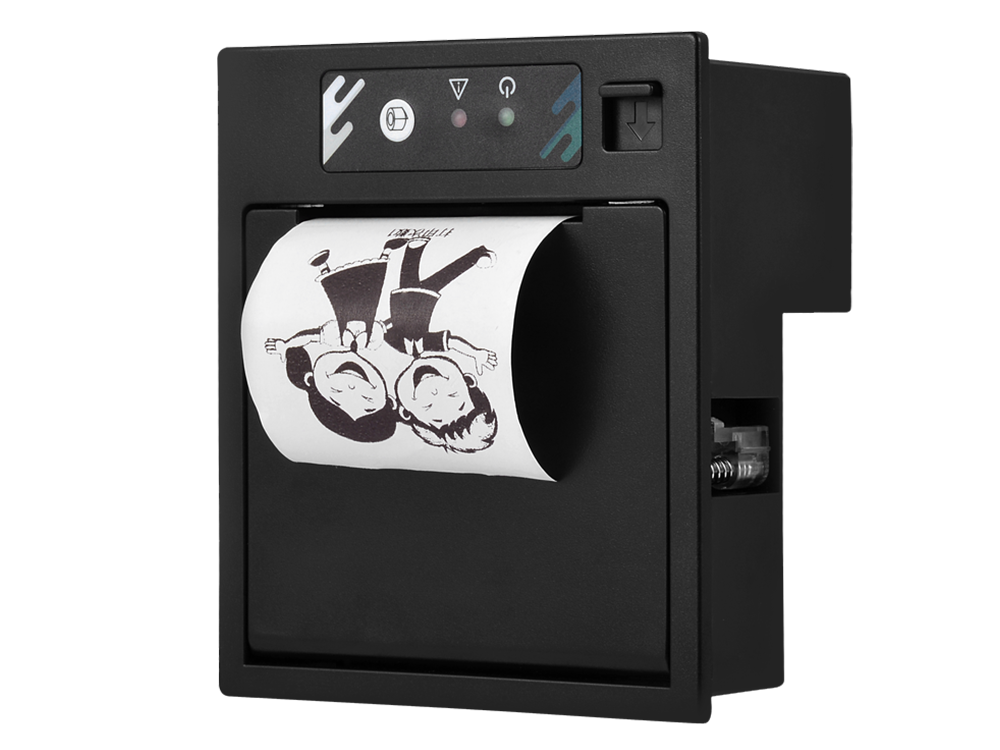

1 machine with 2 modes of printing functionIn addition to printing labels, I can also print receipts. I only need to set a command in the software to switch between receipt and label modes to meet different usage scenarios, and I can do anything The printing effect is clear. The thermal print head with a resolution of 203DPI is sufficient to handle daily printing effects, and the 203DPI resolution is unquestionable

: 58MM embedded thermal label/receipt printer

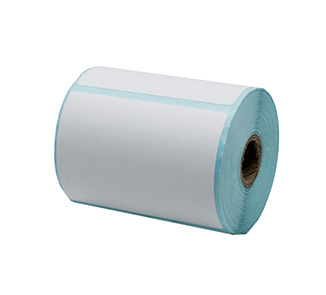

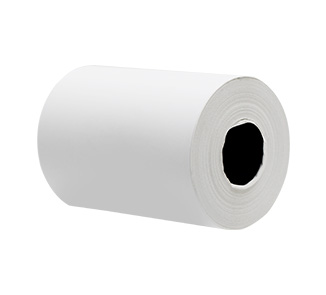

Carbon free tape/color free tape/no toner/no ink after use. Simply replace with another roll of hot paper or hot label paper. Carbon free/color free/ink free, avoiding toner dust, truly cleaning printing, healthy and worry free. Printing has a long lifespan, simple maintenance, saves consumables costs, reduces costs, and improves usage efficiency.

Parameter

Basic information
Product Name	58MM panel thermal printer
Product model	GY-ELP58P
Printing type	Ticket/tag switchable mode

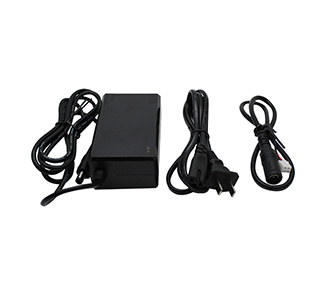

Specification parameters	9~24V wide voltage power supply

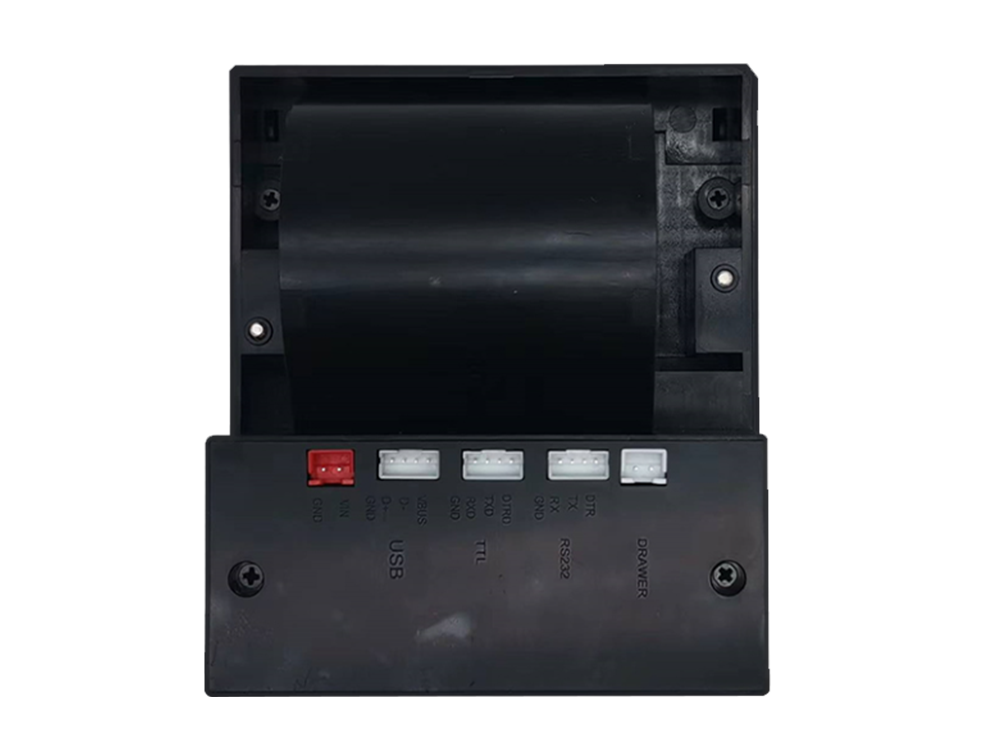

Communication interface	RS232+TTL+USB+Money Box Interface
Appearance dimensions	102.5117.7961.44MM
Appearance color	Black/White optional (customizable colors)

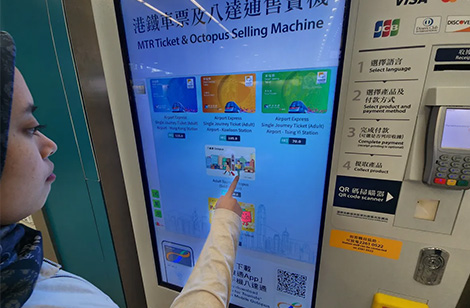

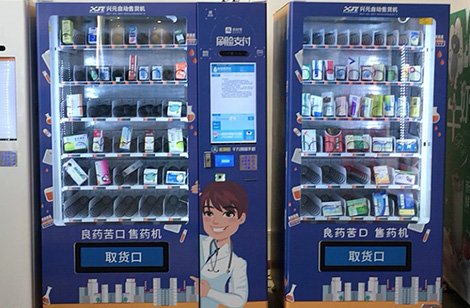

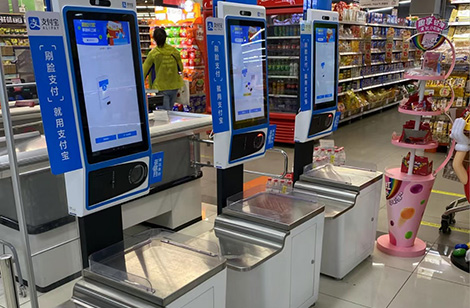

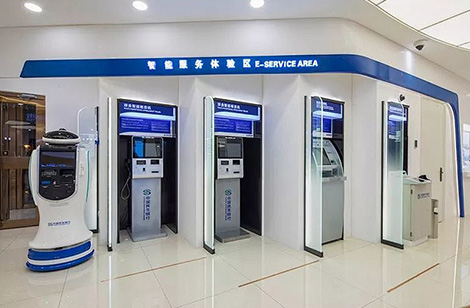

Usage scenario	Self service terminals for indoor use
Printing speed	90MM/S
Product Usage	Thermal label/ticket printing in various fields

Data Download

Document name

Update Time：2022-11-28

File Size:9 KB

File Format:doc

Download

Common Problem

How to connect the serial port of the printer?

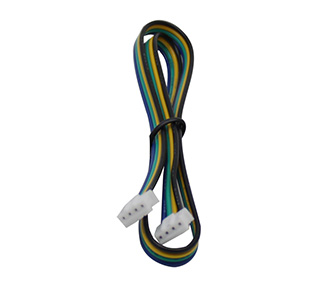

All of our integrated printers (products that need to be integrated into the device) have a 232serial port or TTL serial port with 4 pins, defined as TX, RX, GND, and DTR. Currently, theactual amount of data printed is not large, usually using 3 lines, which are TX, RX, and GND
After using the printer for a period of time, it may not print clearly. ls there no ink left?

No, this type of thermosensitive printer does not require consumables such as ink, toner, orribbons. The color development principle relies on the printer's movement heating to make thethermosensitive paper, and the color development agent on top of it produces the color thatwe see as a small ticket. The reason for unclear printing of thermal printers is mostly relatedto the thermal color agent coating of thermal paper. However, cheap thermal paper on themarket has poor thermal color agent, resulting in blurry printing and short retention time ofhandwriting. Generally, the handwriting will fade and disappear after 3-6 months. Long termthermal paper uses imported thermal color agent, which can print clearly and retain Japanesehandwriting for a relatively long time (1-3 years). Attention: Due to the chemical properties ofthermosensitive colorants, thermosensitive paper should be stored away from light, water.and high temperatures to avoid failure.
What is the situation of unclear printing effect?

1. First, troubleshoot the issue with the printer itself. Open the paper compartment cover andcheck for dirt on the rollers and print head. lf not, troubleshoot the issue. lf so, gently clean itup! 2. Check if there is moisture on the paper roll. lf not, it can also be ruled out! 3. lt's just thatthe current of the power supply is not enough, and there is a possibility of virtual calibration.
Do I need to install a driver when printing via USB on a computer?

If necessary, you can control printing through the USB on the computer side. You need to install a printer driver, and then call the original driver to print when the software controls, just like the principle of calling the local laser printer or inkjet printer after the WORD is edited! Using driver printing, there is no need to worry about the printer's instruction manual, but using driver printing and some of the printer's status feedback functions may not be able to communicate well with the software layer!
