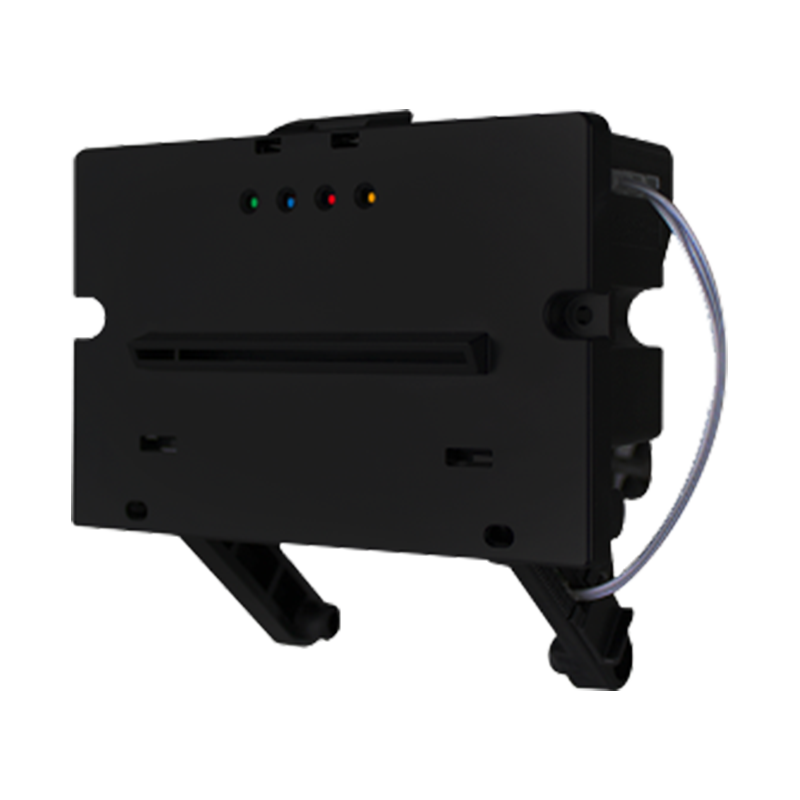

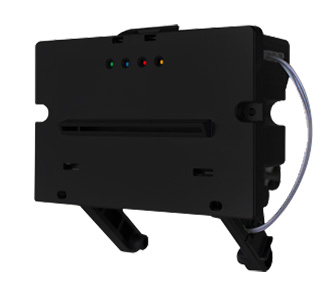

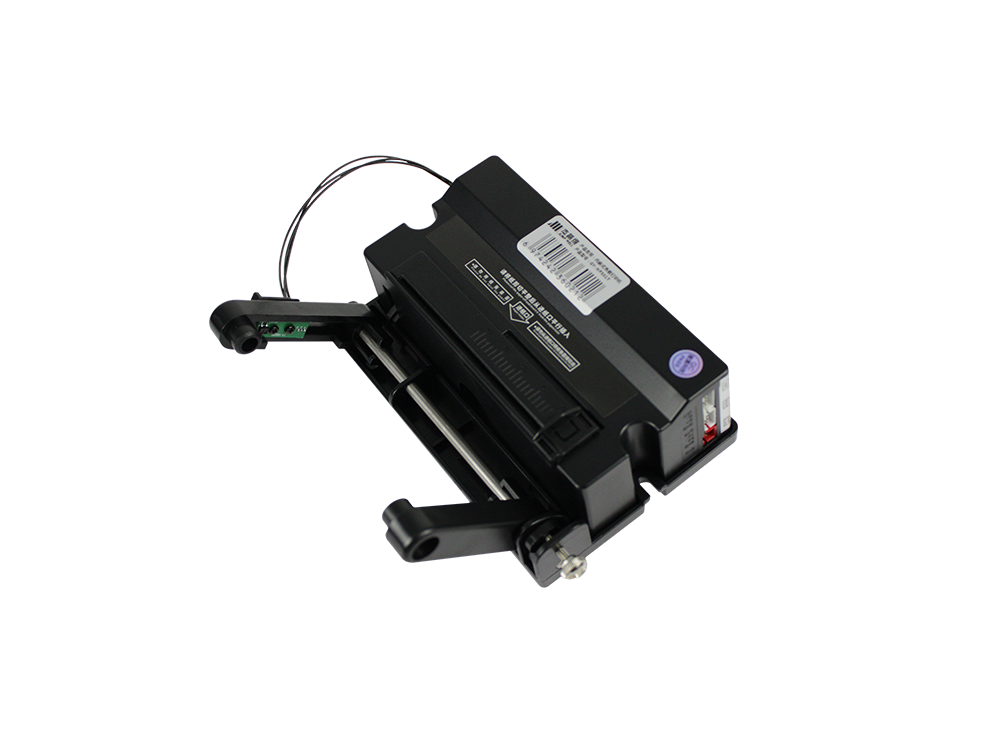

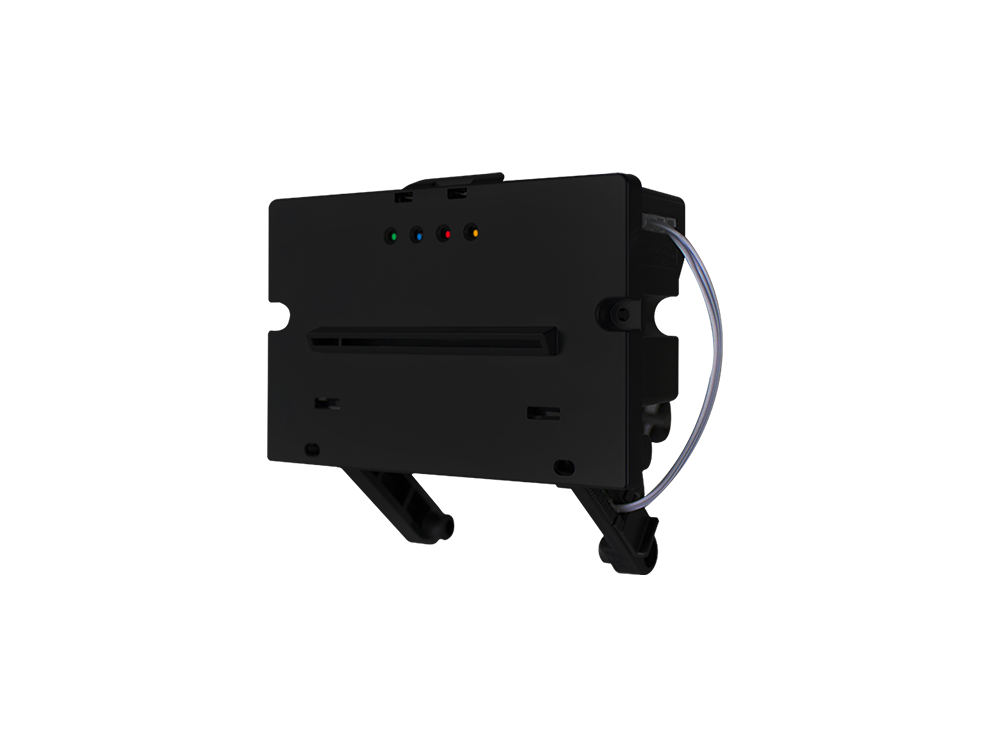

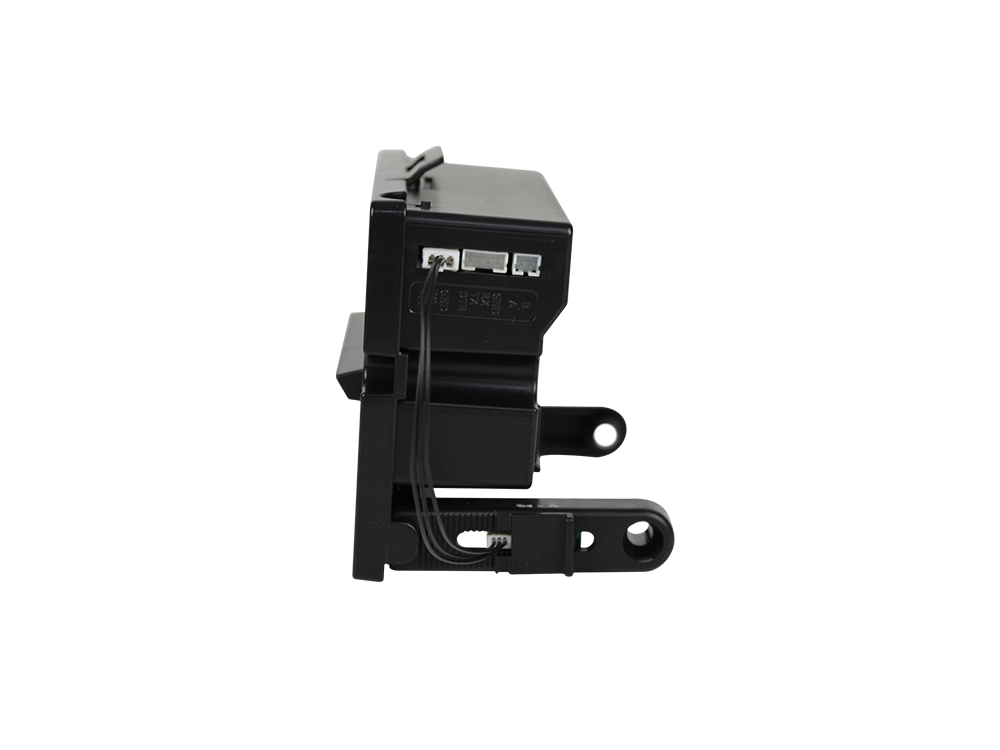

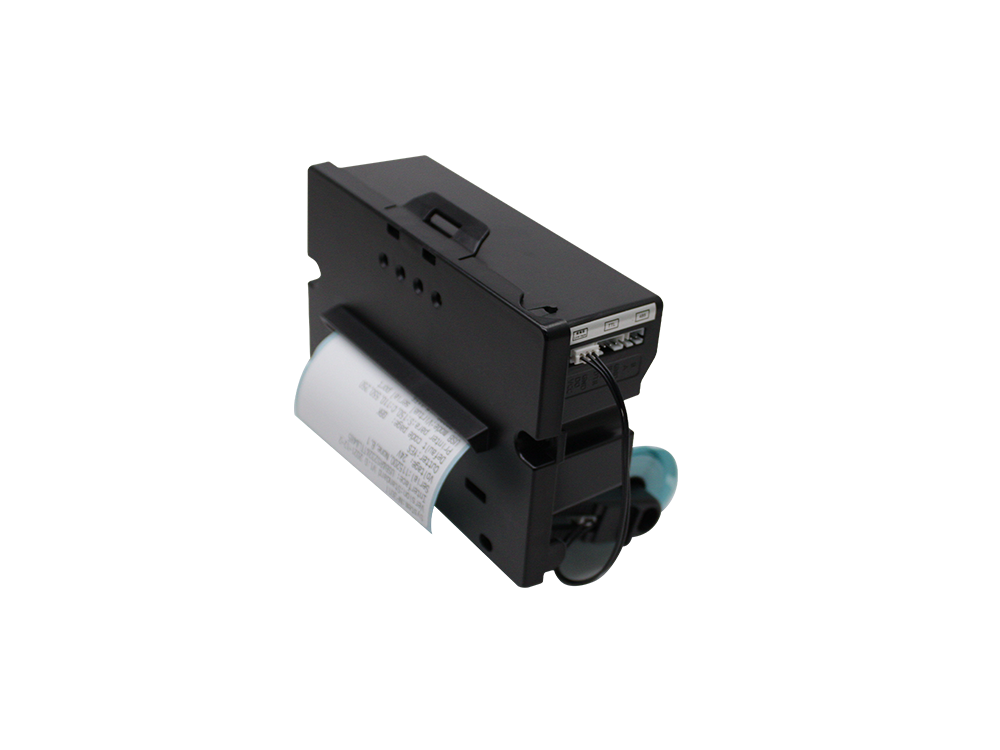

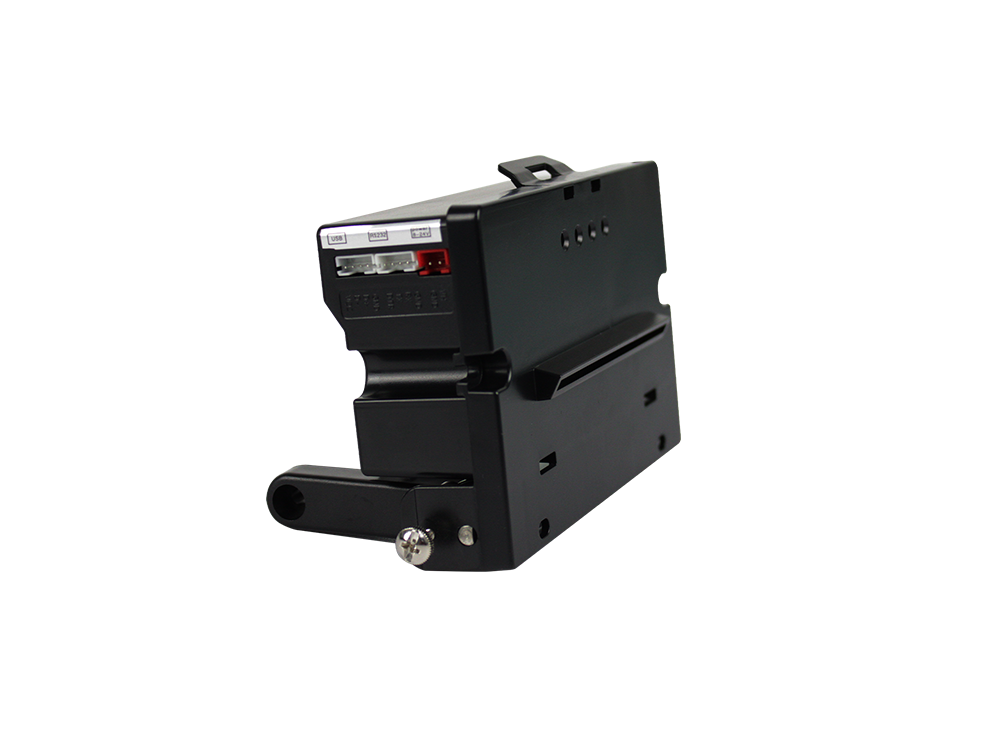

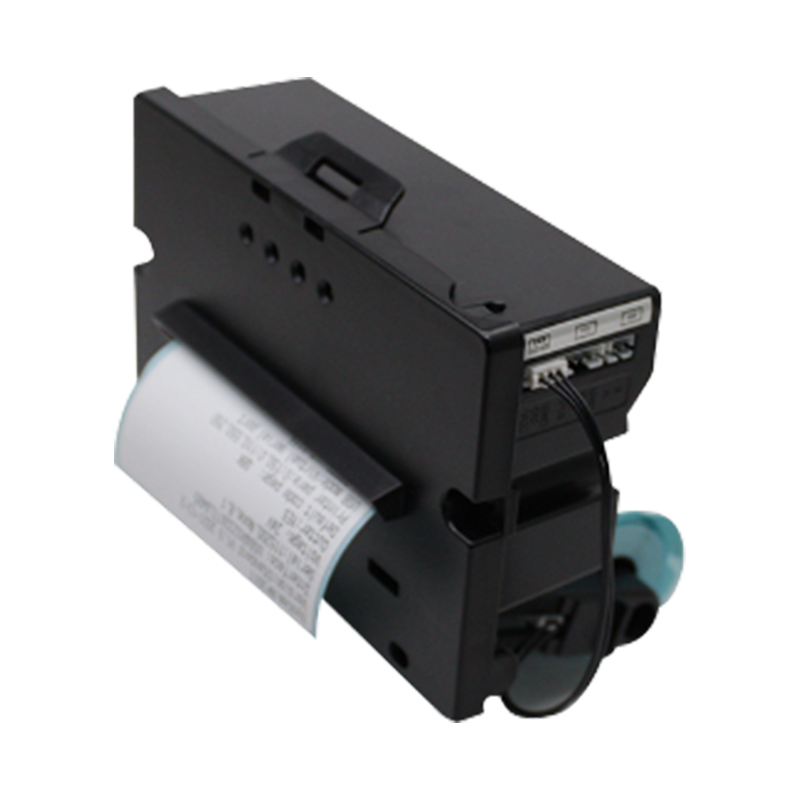

80MM embedded thermal printer

This is an embedded label printer specially developed for various SCM/Android system/computer terminal control applications in industrial manufacturing and intelligent weighing scales. It is small in size, stable in performance and strong in scalability.

Printing type:Ticket/tag switchable mode

Specification parameters:24V voltage supply

Communication interface:RS232+TTL+USB+485 interface

Product Usage:Thermal label/ticket printing in various fields

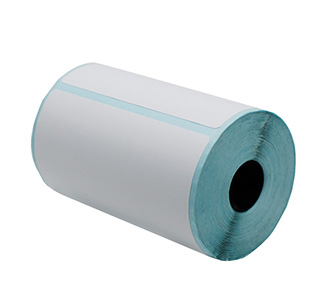

Product features:Support status reply function, automatic paper cutting (half cut/full cut), 80MM large paper bin, adjustable width of 40-80MM labels, and rear paper loading structure design (automatic paper feeding)

Secondary development:Supports Linux Android、PLC、 Raspberry pie Windows、 Microcontroller and other control printing

: 80MM embedded thermal printer

This is a delicate, compact, and aesthetically pleasing 58MM embedded thermal printer that supports RS232+USB+TTL+485 interfaces, as well as controlling printing on Linux, Android, Windows XP~10, PLC, Raspberry Pi, microcontroller, and more. It has a convenient and fast self suction paper method, which is easy to use and easy to maintain. It is widely used, such as self-service sales terminals; Intelligent garbage collection; Self service ticket collection terminal; Self service ordering terminal; Scenarios such as self-service terminals.

: 80MM embedded thermal printer

This is a delicately designed, compact, and aesthetically pleasing 58MM embedded thermal printer with dual mode label/ticket printing for use in different scenarios. It has low printing sound, fast printing speed, clear printing, and does not require carbon, color, or ink. It is printed using thermal technology and is powered by a 9-24V wide voltage. The power interface supports short circuit protection; Reverse connection protection; Overvoltage protection.

Parameter

Basic information
Product name	GY-NP301T
Printing type	Ticket/tag switchable mode
communication interface	RS232+TTL+USB+485 interface
Appearance dimensions	136.392.370.1MM
Printing speed	150MM/S
Product Usage	Thermal label/ticket printing for various fields
Usage scenarios	Unmanned self-service equipment
Specification parameters	24V voltage supply
Product features	Support status reply function, automatic paper cutting (half cut/full cut), 80MM large paper bin, adjustable width of 40-80MM labels, and rear paper loading structure design (automatic paper feeding)
Secondary development	Supports Linux Android、PLC、 Raspberry pie Windows、 Microcontroller and other control printing

Data Download

Document name

Update Time：2024-06-26

File Size:9 KB

File Format:doc

Download

Common Problem

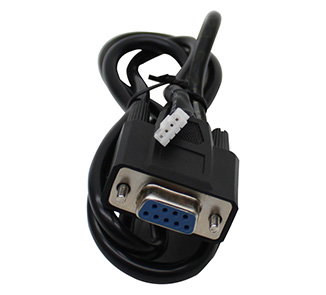

How to connect the serial port of the printer?

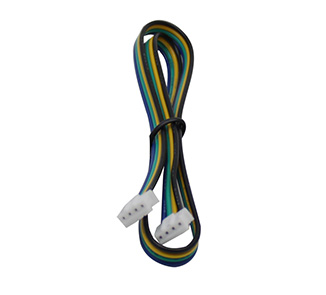

All of our integrated printers (products that need to be integrated into the device) have a232serial port or TTL serial port with 4 pins, defined as TX, RX, GND, and DTR. Currentlytheactual amount of data printed is not large, usually using 3 lines, which are TX, RX. andGND
After using the printer for a period of time, it may not print clearly. ls there no ink left?

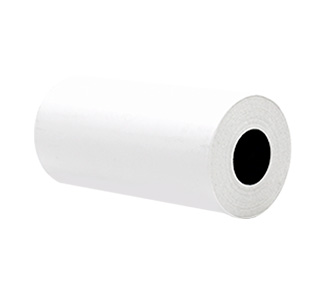

No, this type of thermosensitive printer does not require consumables such as ink, toner.orribbons. The color development principle relies on the printer's movement heating to makethethermosensitive paper, and the color development agent on top of it produces the colorthatwe see as a small ticket. The reason for unclear printing of thermal printers is mostlyrelatedto the thermal color agent coating of thermal paper. However, cheap thermal paper onthemarket has poor thermal color agent, resulting in blurry printing and short retention time
What is the situation of unclear printing effect?

1. First, troubleshoot the issue with the printer itself. Open the paper compartment coverandcheck for dirt on the rollers and print head. lf not, troubleshoot the issue. lf so, gently cleanitup! 2. Check if there is moisture on the paper roll. lf not, it can also be ruled out! 3. it's justthatthe current of the power supply is not enough, and there is a possibility of virtual

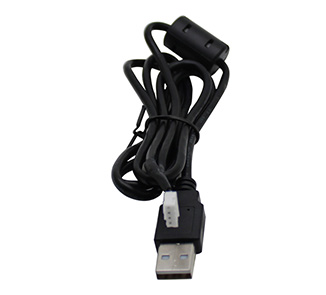

Do l need to install a driver when printing via USB on a computer?

lf necessary, you can control printing through the USB on the computer side. You need toinstall a printer driver, and then call the original driver to print when the software controls, justlike the principle of calling the local laser printer or inkjet printer after the WORD is edited!Using driver printing, there is no need to worry about the printer's instruction manual, but
