Compact Embedded Thermal Printer price

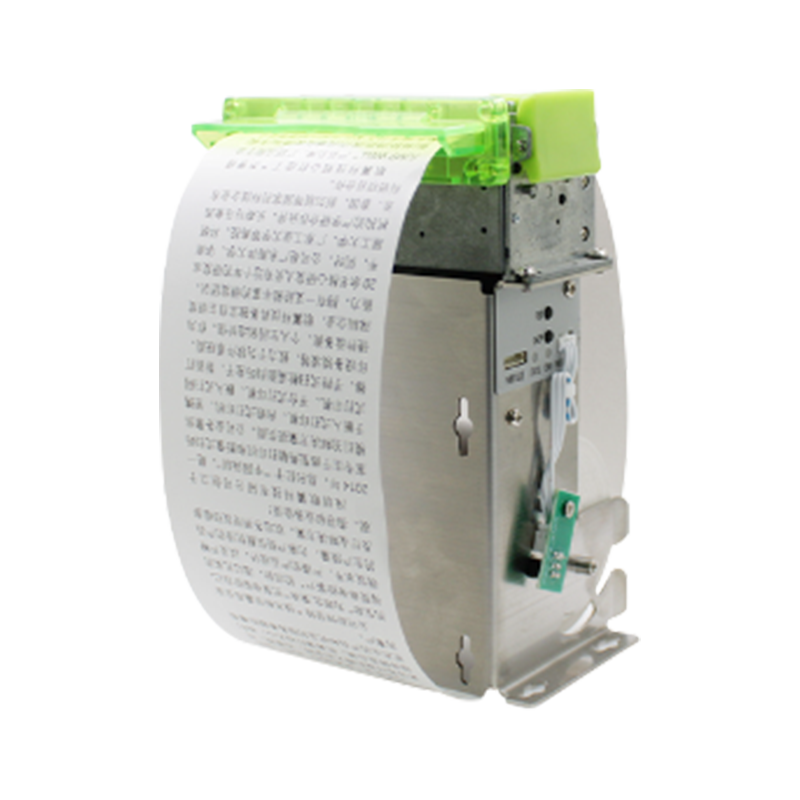

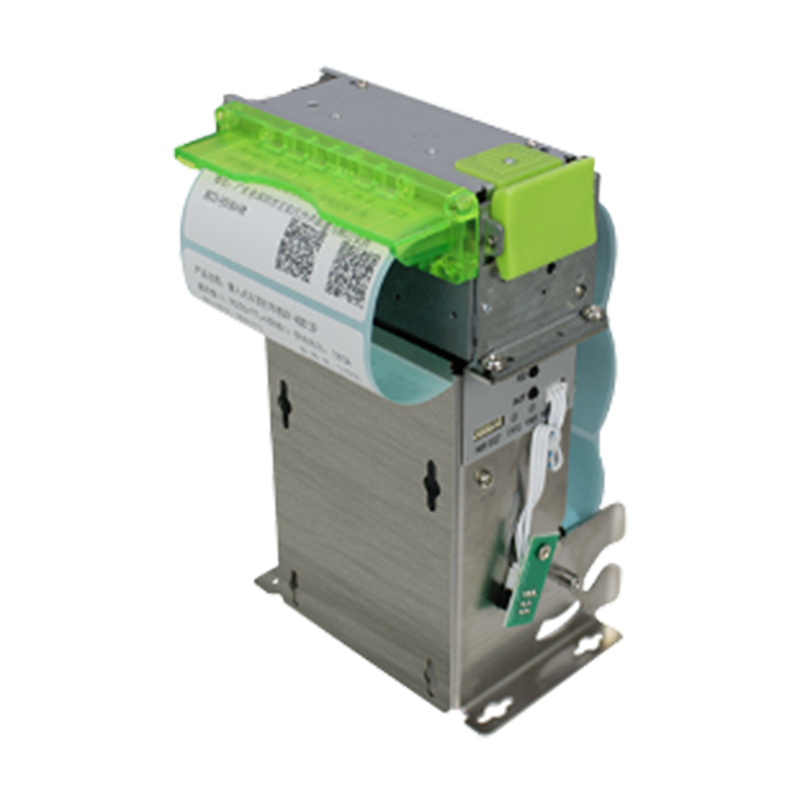

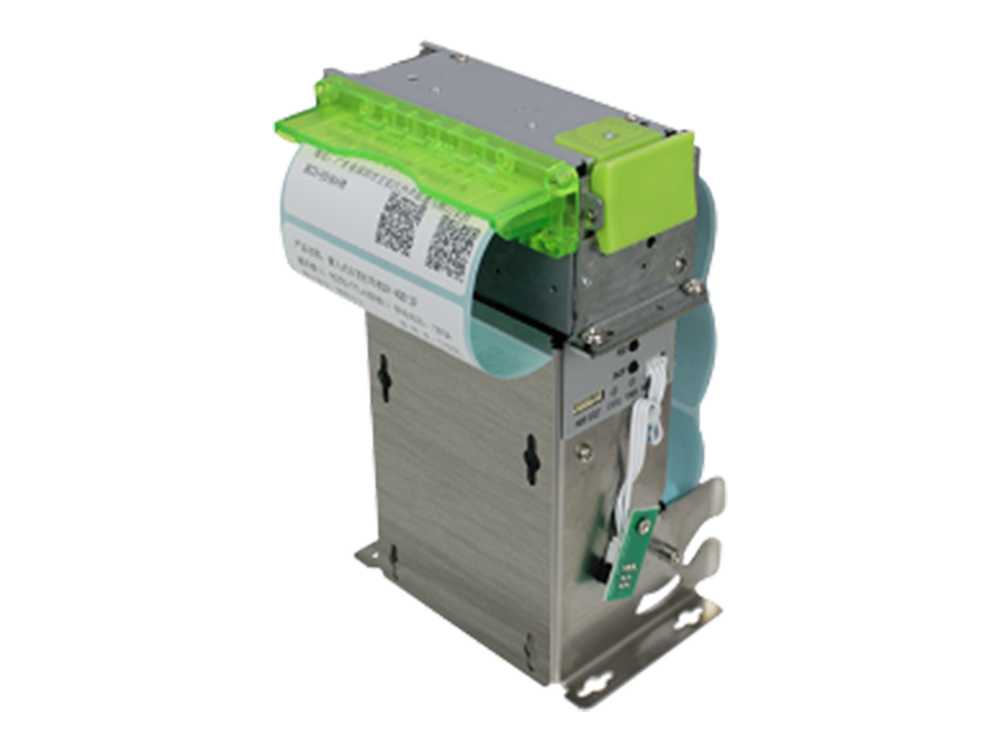

80MM embedded thermal printing module

This is an embedded label printer specially developed for various SCM/Android system/computer terminal control applications in industrial manufacturing and intelligent weighing scales. It is small in size, stable in performance and strong in scalability.

Specification parameters:24V-3A

communication interface:RS232/TTL+USB+485 interface

Printing type:Three types of printing: receipt, label, and black label paper

Secondary development:Supports controlling printing on Linux, Android, PLc, Raspberry Pi, Windows, microcontrollers, and more

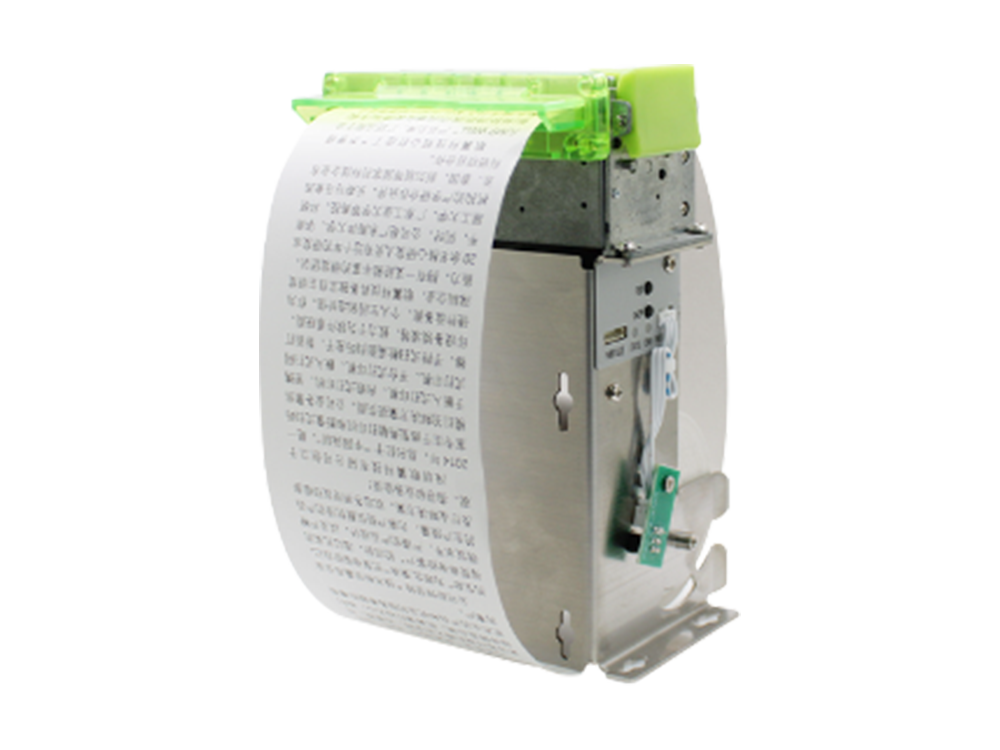

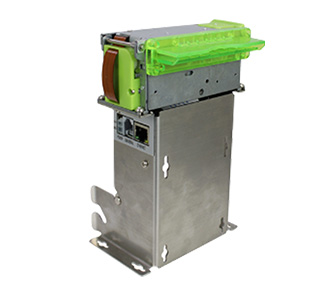

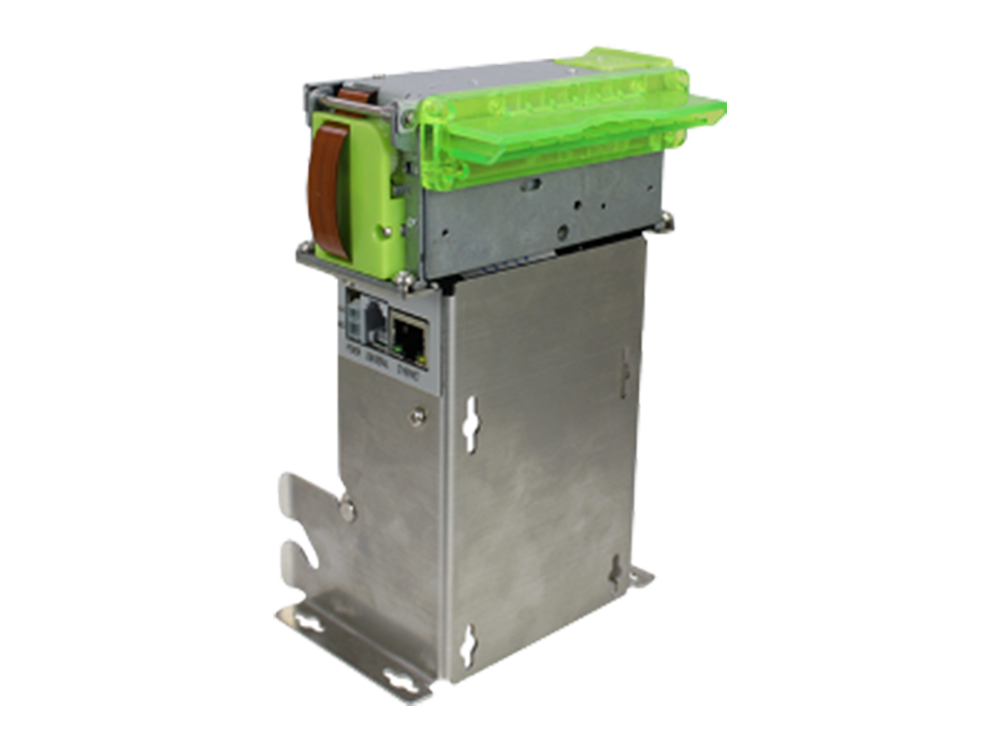

80MM embedded thermal printing module

80MM embedded thermal printing module

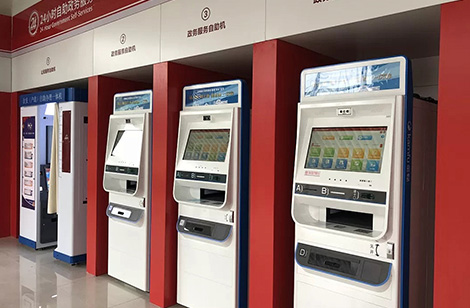

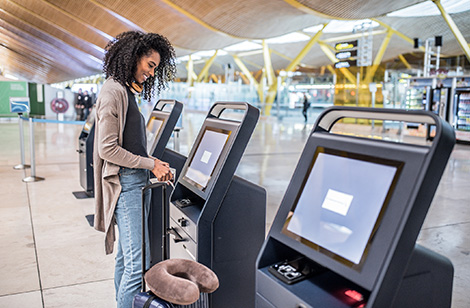

This is an 80MM built-in thermal printing module for a self-service queuing and calling machine. It does not require carbon tape, ink, or color bands, and thermal technology printing. It has fast printing speed, saves you every minute and second, clear printing, and a large paper compartment, eliminating the need for frequent paper changes.

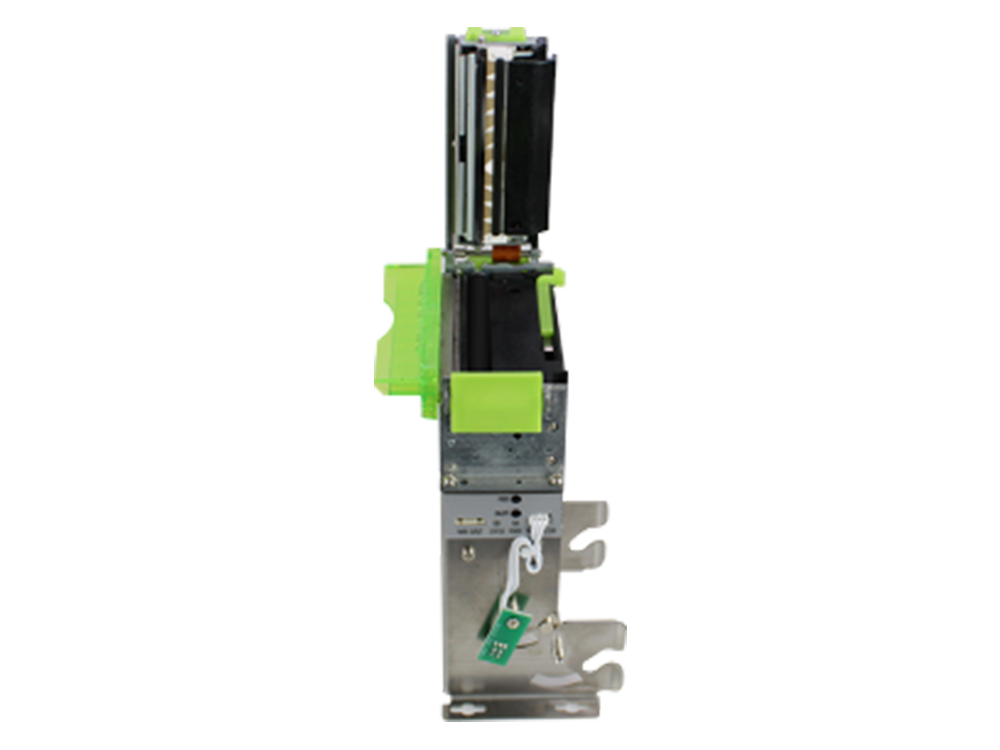

80MM embedded thermal printing module

80MM embedded thermal printing module

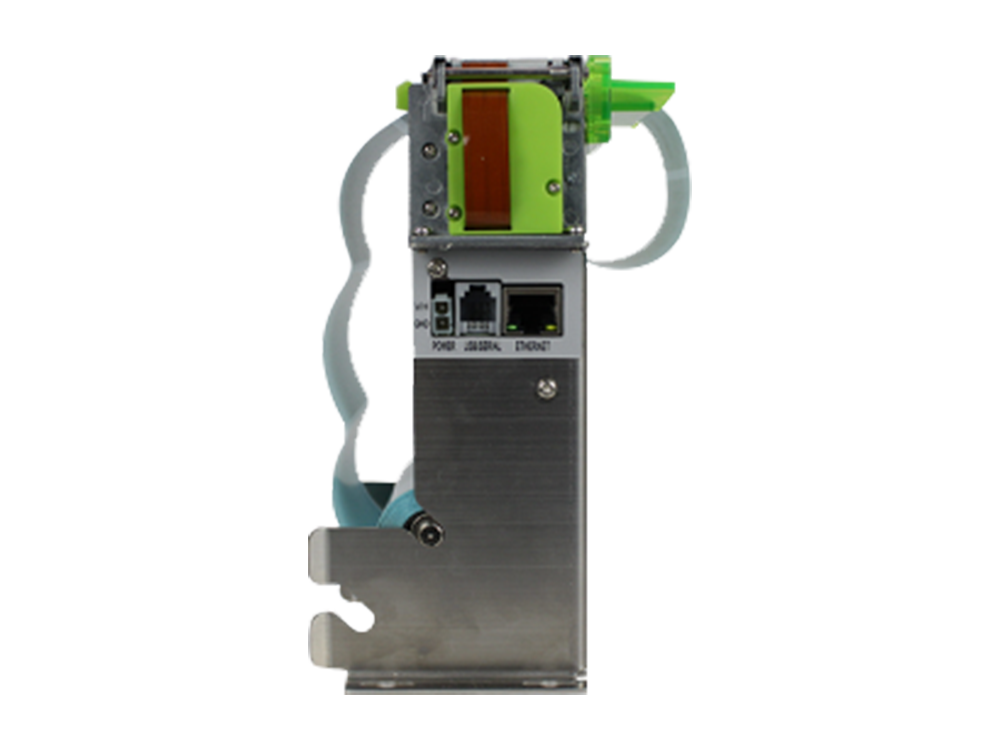

It can print receipts/label paper/black logo printing, and the three printing modes aremore widely used.Supports secondary development ofmicrocontrollers/Android/Windows/Raspberry Pi/touch screen/PLC, supportsUSB/RS232+LAN interface, and supports 24V-3A power supply printing.

Video introduction

80MM embedded thermal printing module
80MM embedded thermal printing module

Parameter

Basic information
Product name GY-NQB301
Printing type Three types of printing: receipt, label, and black label paper
Specification parameters 24V-3A wide voltage power supply
Printing speed 200MM/S
Appearance dimensions 180*95*102
Secondary development Supports microcontroller/Android/Windows/Raspberry Pi

Details Of Accessories

80MM embedded thermal printing module

Standard Accessories

printer*1

printer*1

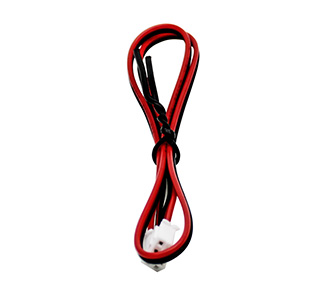

2PIN power cord

2PIN power cord

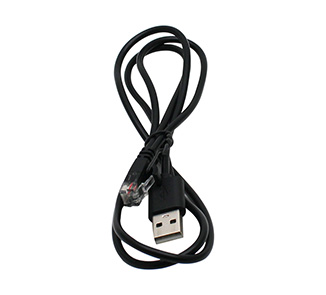

USB to Crystal Head Cable

USB to Crystal Head Cable

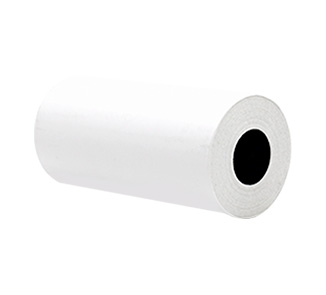

80x40 thermal sensitive small ticket paper roll

80x40 thermal sensitive small ticket paper roll

80x40 thermal sensitive small ticket paper roll

Optional Accessories

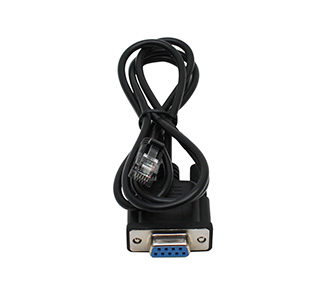

DB9 to Crystal Head Serial Data Cable

DB9 to Crystal Head Serial Data Cable

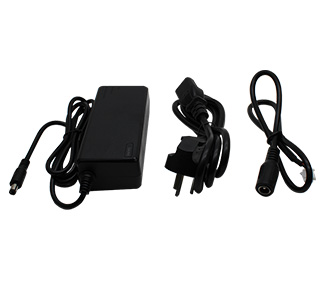

24V2.5A power adapter+Pinzi triangle power cord+XH2.54 2PIN DC power cord

24V2.5A power adapter+Pinzi triangle power cord+XH2.54 2PIN DC power cord

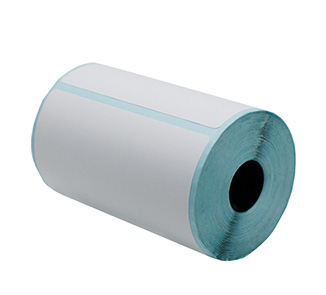

77x45x280 thermal label paper roll

77x45x280 thermal label paper roll

Data Download

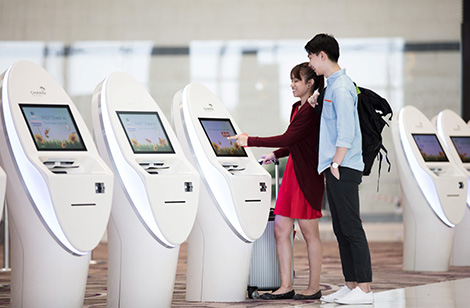

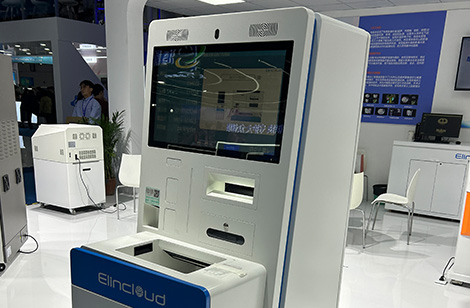

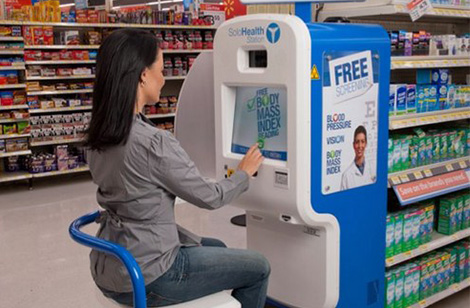

Application Area

Common Problem

  • How to connect the serial port of the printer?

    All of our integrated printers (products that need to be integrated into the device) have a232serial port or TTL serial port with 4 pins, defined as TX, RX, GND, and DTR. Currentlytheactual amount of data printed is not large, usually using 3 lines, which are TX, RX. andGND
  • After using the printer for a period of time, it may not print clearly. ls there no ink left?

    No, this type of thermosensitive printer does not require consumables such as ink, toner.orribbons. The color development principle relies on the printer's movement heating to makethethermosensitive paper, and the color development agent on top of it produces the colorthatwe see as a small ticket. The reason for unclear printing of thermal printers is mostlyrelatedto the thermal color agent coating of thermal paper. However, cheap thermal paper onthemarket has poor thermal color agent, resulting in blurry printing and short retention time
  • What is the situation of unclear printing effect?

    1. First, troubleshoot the issue with the printer itself. Open the paper compartment coverandcheck for dirt on the rollers and print head. lf not, troubleshoot the issue. lf so, gently cleanitup! 2. Check if there is moisture on the paper roll. lf not, it can also be ruled out! 3. it's justthatthe current of the power supply is not enough, and there is a possibility of virtual
  • Do l need to install a driver when printing via USB on a computer?

    lf necessary, you can control printing through the USB on the computer side. You need toinstall a printer driver, and then call the original driver to print when the software controls, justlike the principle of calling the local laser printer or inkjet printer after the WORD is edited!Using driver printing, there is no need to worry about the printer's instruction manual, but
