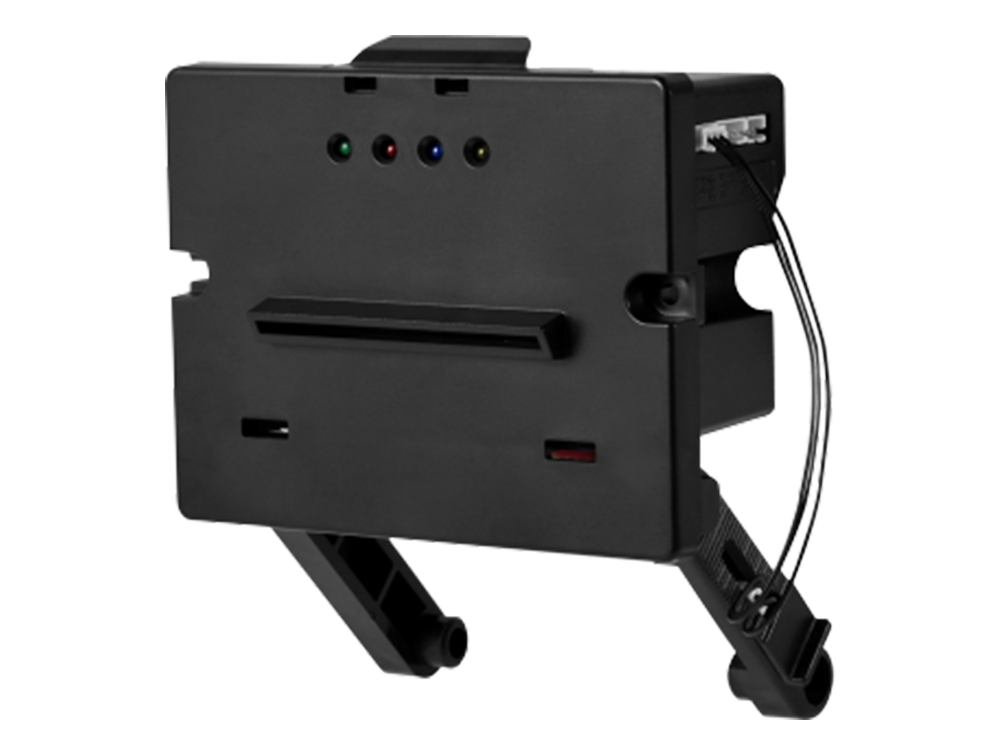

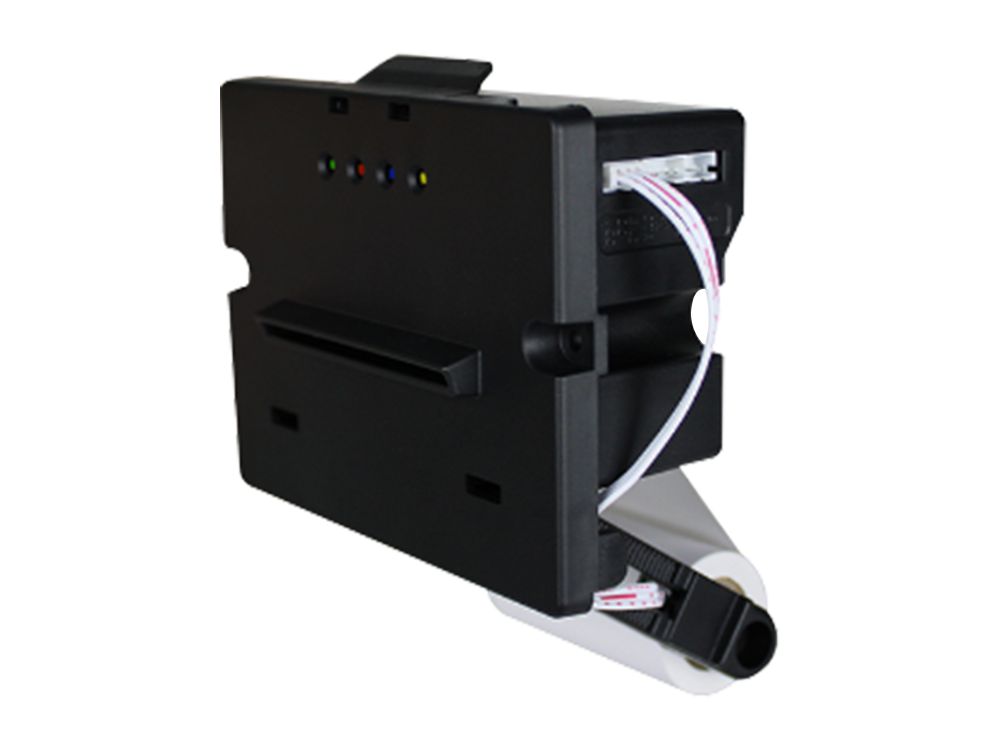

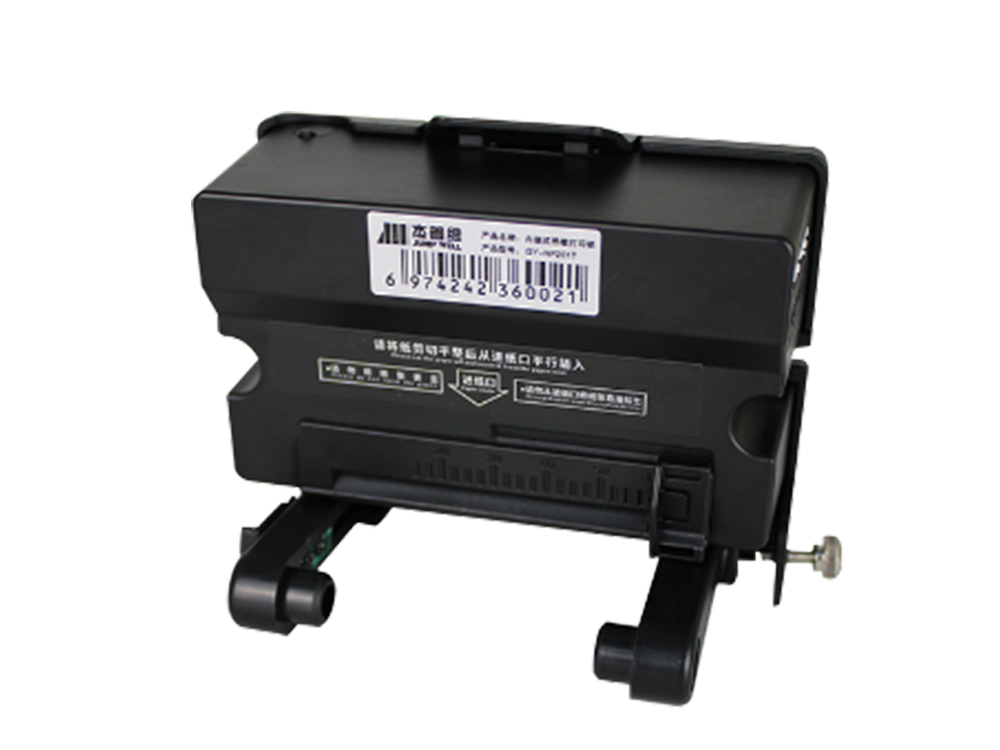

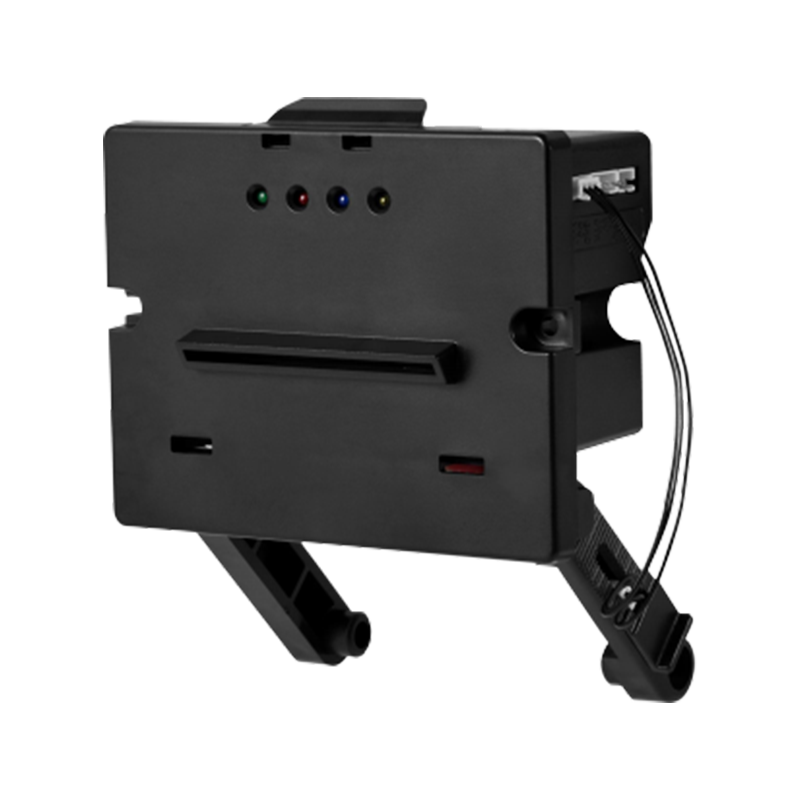

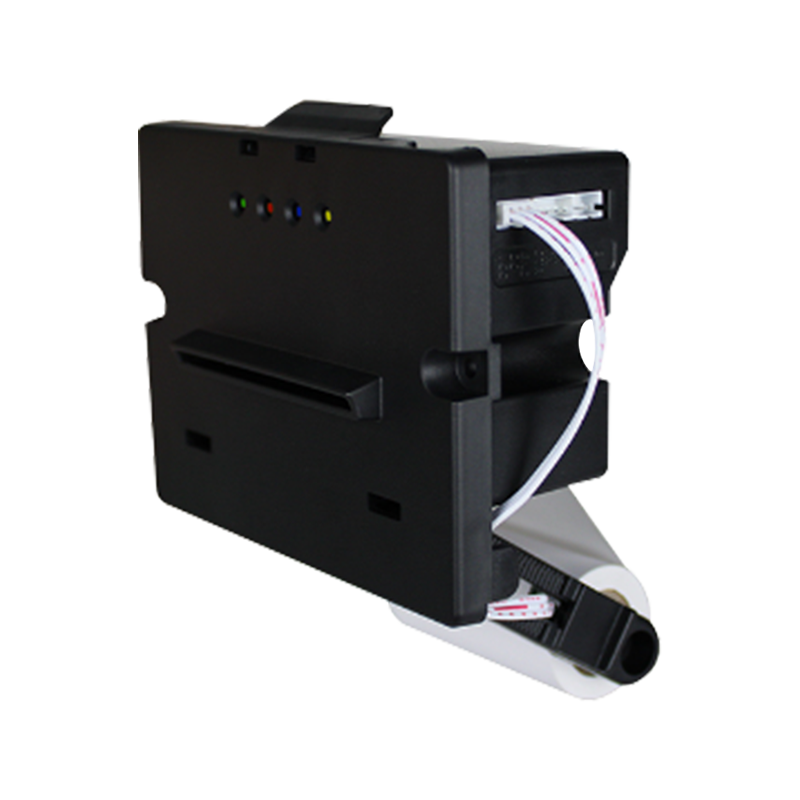

GY-NP201T

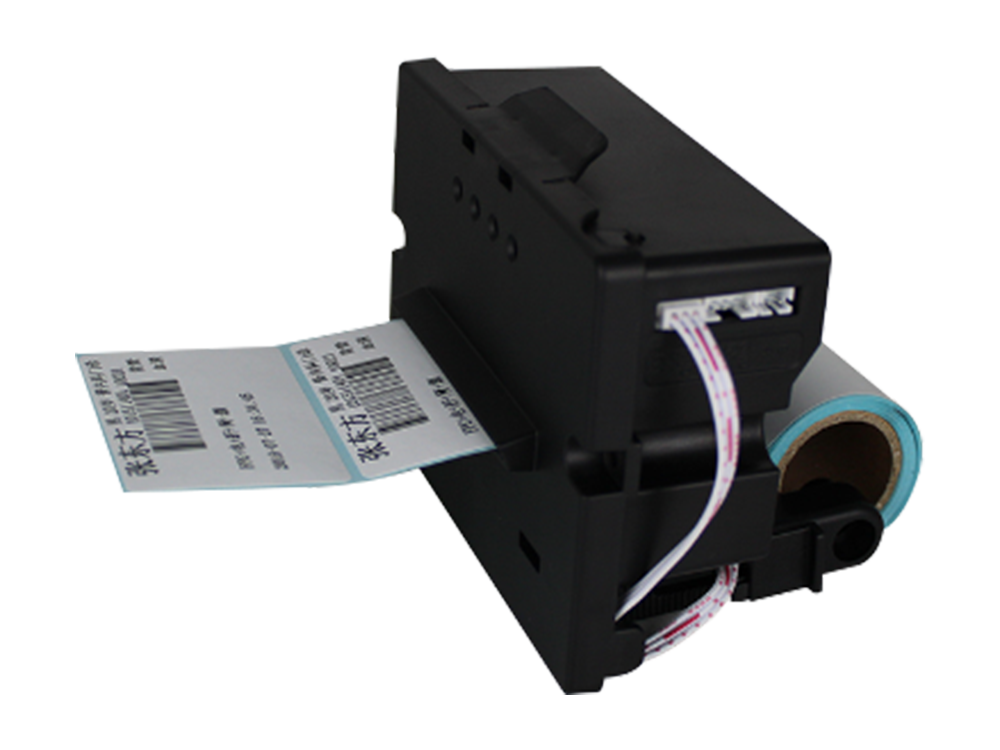

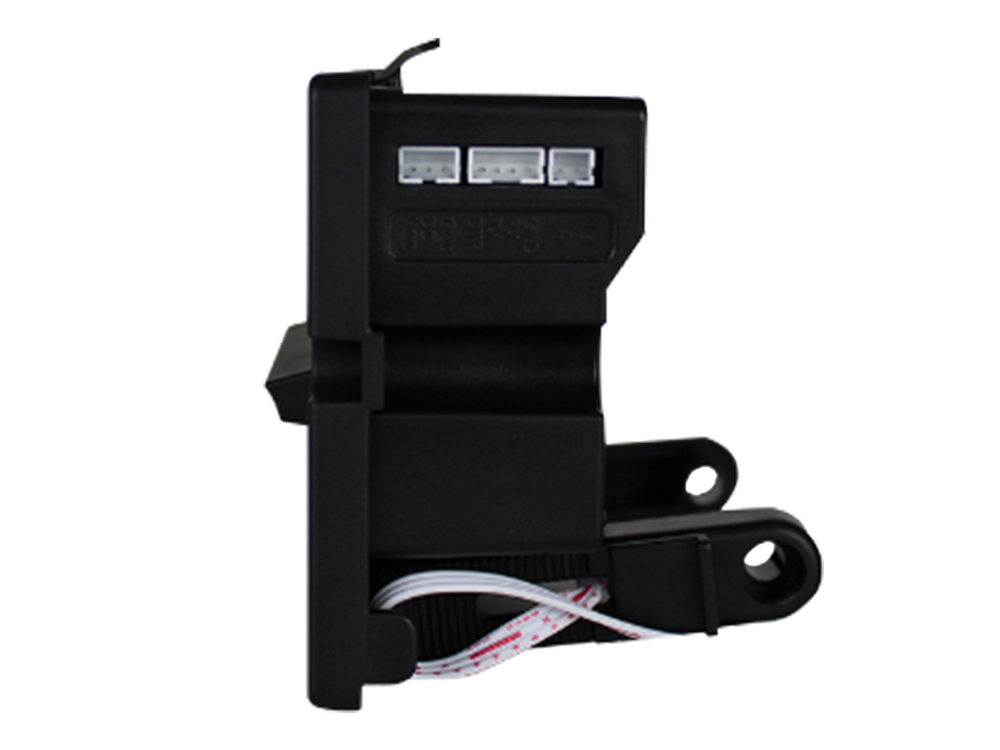

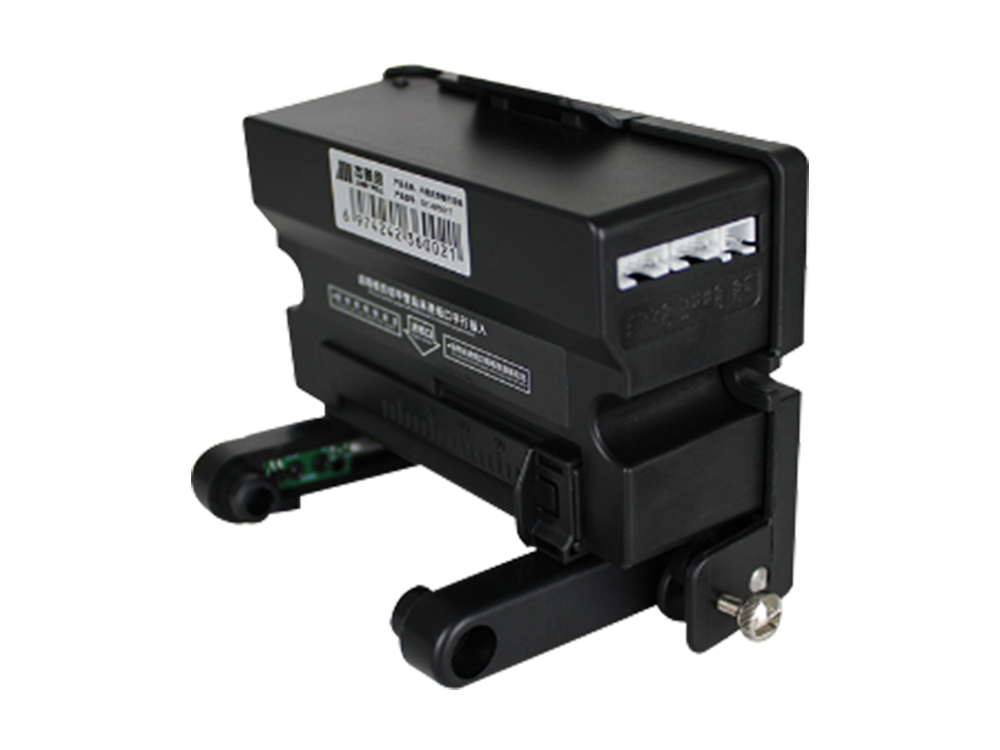

58MM embedded thermal printer

This is a self-designed, highly integrated, and stable 58MM embedded thermal printer. It has a delicate, compact, and aesthetically pleasing appearance. It supports dual mode printing of labels and receipts, meeting your needs in different scenarios. Adopting 9-24V wide voltage power supply, the power interface supports short circuit protection; Reverse connection protection; Overvoltage protection, etc. The machine comes with a cutting knife and paper detection function, making unmanned equipment more intelligent.

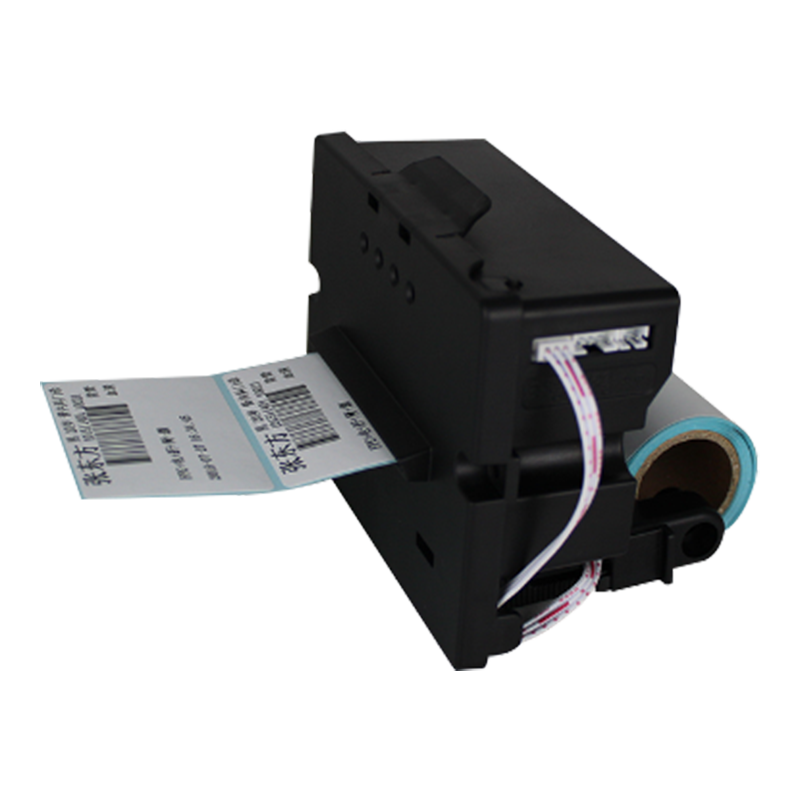

Supports dual printing of receipts/labels

Multiple communication interfaces support RS232, TTL, USB, and 485 connection methods

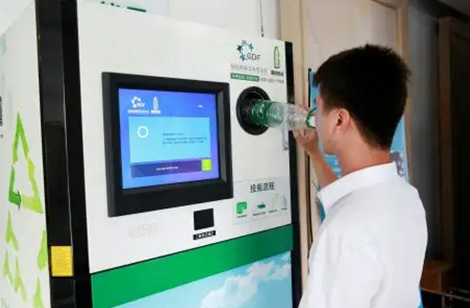

Self service sales terminals in the application field; Intelligent garbage collection; Self service ticket collection terminal; Self service ordering terminal; Self service terminal

Equipped with 9-24V wide voltage power supply, low noise, and high-quality printing

Supports controlling printing on Linux, Android, Windows XP~10, PLC, Raspberry Pi, microcontroller, etc

: 58MM embedded thermal printer

This is a delicate, compact, and aesthetically pleasing 58MM embedded thermal printer that supports RS232+USB+TTL+485 interfaces, as well as controlling printing on Linux, Android, Windows XP~10, PLC, Raspberry Pi, microcontroller, and more. It has a convenient and fast self suction paper method, which is easy to use and easy to maintain. It is widely used, such as self-service sales terminals; Intelligent garbage collection; Self service ticket collection terminal; Self service ordering terminal; Scenarios such as self-service terminals.

: 58MM embedded thermal printer

This is a delicately designed, compact, and aesthetically pleasing 58MM embedded thermal printer with dual mode label/ticket printing for use in different scenarios. It has low printing sound, fast printing speed, clear printing, and does not require carbon, color, or ink. It is printed using thermal technology and is powered by a 9-24V wide voltage. The power interface supports short circuit protection; Reverse connection protection; Overvoltage protection.

Parameter

Basic information
Product name	GY-NP201T
Printing type	Ticket/tag switchable mode
Specification parameters	9-24V wide voltage
Communication interface	RS232+TTL+USB+485
Appearance dimensions	113.690.870.1MM
Usage scenario	100MM/S
Product Usage	Thermal label/ticket printing in various fields
Secondary development	Supports controlling printing on Linux, Android, PLC, Raspberry Pi, Windows, microcontrollers, and more
Print width	48MM effective printing width
Resolution	203DPI 8 points/MM 0.125MM/point 384 points per line

Data Download

Document name

Update Time：2022-11-28

File Size:9 KB

File Format:doc

Download

Common Problem

How to connect the serial port of the printer?

All of our integrated printers (products that need to be integrated into the device) have a232serial port or TTL serial port with 4 pins, defined as TX, RX, GND, and DTR. Currentlytheactual amount of data printed is not large, usually using 3 lines, which are TX, RX. andGND
After using the printer for a period of time, it may not print clearly. ls there no ink left?

No, this type of thermosensitive printer does not require consumables such as ink, toner.orribbons. The color development principle relies on the printer's movement heating to makethethermosensitive paper, and the color development agent on top of it produces the colorthatwe see as a small ticket. The reason for unclear printing of thermal printers is mostlyrelatedto the thermal color agent coating of thermal paper. However, cheap thermal paper onthemarket has poor thermal color agent, resulting in blurry printing and short retention time
What is the situation of unclear printing effect?

1. First, troubleshoot the issue with the printer itself. Open the paper compartment coverandcheck for dirt on the rollers and print head. lf not, troubleshoot the issue. lf so, gently cleanitup! 2. Check if there is moisture on the paper roll. lf not, it can also be ruled out! 3. it's justthatthe current of the power supply is not enough, and there is a possibility of virtual
Do l need to install a driver when printing via USB on a computer?

lf necessary, you can control printing through the USB on the computer side. You need toinstall a printer driver, and then call the original driver to print when the software controls, justlike the principle of calling the local laser printer or inkjet printer after the WORD is edited!Using driver printing, there is no need to worry about the printer's instruction manual, but

GY-NP201T

58MM embedded thermal printer

58MM embedded thermal printer

58MM embedded thermal printer

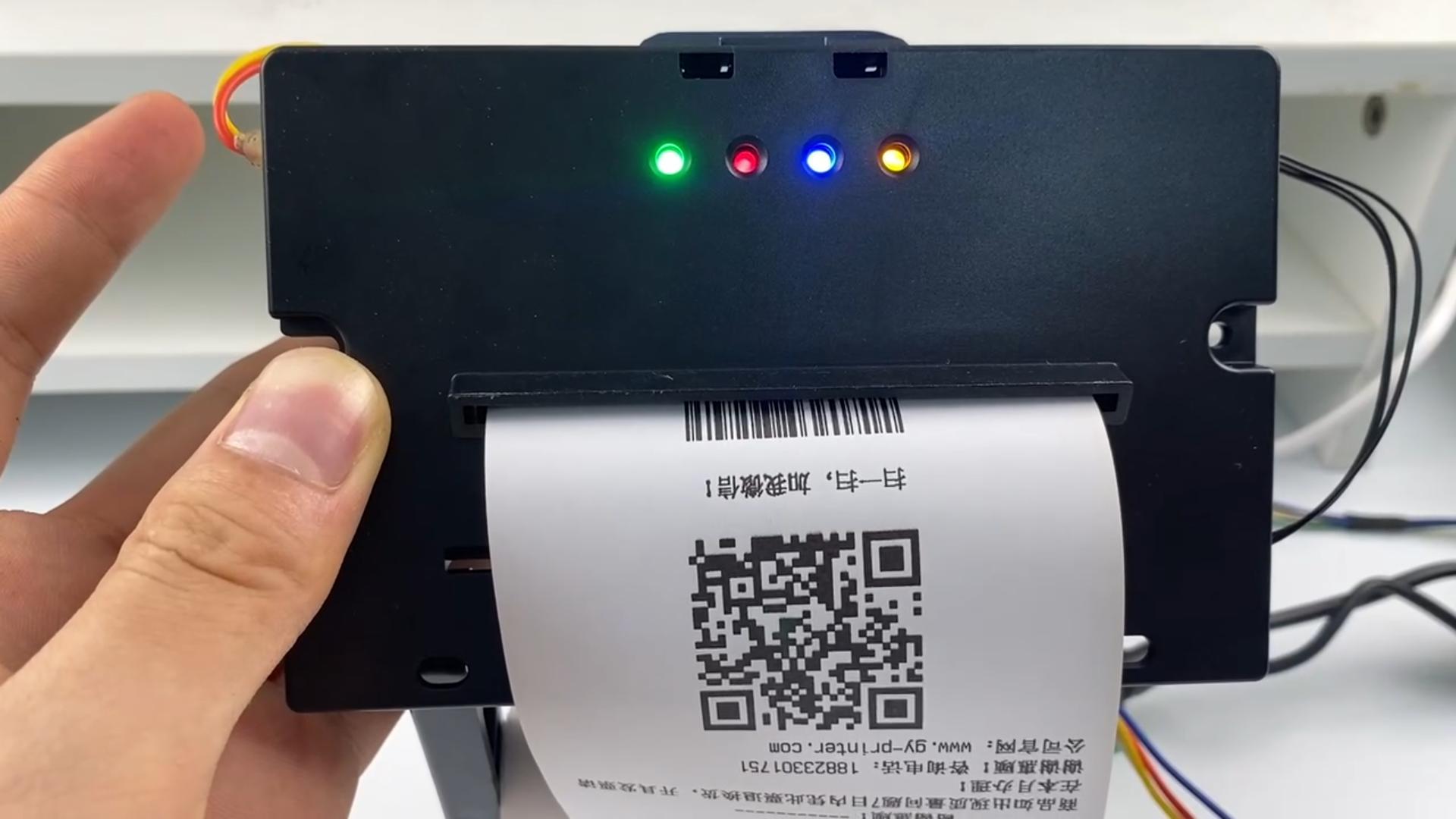

Video introduction

Parameter

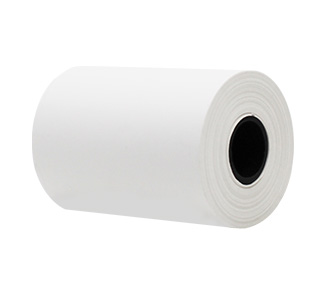

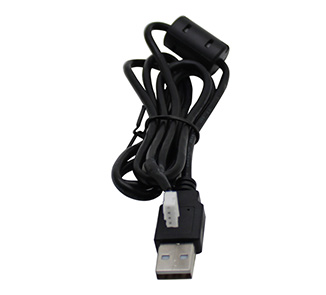

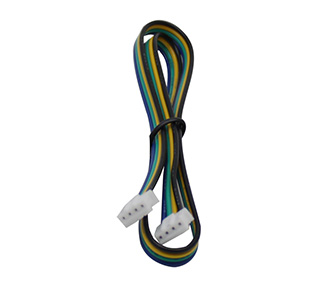

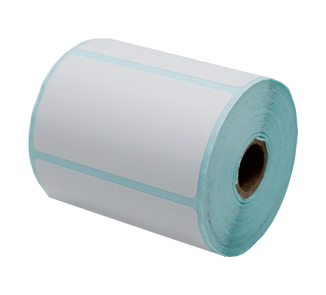

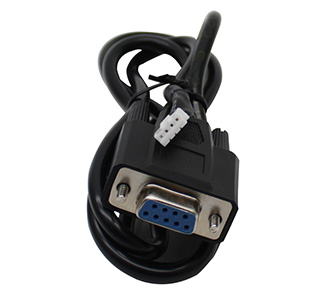

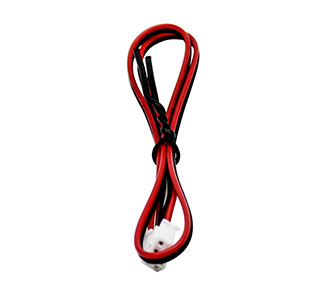

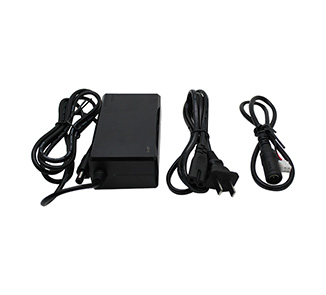

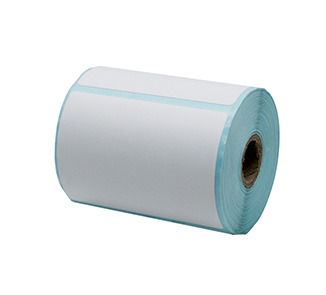

Details Of Accessories

Data Download

Document name

Download

Document name

Download

Document name

Download

Document name

Download

Document name

Download

Document name

Download

Application Area

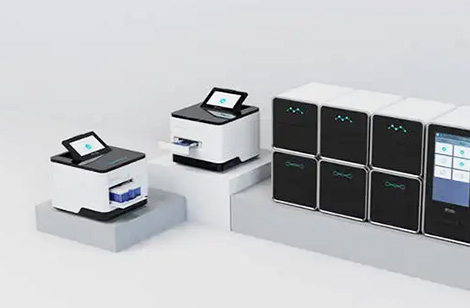

Medical testing instrument

Intelligent medical waste recovery

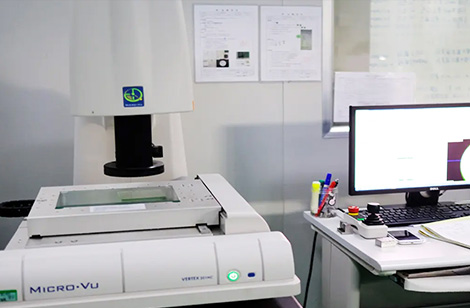

Testing instruments and equipment

Common Problem

How to connect the serial port of the printer?

After using the printer for a period of time, it may not print clearly. ls there no ink left?

What is the situation of unclear printing effect?

Do l need to install a driver when printing via USB on a computer?

Product Recommendation

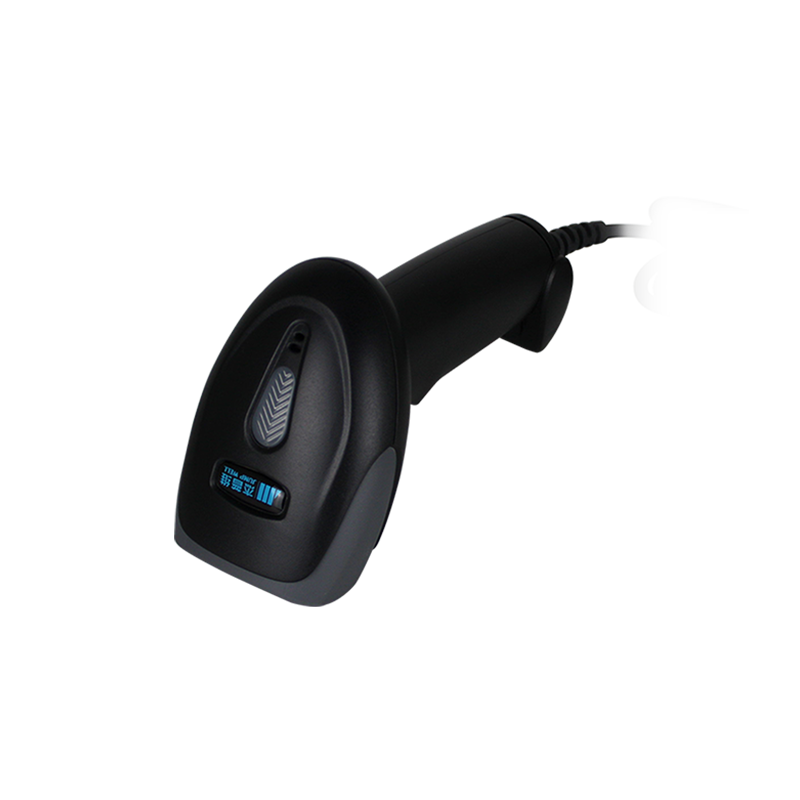

GY-HTS01Y

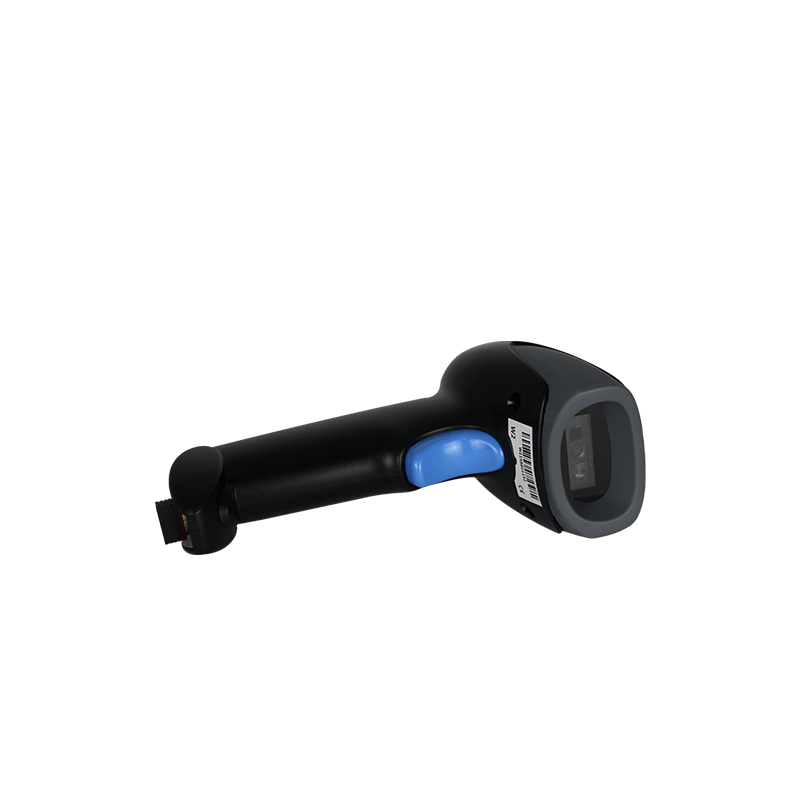

Commercial handheld wired barcode scanner
