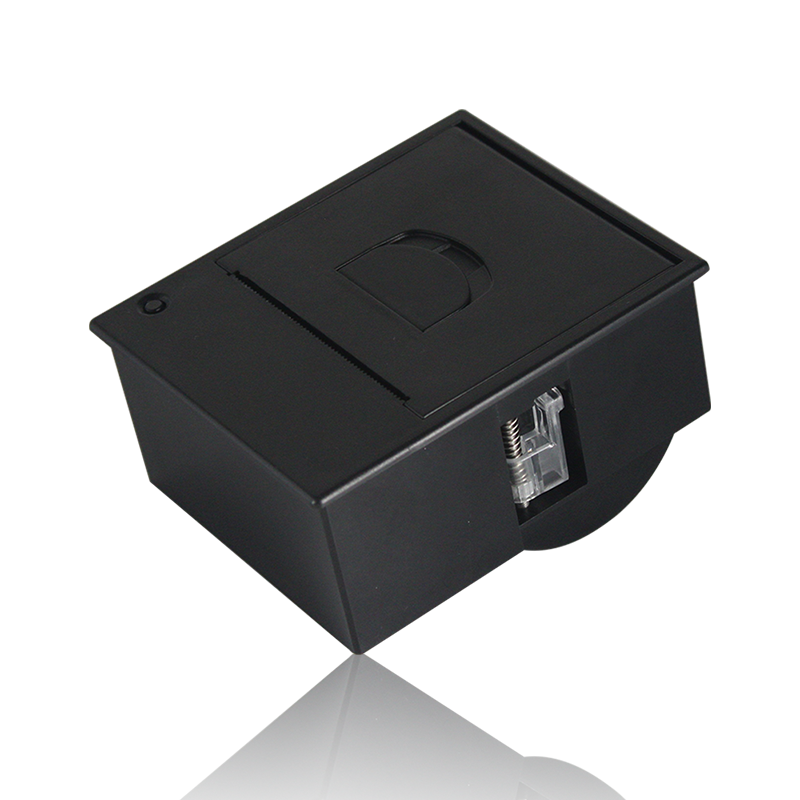

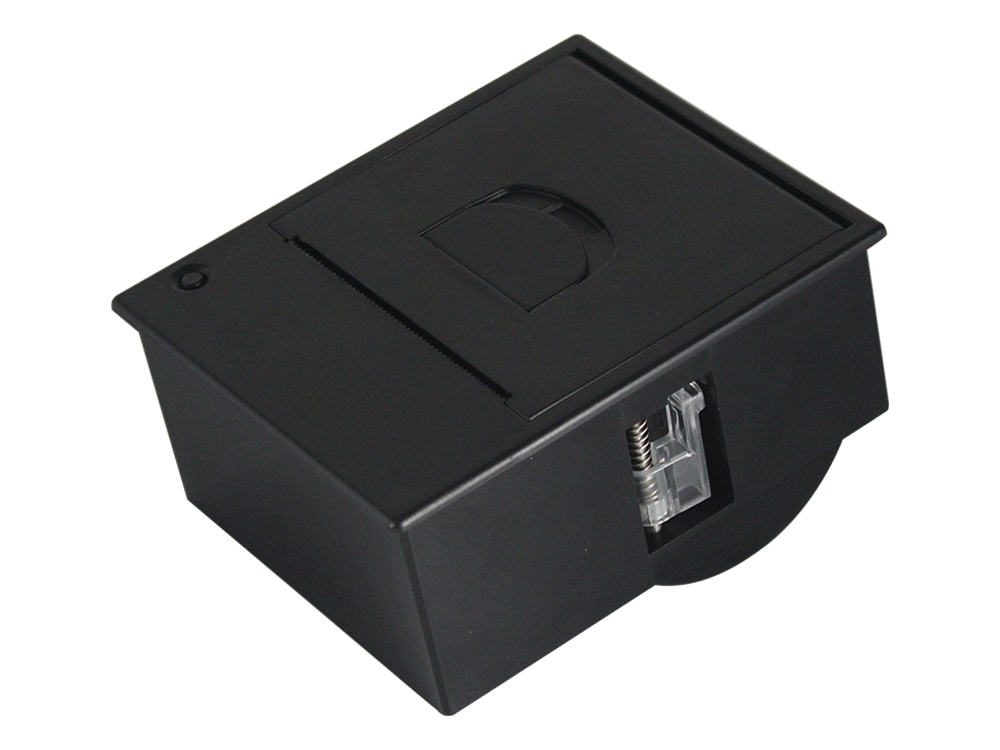

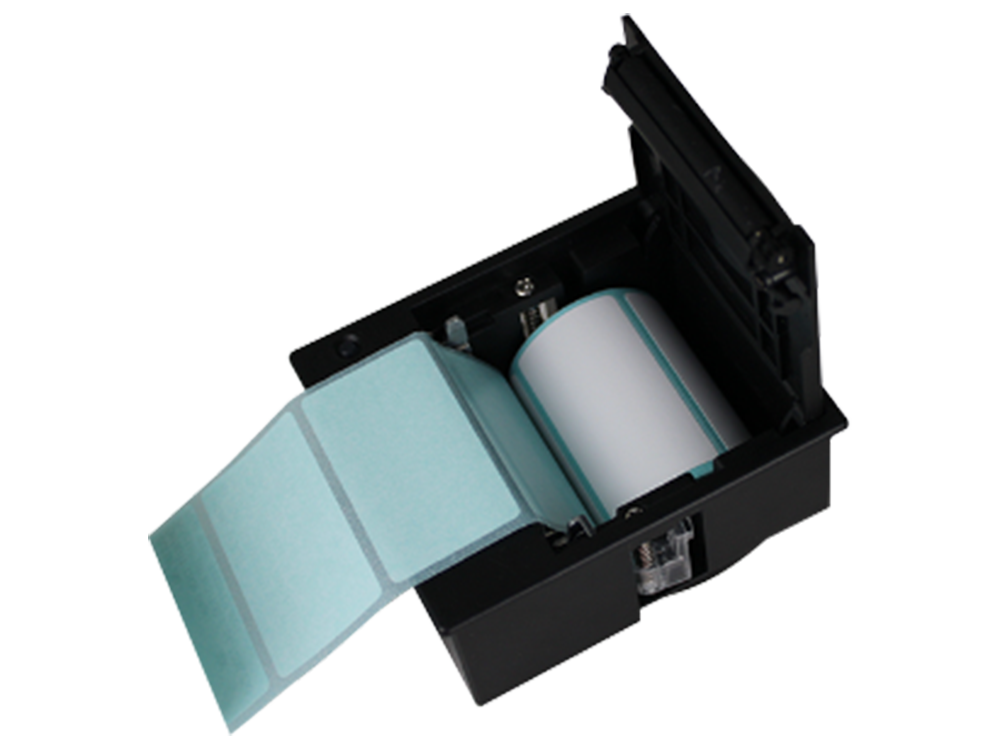

58MM embedded thermal printer I manual paper tearing

This is a 58MM embedded thermal printer I with manual paper tearing, supporting adjustable label width of 40-55MM; Support secondary development of PLC/industrial touch screen/Android/microcontroller/Raspberry Pi/Windows system. Label/receipt dual printing, specially designed for medical testing equipment, with stronger quality upgrade performance。

Printing type：Ticket/tag switchable mode

Communication interface :RS232+TTL+USB+485 interface

Printing speed:90MM/S

Product Usage:Printing of thermal sensitive receipts/labels in various fields

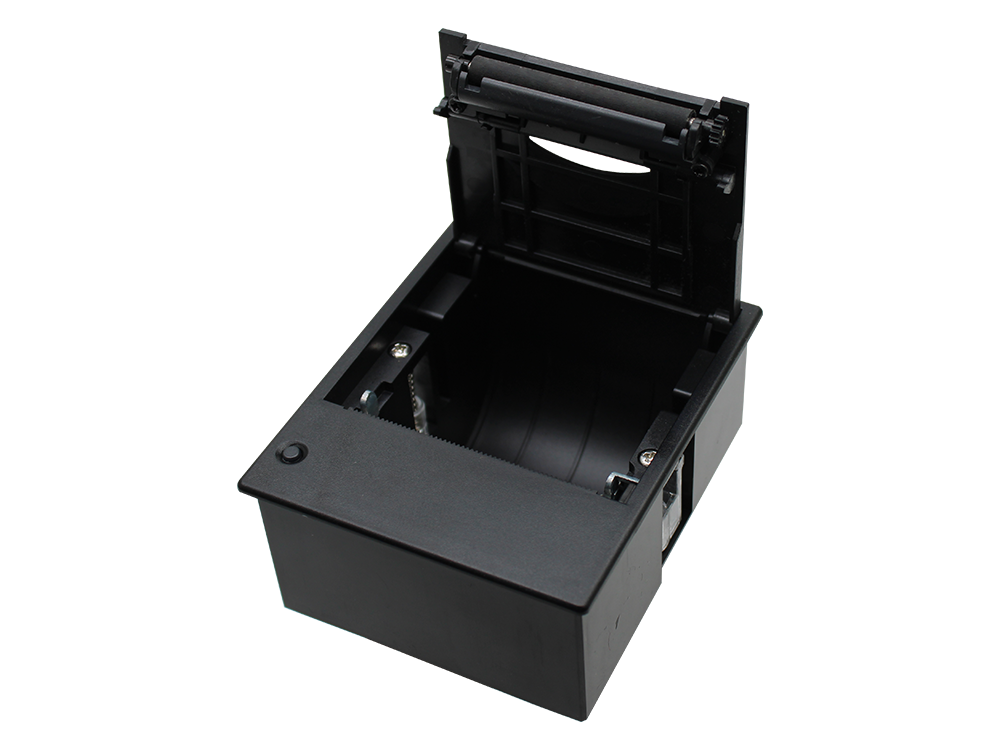

Product features:Support status reply function, manual paper tearing, 50MM large paper bin, adjustable width of 40-55MM labels, and easy to pack paper structure design

Secondary development:Supports controlling printing on Linux, Android, PLC, Raspberry Pi, Windows, microcontrollers, and more

: 58MM embedded thermal printer I manual paper tearing

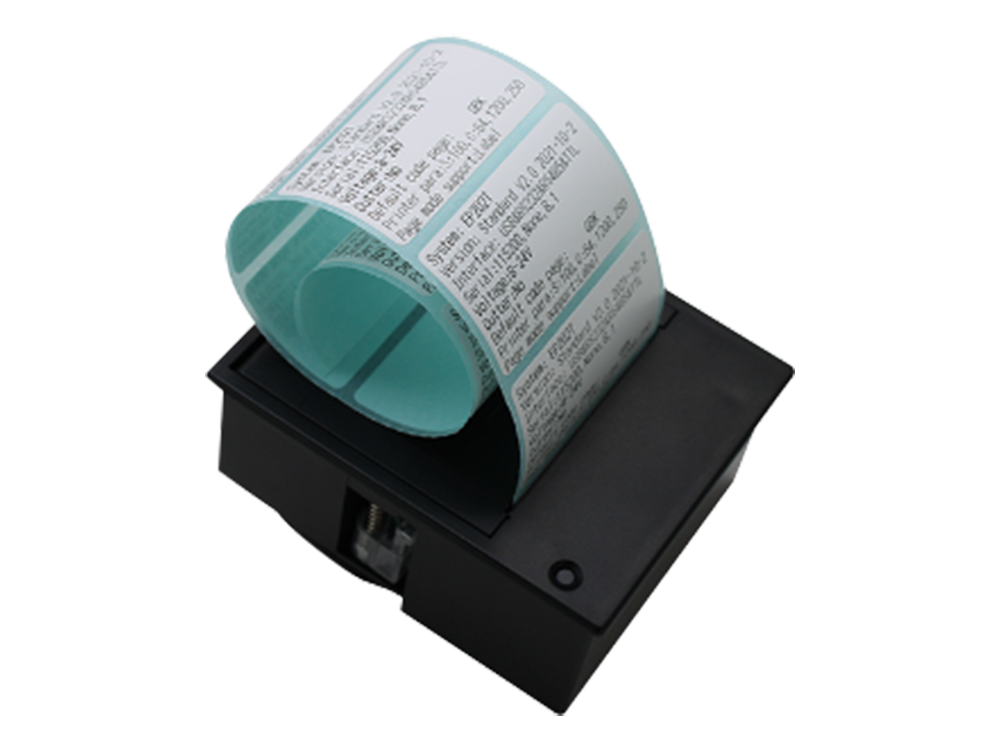

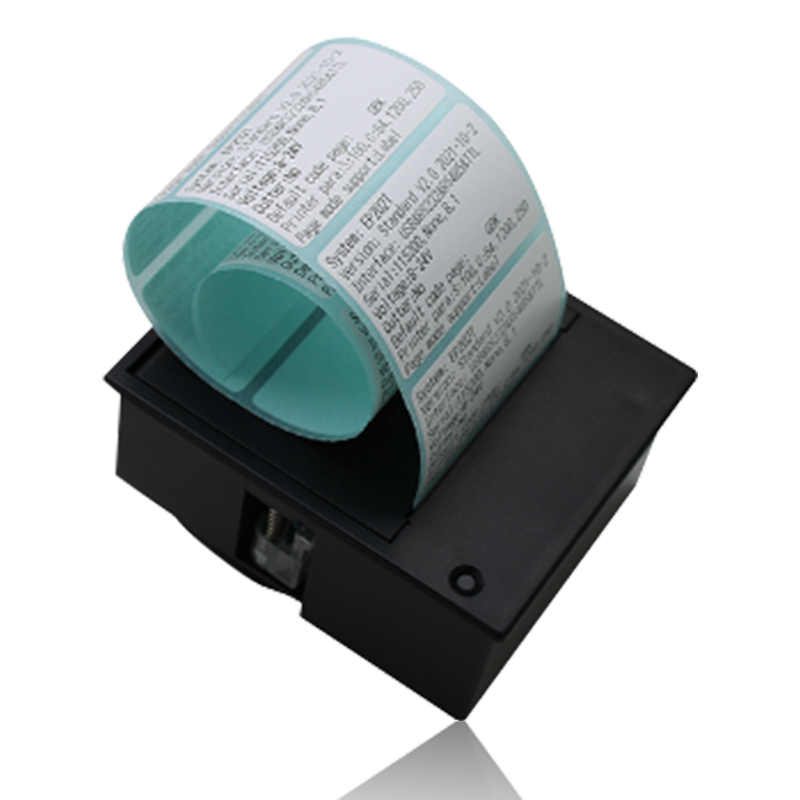

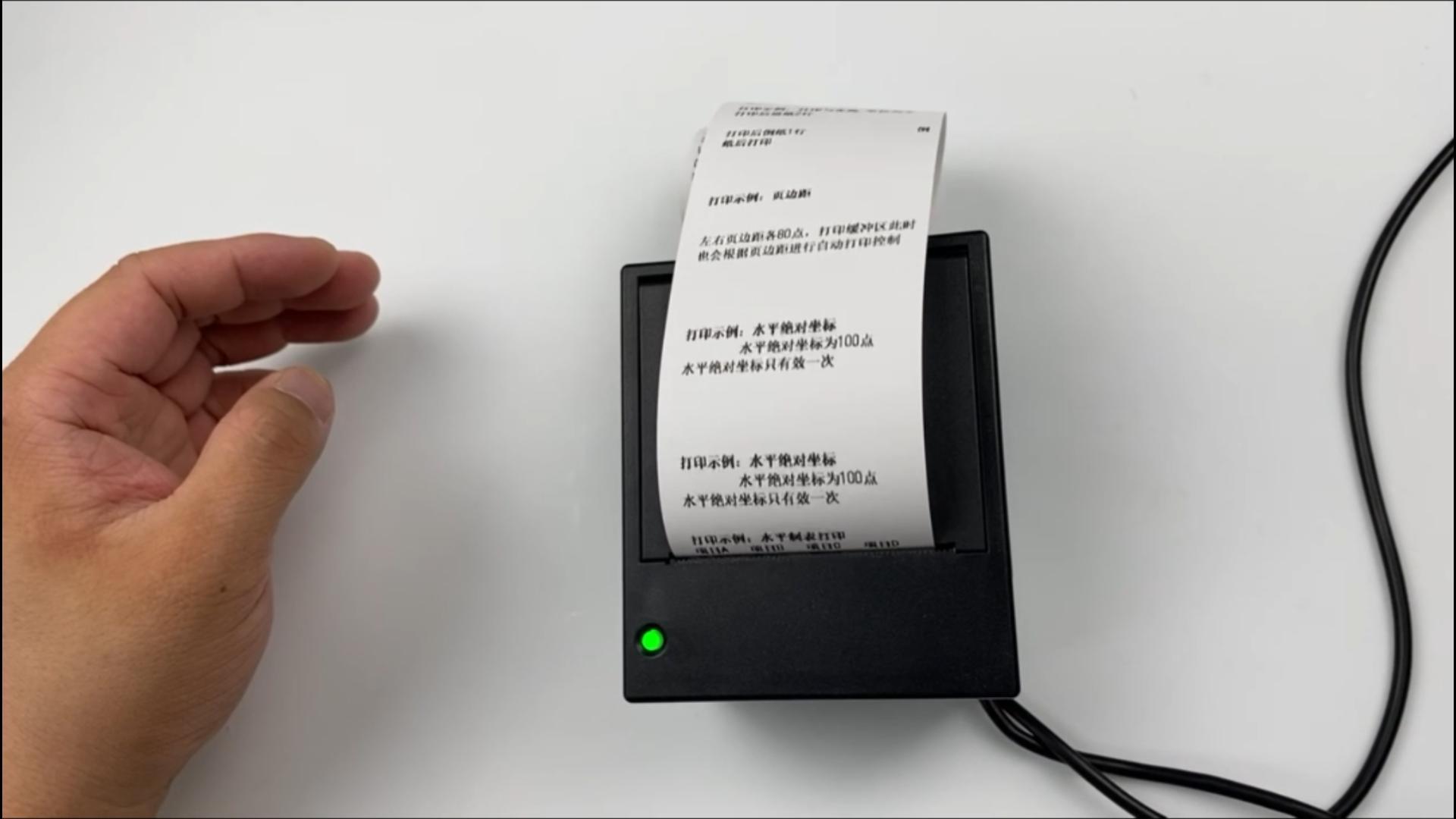

Label printing, clear printing, fast printing speed of 90MM/S, no need for carbon tape, no need for color tape, no need for ink thermal printing technology, more convenient, environmentally friendly, and safer.

: 58MM embedded thermal printer I manual paper tearing

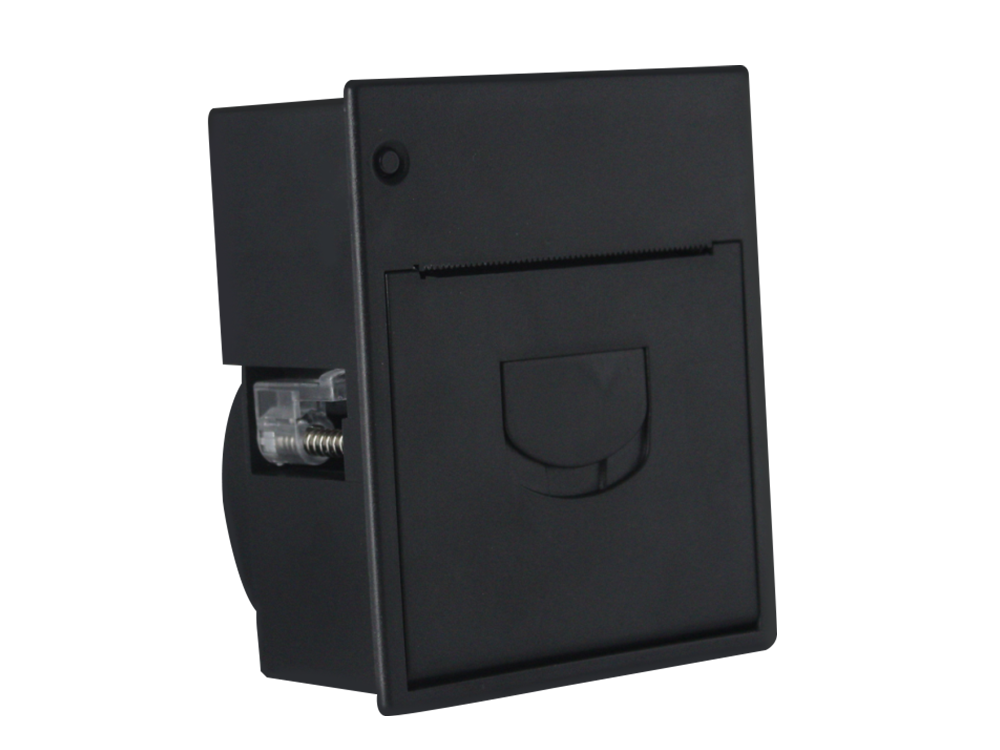

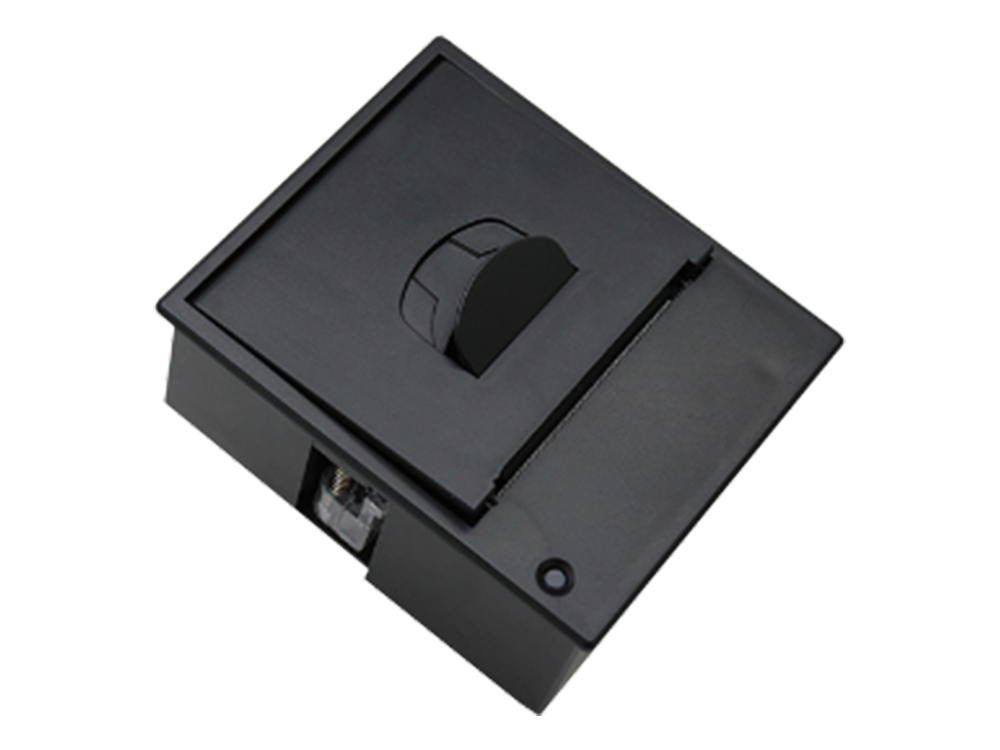

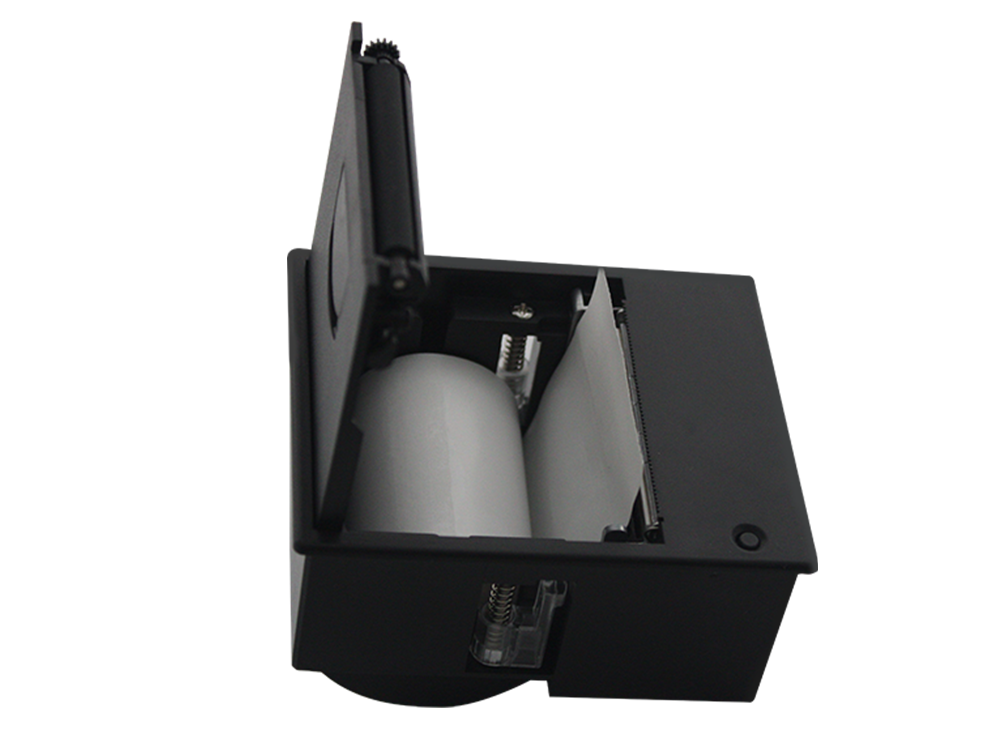

Minimalist front panel design, compact body, supporting dual printing of receipts/labels. No need for frequent paper changes, saving you time. The wide voltage design adopts 9-24V range wide voltage input, free conversion, stable power supply, intelligent and safe.

Parameter

Basic information
Product name	58MM embedded thermal printer I manual paper tearing
Product model	GY-EP202T
Printing type	Ticket/tag switchable mode
Specification parameters	Line thermal printing
Printing method	9-24V wide voltage power supply

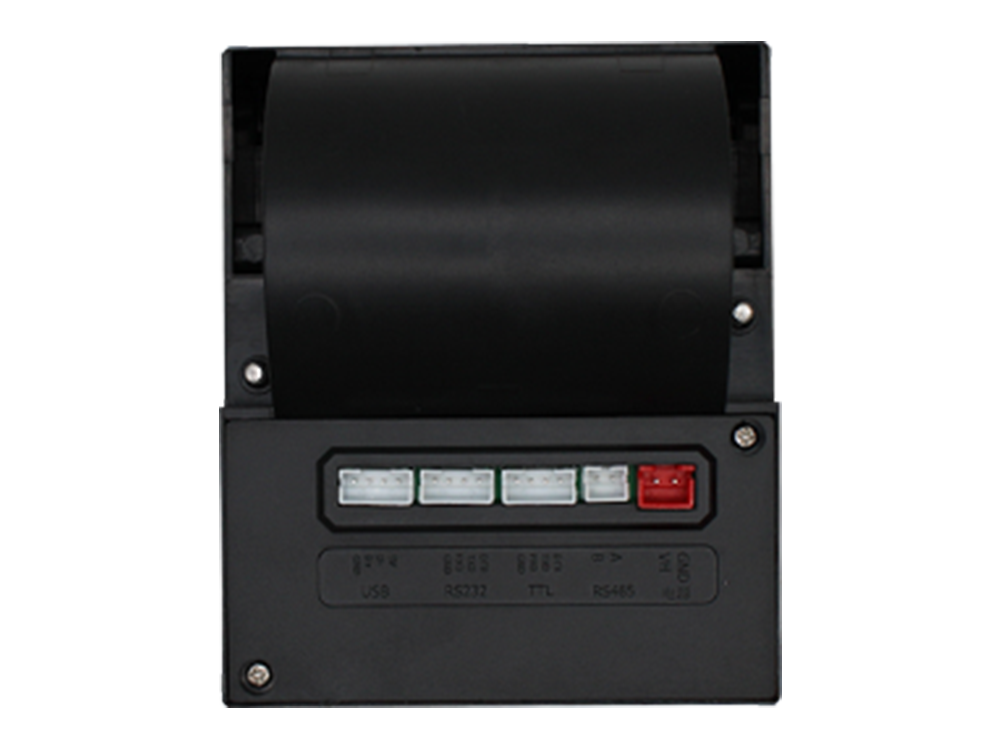

Communication interface	RS232+TTL+USB+485 interface
Appearance dimensions	97.182.157.5MM
Product Usage	Printing of thermal sensitive receipts/labels in various fields
Product features	Support status reply function, manual paper tearing, 50MM large paper bin, adjustable width of 40-55MM labels, and easy to pack paper structure design
Secondary development	Supports controlling printing on Linux, Android, PLC, Raspberry Pi, Windows, microcontrollers, and more

Data Download

Document name

Update Time：2024-06-26

File Size:9 KB

File Format:doc

Download

Common Problem

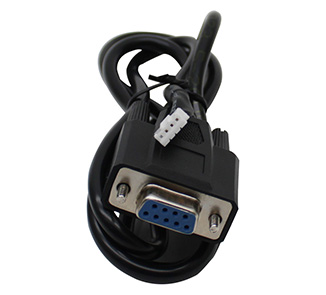

How to connect the serial port of the printer?

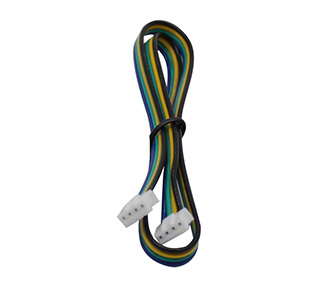

All of our integrated printers (products that need to be integrated into the device) have a232serial port or TTL serial port with 4 pins, defined as TX, RX, GND, and DTR. Currentlytheactual amount of data printed is not large, usually using 3 lines, which are TX, RX. andGND
After using the printer for a period of time, it may not print clearly. ls there no ink left?

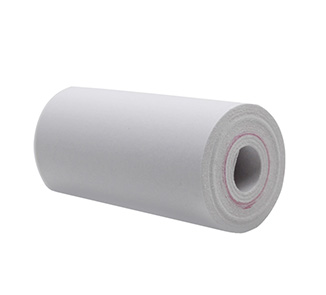

No, this type of thermosensitive printer does not require consumables such as ink, toner.orribbons. The color development principle relies on the printer's movement heating to makethethermosensitive paper, and the color development agent on top of it produces the colorthatwe see as a small ticket. The reason for unclear printing of thermal printers is mostlyrelatedto the thermal color agent coating of thermal paper. However, cheap thermal paper onthemarket has poor thermal color agent, resulting in blurry printing and short retention time
What is the situation of unclear printing effect?

1. First, troubleshoot the issue with the printer itself. Open the paper compartment coverandcheck for dirt on the rollers and print head. lf not, troubleshoot the issue. lf so, gently cleanitup! 2. Check if there is moisture on the paper roll. lf not, it can also be ruled out! 3. it's justthatthe current of the power supply is not enough, and there is a possibility of virtual
Do l need to install a driver when printing via USB on a computer?

lf necessary, you can control printing through the USB on the computer side. You need toinstall a printer driver, and then call the original driver to print when the software controls, justlike the principle of calling the local laser printer or inkjet printer after the WORD is edited!Using driver printing, there is no need to worry about the printer's instruction manual, but
