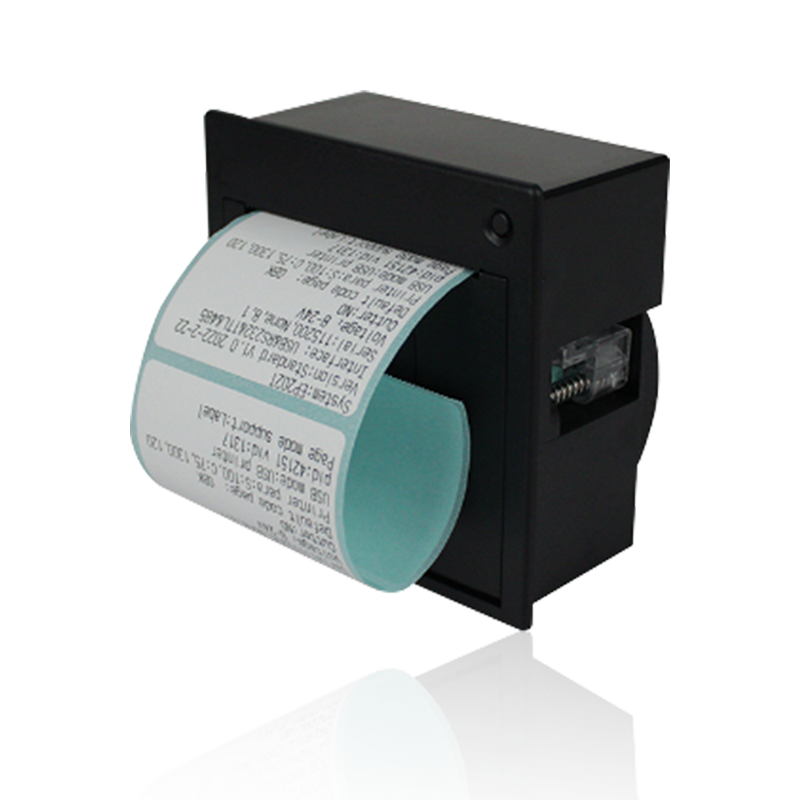

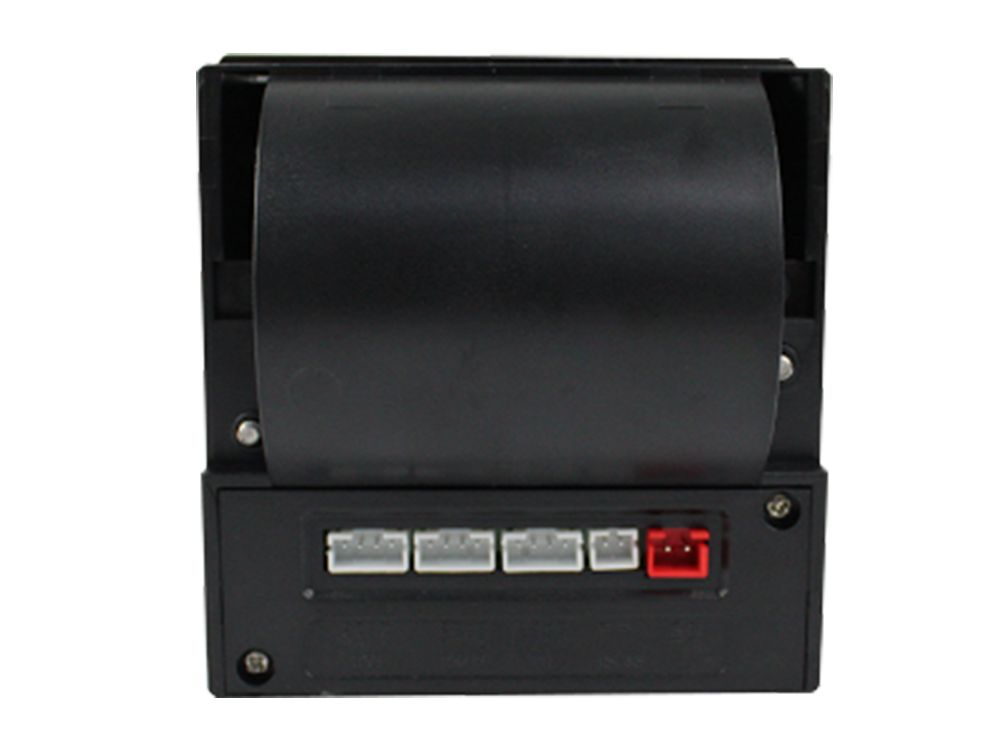

58MM embedded thermal printer I manual paper tearing

This is a 58MM embedded thermal printer that supports adjustable label width of 40-55MM, and supports secondary development of PLC/industrial touch screen/Android/microcontroller/Raspberry Pi/Windows system. Specially designed for PCL, industrial touch screen system manufacturers. Supports dual printing of labels and receipts, with upgraded quality and stronger performance.

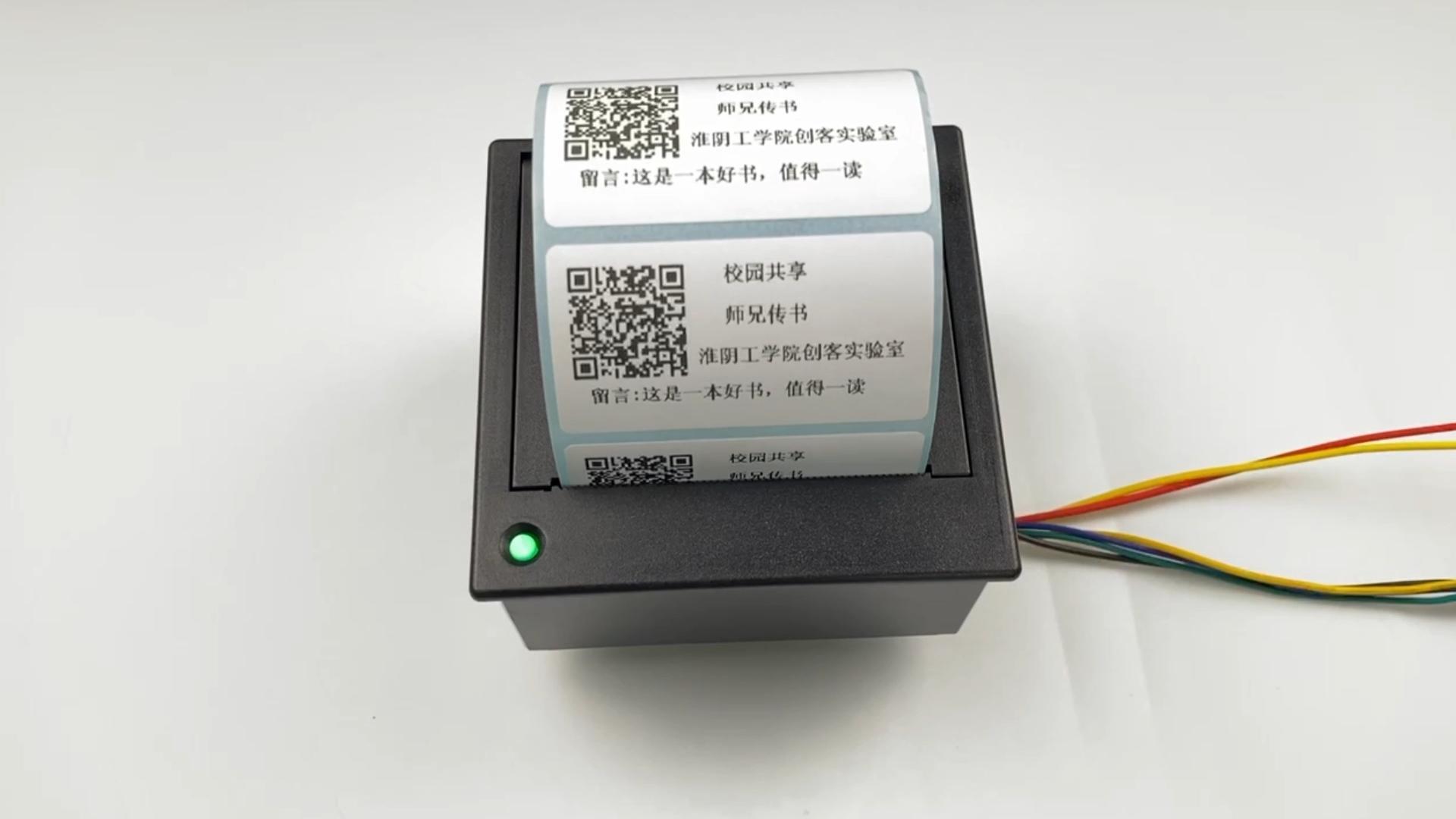

Printing type:Ticket/tag switchable mode

Specification parameters: 9-24V wide voltage power supply

Communication interface:RS232+TTL+USB+485接口

Appearance dimensions:85.1*85.1*57.5MM

Printing speed:90MM/S

Product features:Support status reply function, manual paper tearing, 50MM large paper bin, adjustable width of 40-55MM labels, and easy to pack paper structure design

Secondary development:支持 Linux、Android、PLC、树莓派、Windows、单片机等控制打印

58MM embedded thermal printer I manual paper tearing

58MM embedded thermal printer I manual paper tearing

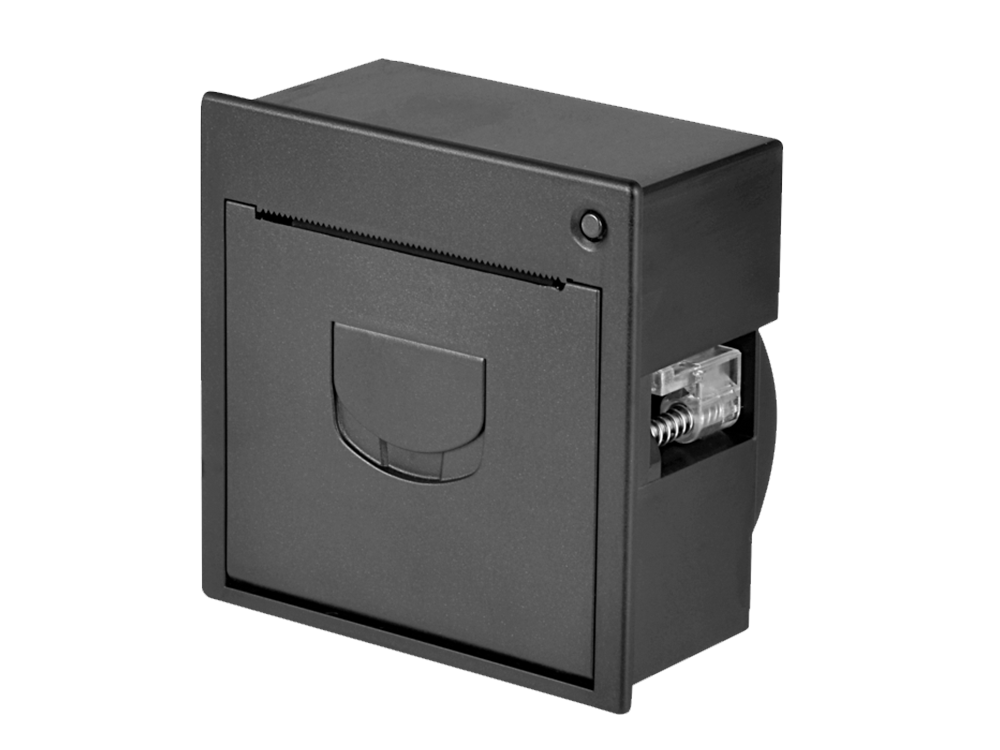

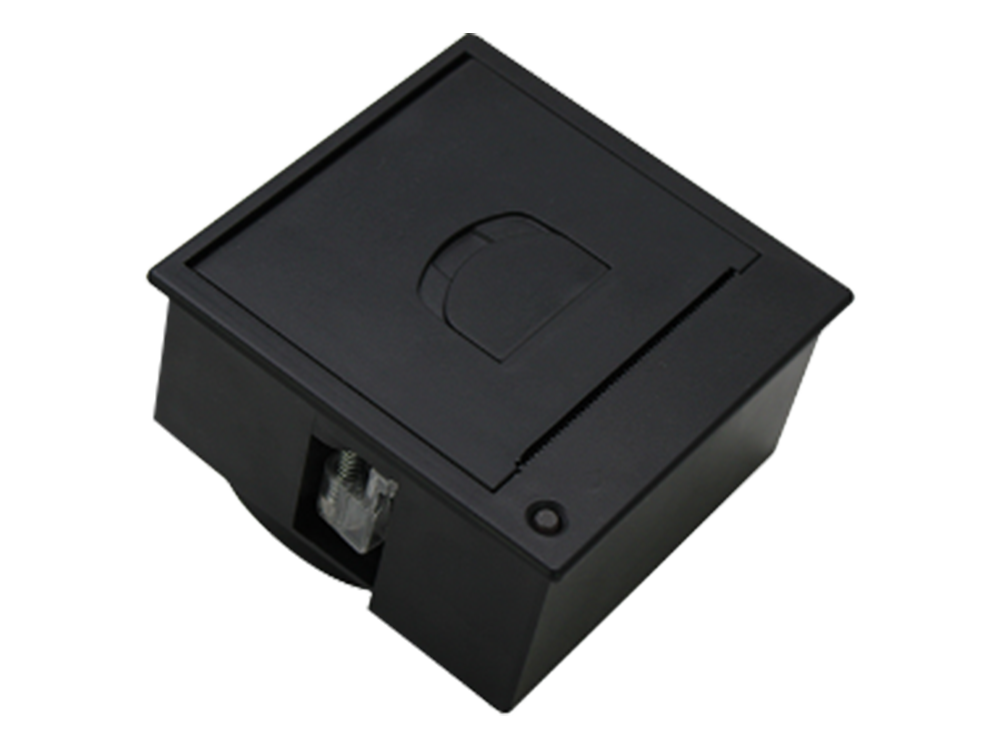

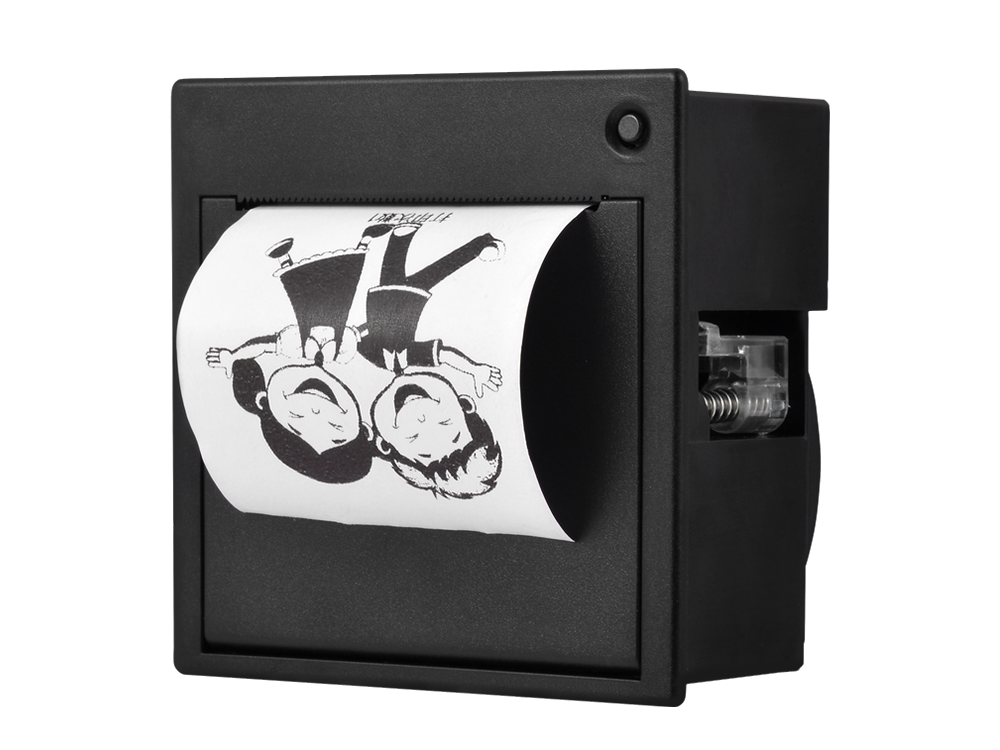

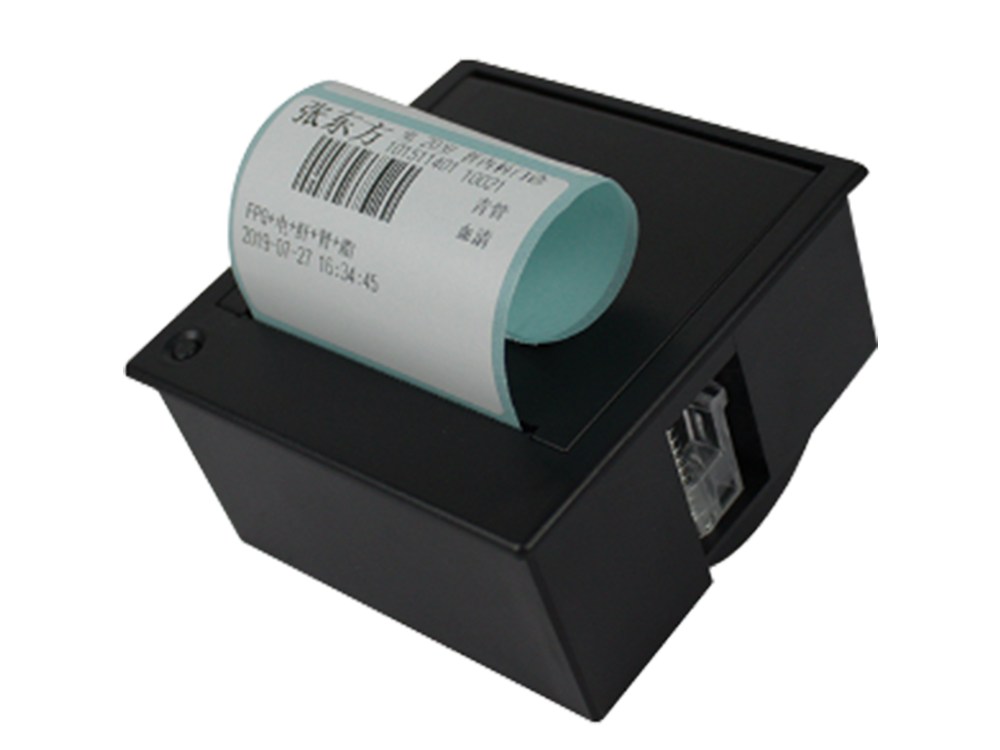

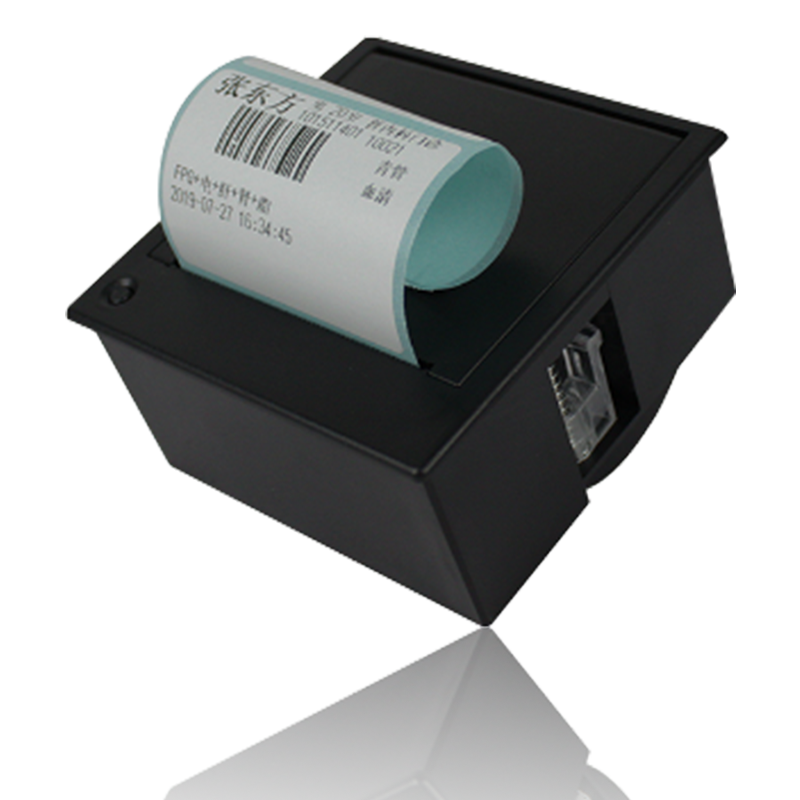

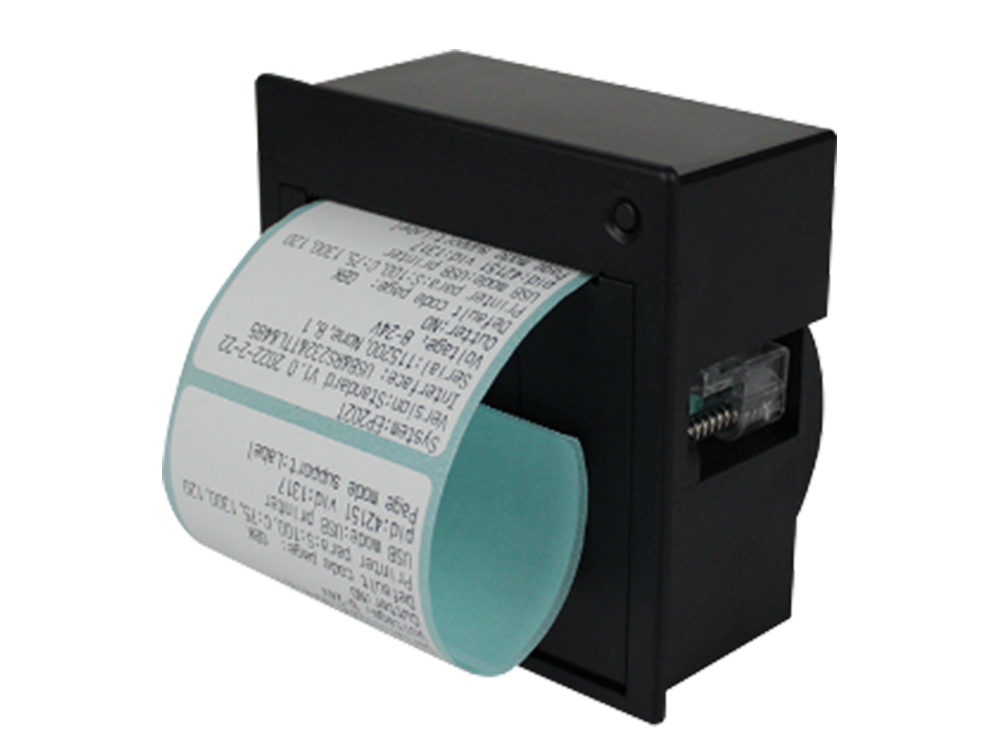

Founder design/compact body/front panel device to meet the needs of more detection equipment or small self-service devices, with multiple printing modes: supporting small ticket instructions; Label instructions; Two printing modes to meet different requirements for secondary development. Clear printing, fast printing speed of 90MM/S, stable performance, and stronger quality.
58MM embedded thermal printer I manual paper tearing

58MM embedded thermal printer I manual paper tearing

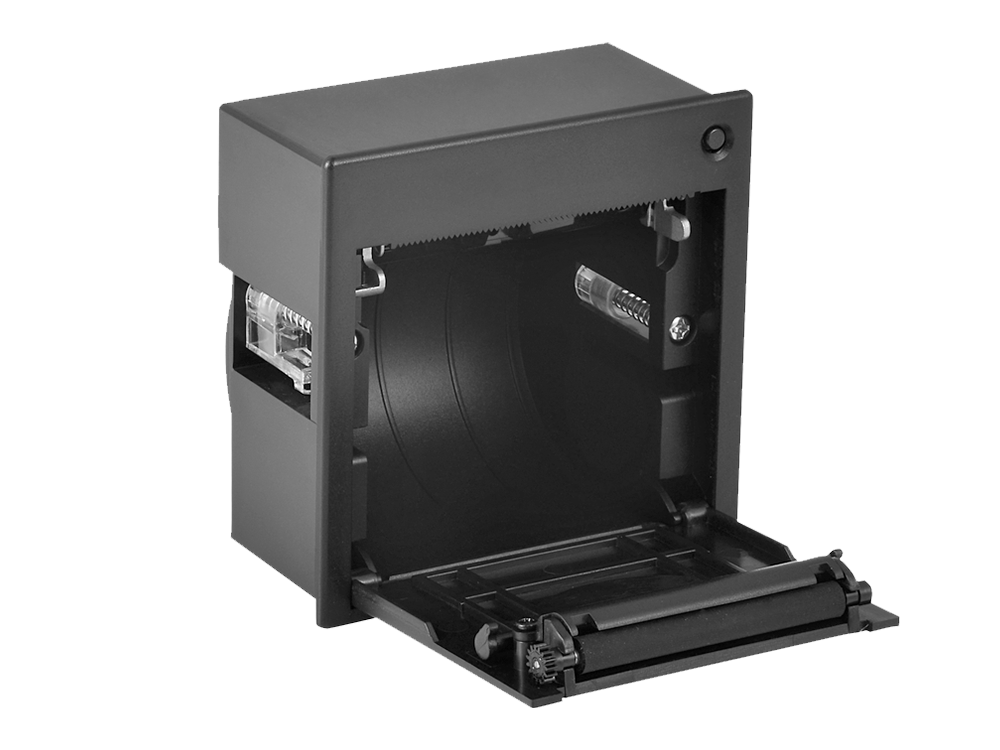

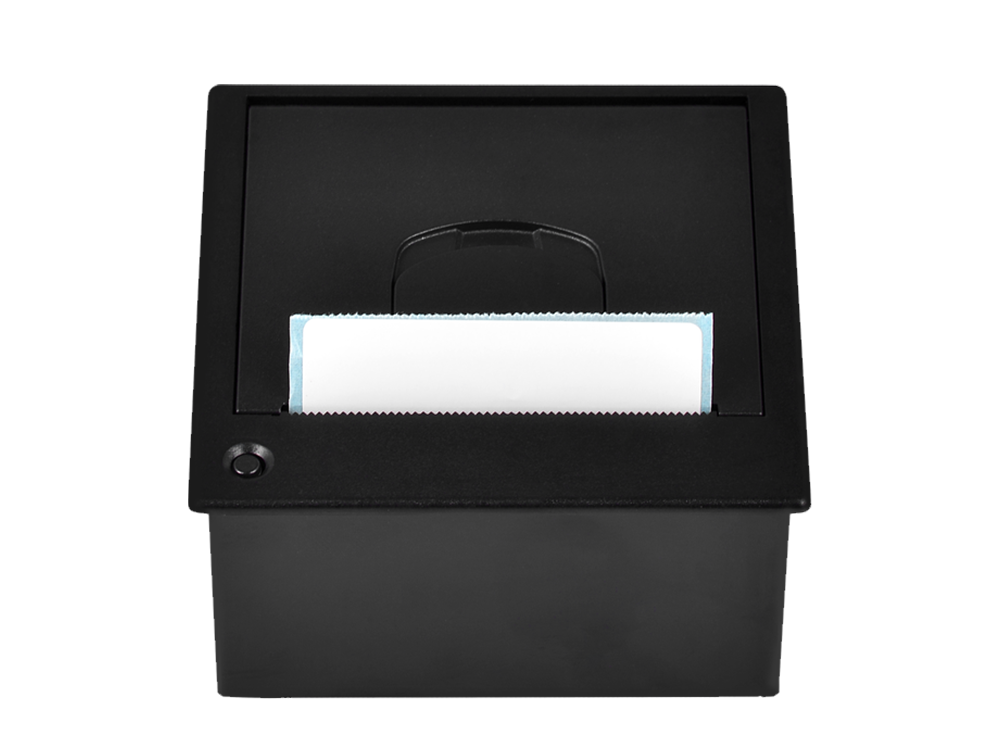

Small size and large capacity can accommodate paper rolls with a maximum outer diameter of 50MM, reducing frequent paper changes. With a wide voltage design, it adopts a 9-24V wide voltage range for stable power supply and free conversion. It is intelligent and safe, ensuring safety and careful care. Let you use it safely and with peace of mind.

Video introduction

58MM embedded thermal printer I manual paper tearing
58MM embedded thermal printer I manual paper tearing

Parameter

Basic information

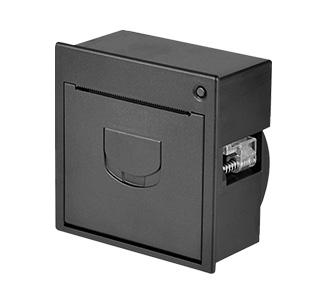

Product name 58MM embedded thermal printer I manual paper tearing
Product model GY-EP203T
Printing type Ticket/tag switchable mode
Specification parameters 9-24V wide voltage power supply
communication interface RS232+TTL+USB+485接口
Appearance dimensions 85.1*85.1*57.5MM
Appearance color Black/white is optional, and colors can also be customized
Usage scenario Indoor equipment usage
Product features Support status reply function, manual paper tearing, 50MM large paper bin, adjustable width of 40-55MM labels, and easy to pack paper structure design
Secondary development Supports controlling printing on Linux, Android, PLC, Raspberry Pi, Windows, microcontrollers, and more

Details Of Accessories

58MM embedded thermal printer I manual paper tearing

Standard Accessories

Printer * 1

Printer * 1

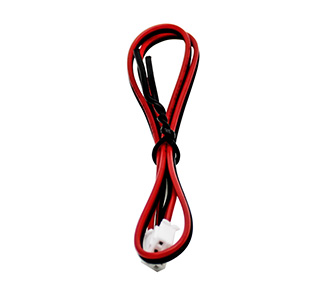

2PIN power cord * 1

2PIN power cord * 1

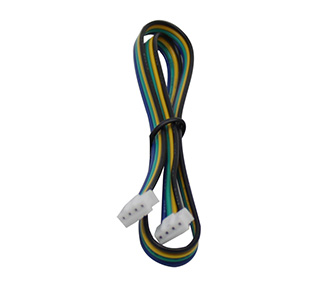

4PIN serial port cable * 1

4PIN serial port cable * 1

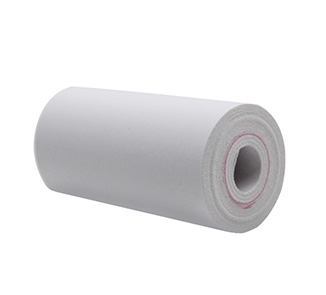

57X30 thermal sensitive small ticket paper

57X30 thermal sensitive small ticket paper

57X30 thermal sensitive small ticket paper

Optional Accessories

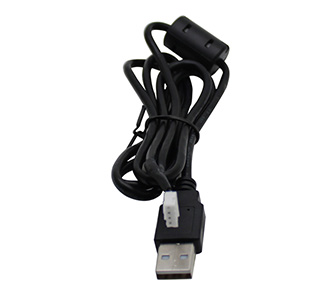

4PIN USB data cable * 1

4PIN USB data cable * 1

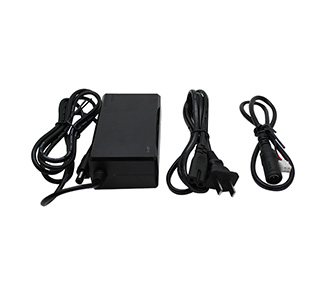

12V2.5A power adapter+8-terminalpower cord+XH2.54 2PIN DC power cord*1

12V2.5A power adapter+8-terminalpower cord+XH2.54 2PIN DC power cord*1

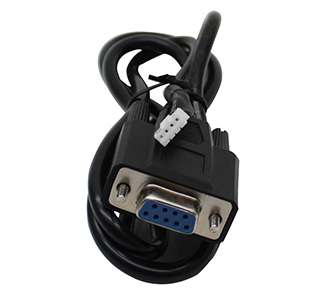

DB9 serial port cable * 1

DB9 serial port cable * 1

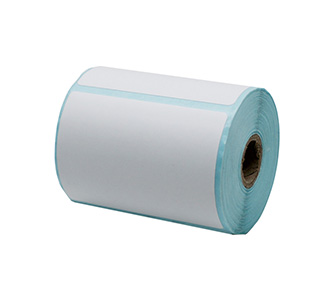

55X40X260 thermal label paper

55X40X260 thermal label paper

Data Download

Application Area

Common Problem

  • How to connect the serial port of the printer?

    All of our integrated printers (products that need to be integrated into the device) have a232serial port or TTL serial port with 4 pins, defined as TX, RX, GND, and DTR. Currentlytheactual amount of data printed is not large, usually using 3 lines, which are TX, RX. andGND
  • After using the printer for a period of time, it may not print clearly. ls there no ink left?

    No, this type of thermosensitive printer does not require consumables such as ink, toner.orribbons. The color development principle relies on the printer's movement heating to makethethermosensitive paper, and the color development agent on top of it produces the colorthatwe see as a small ticket. The reason for unclear printing of thermal printers is mostlyrelatedto the thermal color agent coating of thermal paper. However, cheap thermal paper onthemarket has poor thermal color agent, resulting in blurry printing and short retention time
  • What is the situation of unclear printing effect?

    1. First, troubleshoot the issue with the printer itself. Open the paper compartment coverandcheck for dirt on the rollers and print head. lf not, troubleshoot the issue. lf so, gently cleanitup! 2. Check if there is moisture on the paper roll. lf not, it can also be ruled out! 3. it's justthatthe current of the power supply is not enough, and there is a possibility of virtual
  • Do l need to install a driver when printing via USB on a computer?

    lf necessary, you can control printing through the USB on the computer side. You need toinstall a printer driver, and then call the original driver to print when the software controls, justlike the principle of calling the local laser printer or inkjet printer after the WORD is edited!Using driver printing, there is no need to worry about the printer's instruction manual, but
