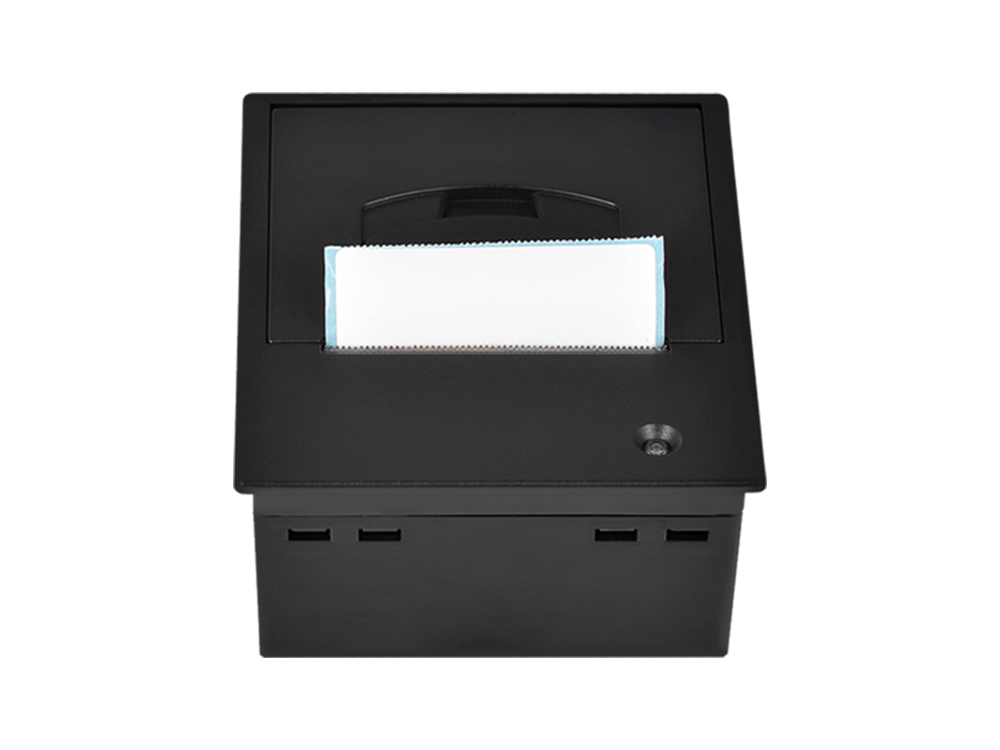

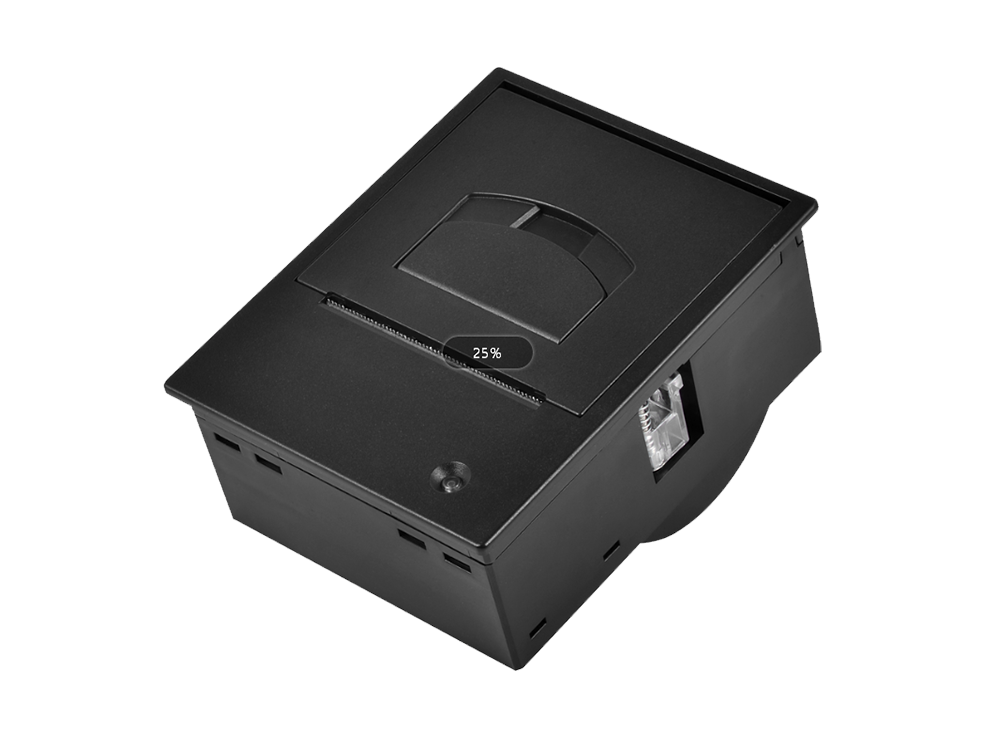

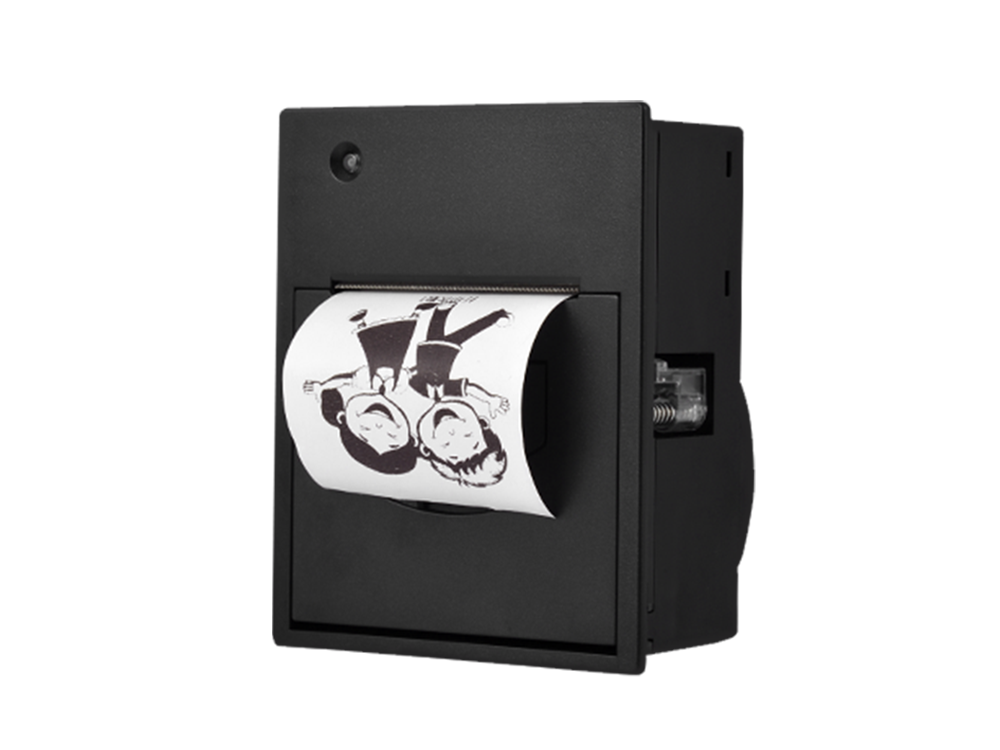

Front Panel Thermal Printer for sale

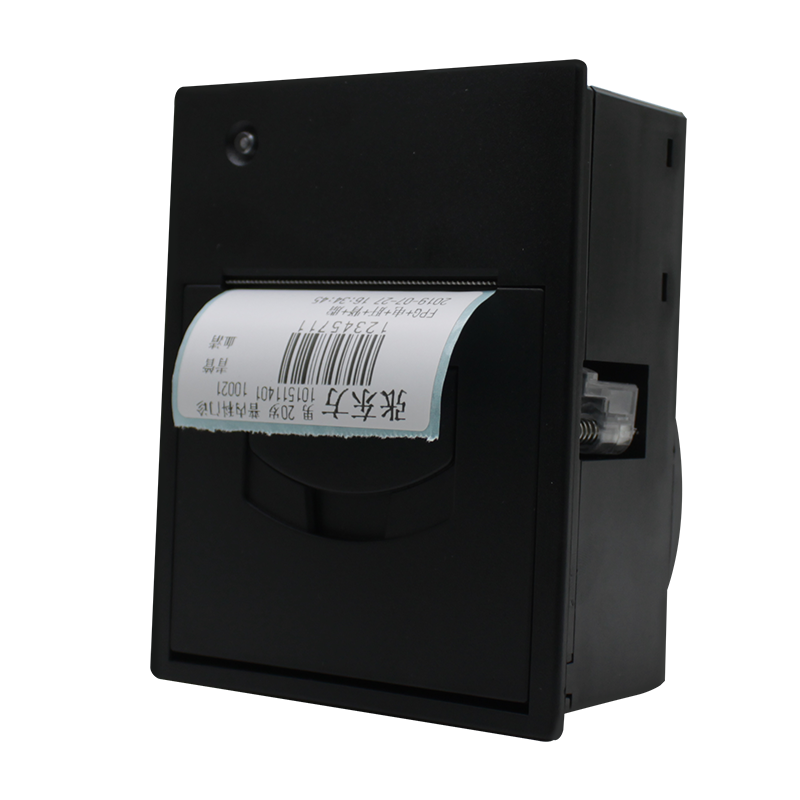

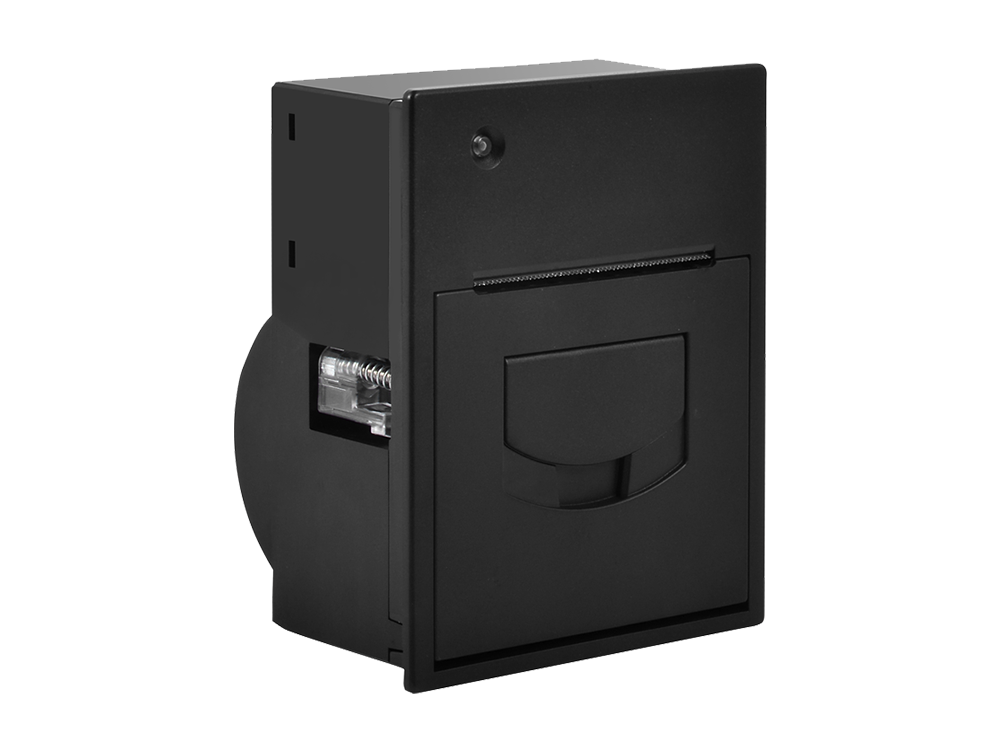

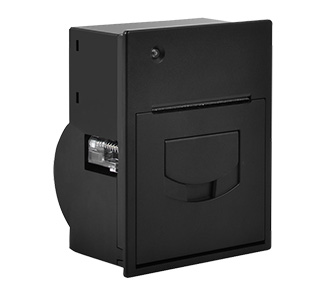

58MM embedded thermal printer I manual paper tearing

Specially designed for medical/vehicle mounted/testing equipment No carbon tape | No toner I thermal technology printing

Double printing of labels/receipts

Stable performance

Clear printing

Supports secondary development of microcontrollers/Android/Windows/Raspberry Pi/Touch Screen/PLC

Supports USB+RS232+TTL+485 interfaces

Port supports 9-24V wide voltage printing

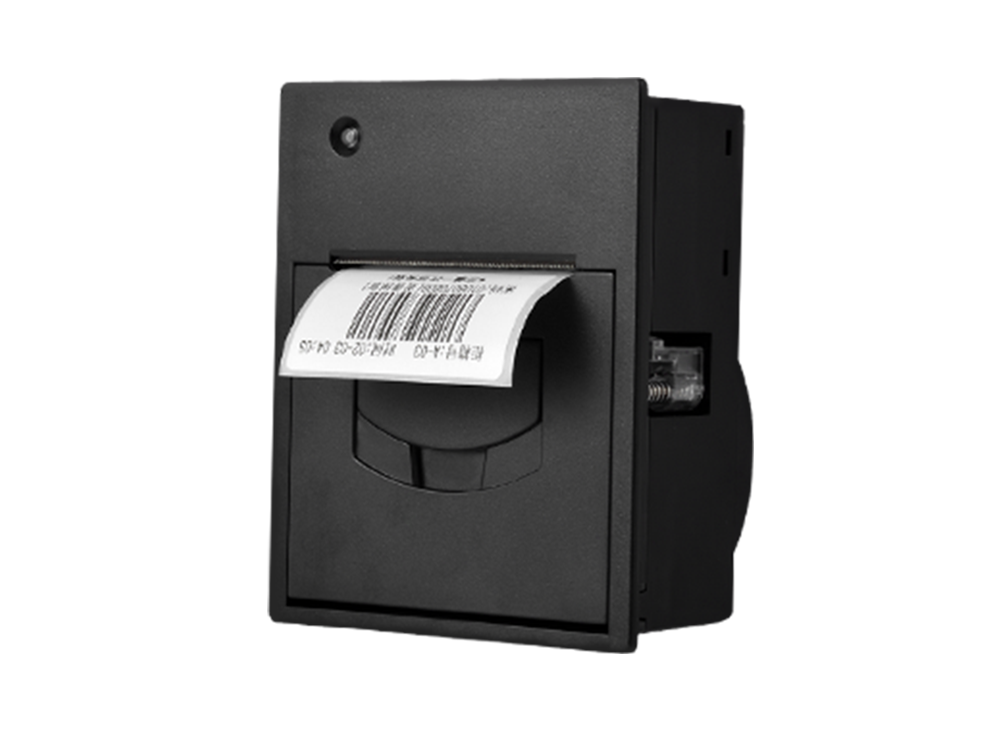

: 58MM embedded label printer

Support adjustable label width of 15-55mm; Support for secondary development of PIC/industrial touch screen/Android/microcontroller/Raspberry Pi/Windows system Specially designed for system/hardware integrators Double printing of labels/receipts Quality upgrade with stronger performance

: One machine with two modes of printing function

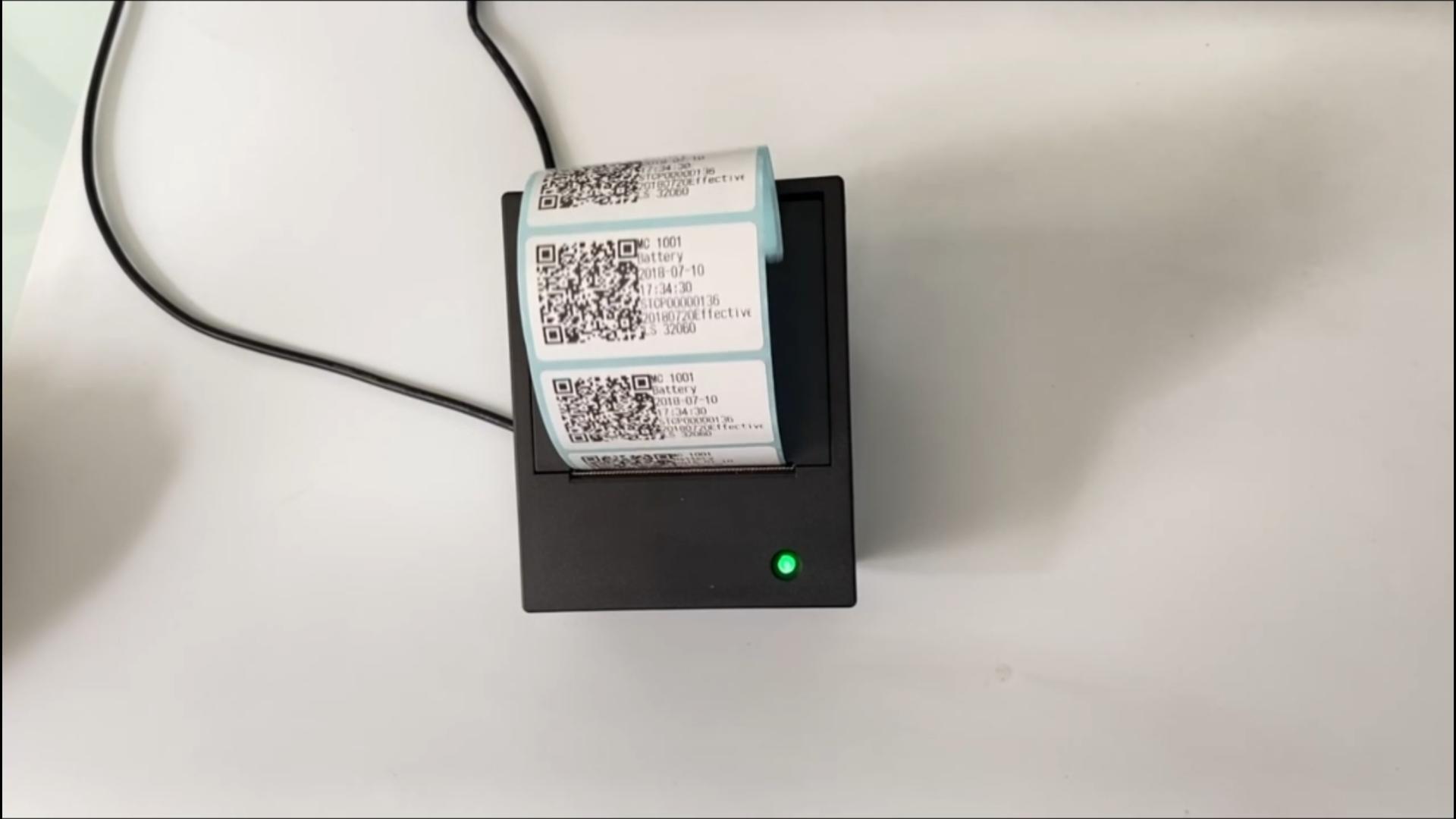

In addition to printing labels, I can also print receipts. With just one command set in the software, I can switch between receipt and label modes to meet different usage scenarios. I can do anything

Parameter

Basic information
Product Name	GY-EP201T
Printing type	Ticket/tag switchable mode
Specification parameters	9-24V wide voltage power supply
communication interface	RS232/TTL+USB+485 interface
Appearance dimensions	1109565.5MM
Appearance color	Black/white is optional, and colors can also be customized
Usage scenarios	Indoor use
Printing speed	90MM/S
Product Usage	Thermal label printing in various fields

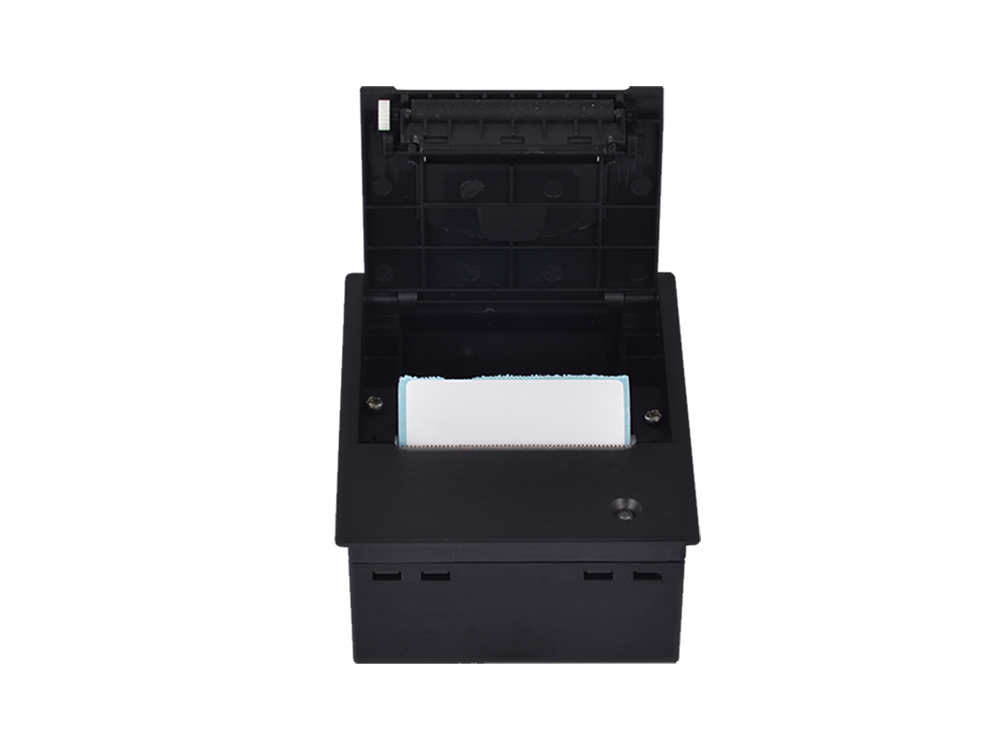

Product features	Support status reply function, manual paper tearing, 60MM large paper bin, adjustable label width of 15-55MM, and easy to pack paper structure design
Secondary development	Supports controlling printing on Linux, Android, PLC, Raspberry Pi, Windows, microcontrollers, and more

Data Download

Document name

Update Time：2024-06-26

File Size:9 KB

File Format:doc

Download

Common Problem

How to connect the serial port of the printer?

All of our integrated printers (products that need to be integrated into the device) have a 232 serial port or TTL serial port with 4 pins, defined as TX, RX, GND, and DTR. Currently, the actual amount of data printed is not large, usually using 3 lines, which are TX, RX, and GND
After using the printer for a period of time, it may not print clearly. Is there no ink left?

No, this type of thermosensitive printer does not require consumables such as ink, toner, or ribbons. The color development principle relies on the printer's movement heating to make the thermosensitive paper, and the color development agent on top of it produces the color that we see as a small ticket. The reason for unclear printing of thermal printers is mostly related to the thermal color agent coating of thermal paper. However, cheap thermal paper on the market has poor thermal color agent, resulting in blurry printing and short retention time of handwriting. Generally, the handwriting will fade and disappear after 3-6 months. Long term thermal paper uses imported thermal color agent, which can print clearly and retain Japanese handwriting for a relatively long time (1-3 years). Attention: Due to the chemical properties of thermosensitive colorants, thermosensitive paper should be stored away from light, water, and high temperatures to avoid failure.
What is the situation of unclear printing effect?

1. First, troubleshoot the issue with the printer itself. Open the paper compartment cover and check for dirt on the rollers and print head. If not, troubleshoot the issue. If so, gently clean it up! 2. Check if there is moisture on the paper roll. If not, it can also be ruled out! 3. It's just that the current of the power supply is not enough, and there is a possibility of virtual calibration. You can replace it with a higher power supply for testing,
Do I need to install a driver when printing via USB on a computer?

If necessary, you can control printing through the USB on the computer side. You need to install a printer driver, and then call the original driver to print when the software controls, just like the principle of calling the local laser printer or inkjet printer after the WORD is edited! Using driver printing, there is no need to worry about the printer's instruction manual, but using driver printing and some of the printer's status feedback functions may not be able to communicate well with the software layer!

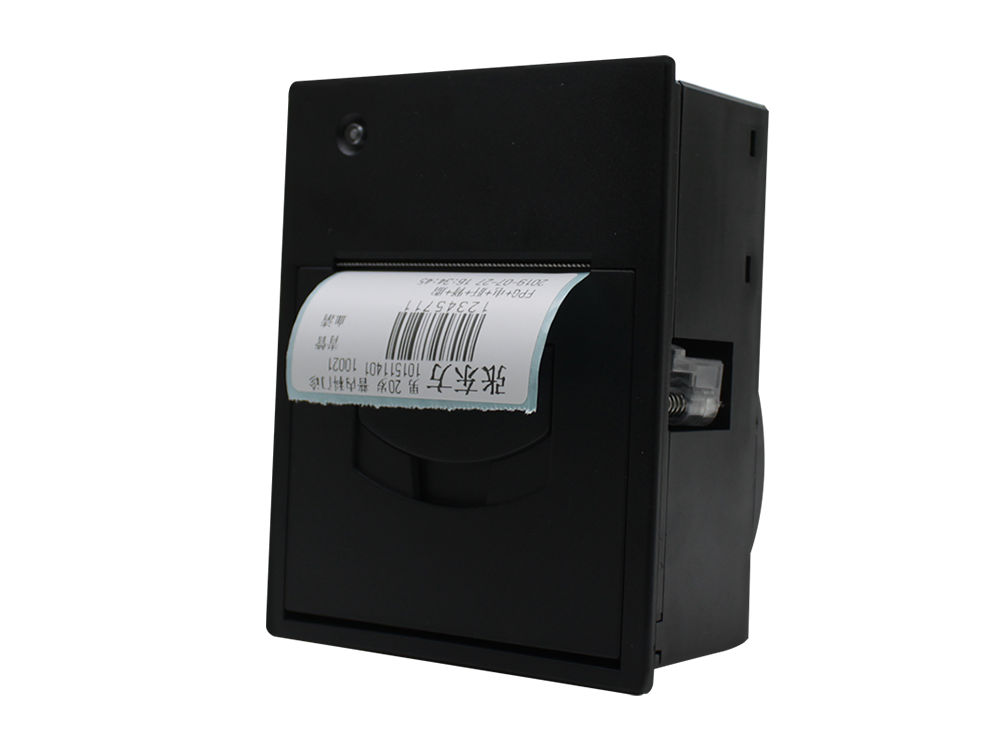

Front Panel Thermal Printer for sale

58MM embedded thermal printer I manual paper tearing

58MM embedded label printer

One machine with two modes of printing function

Video introduction

Parameter

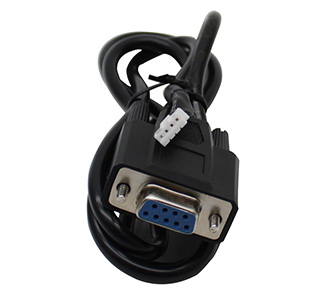

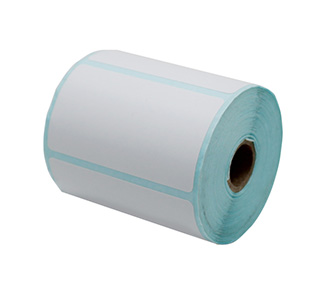

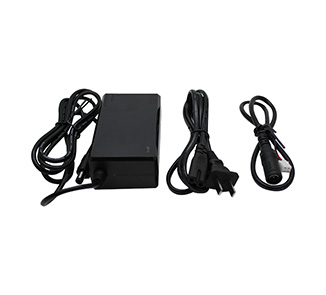

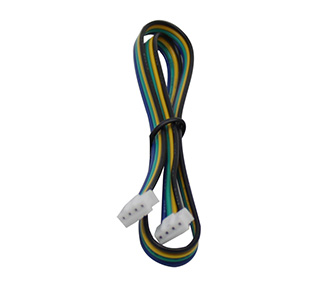

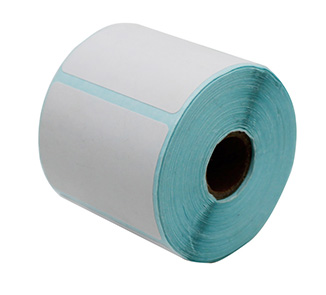

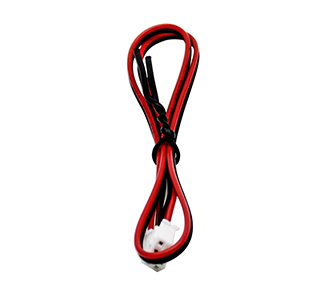

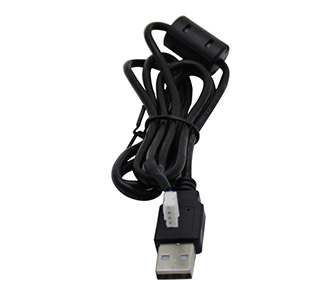

Details Of Accessories

Data Download

Document name

Download

Document name

Download

Document name

Download

Document name

Download

Document name

Download

Document name

Download

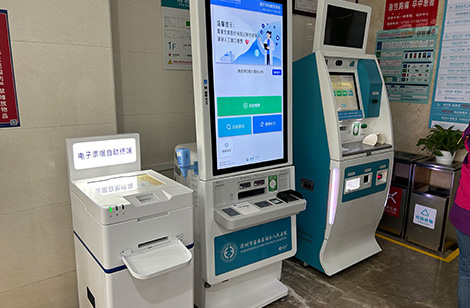

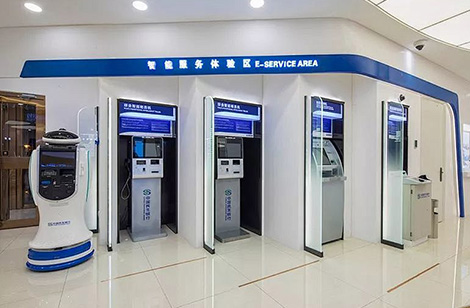

Application Area

Self service terminal services

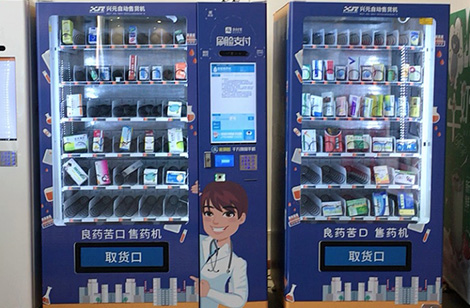

Self service vending machines

Bank self-service statement printing

Self-service ordering machine

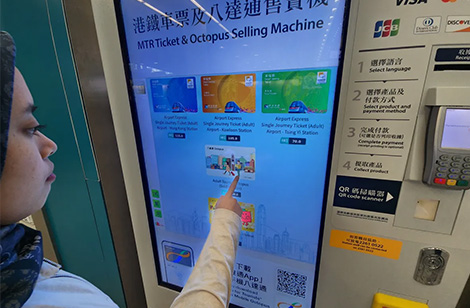

Self service ticket machine

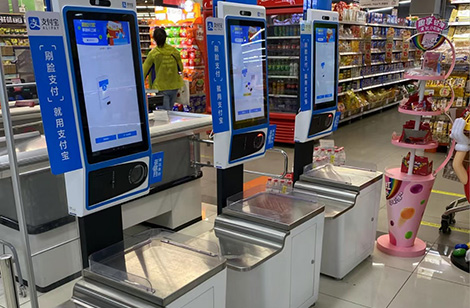

Self-service cash register

Self service terminal services

Self service vending machines

Bank self-service statement printing

Self-service ordering machine

Self service ticket machine

Self-service cash register

Common Problem

How to connect the serial port of the printer?

After using the printer for a period of time, it may not print clearly. Is there no ink left?

What is the situation of unclear printing effect?

Do I need to install a driver when printing via USB on a computer?
