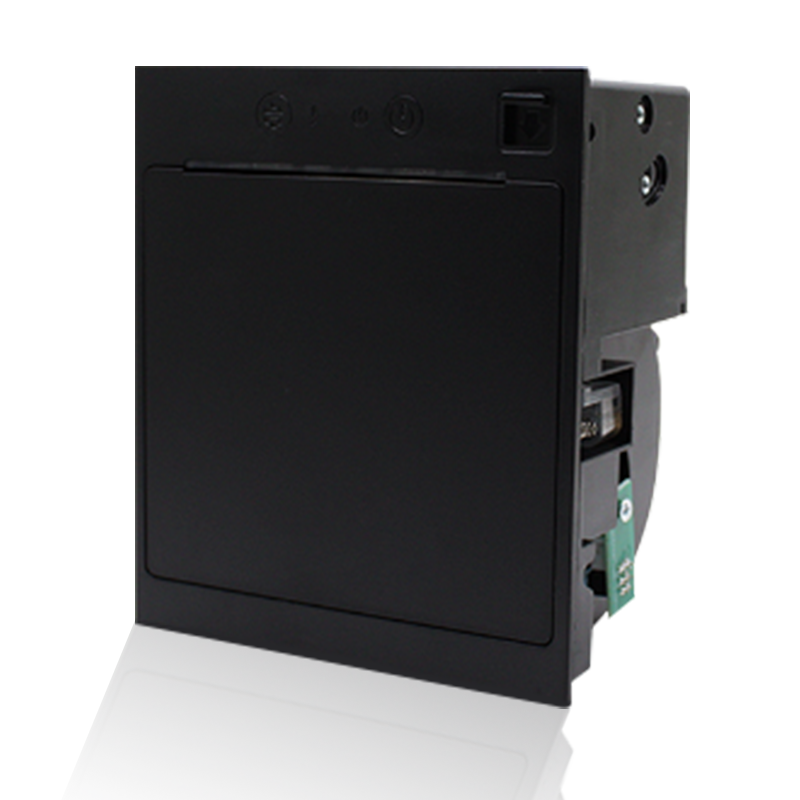

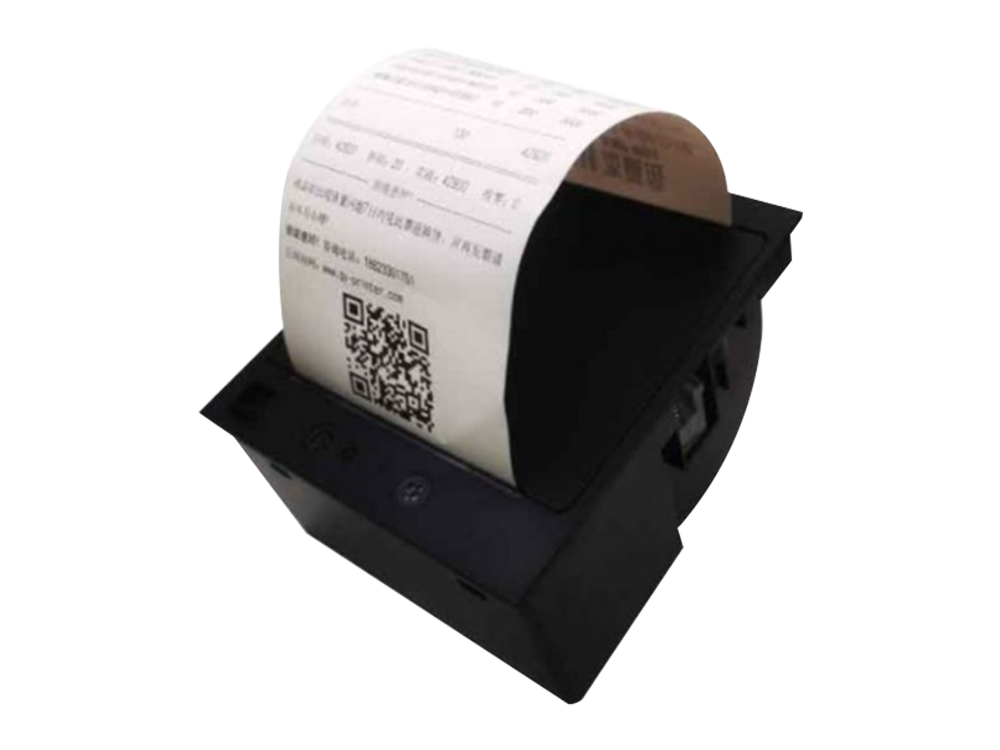

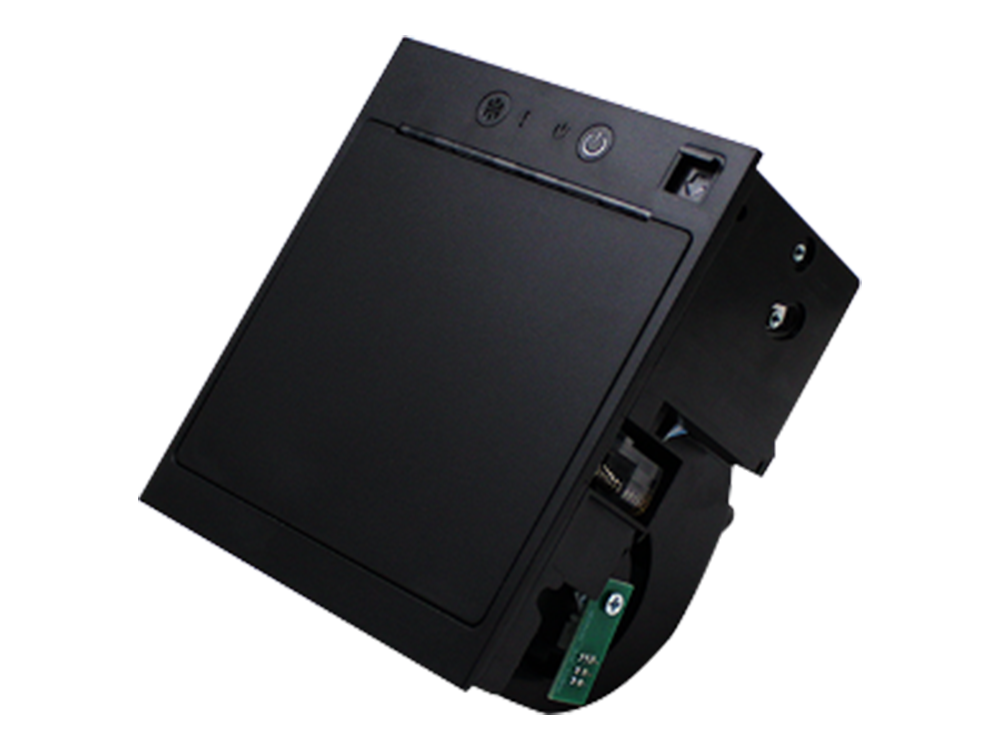

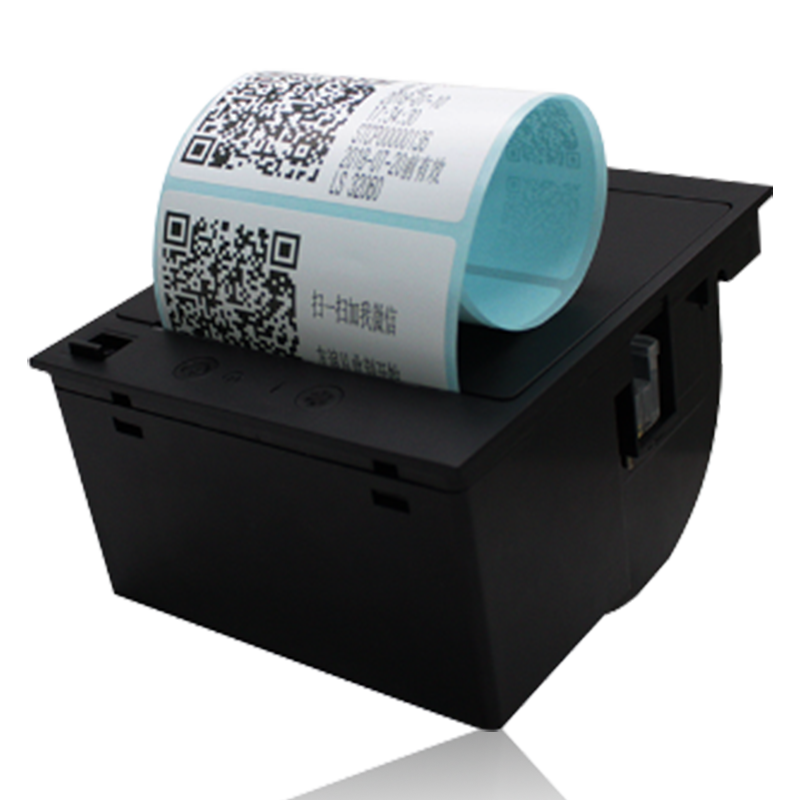

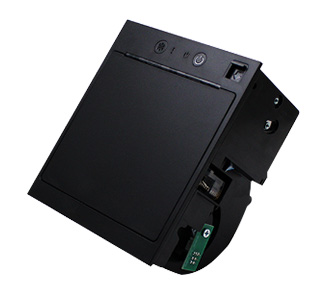

80MM embedded thermal printer I automatic paper cutting

This is an 80MM embedded thermal printer with automatic paper cutting, suitable for scenarios such as unmanned self-service devices. Its appearance adopts a minimalist design without losing its beauty. The minimalist design makes it easy for you to change paper and saves time. It does not require carbon tape, color tape, ink, and thermal technology printing. It has a dual mode of label and receipt, which can meet most of your daily needs.

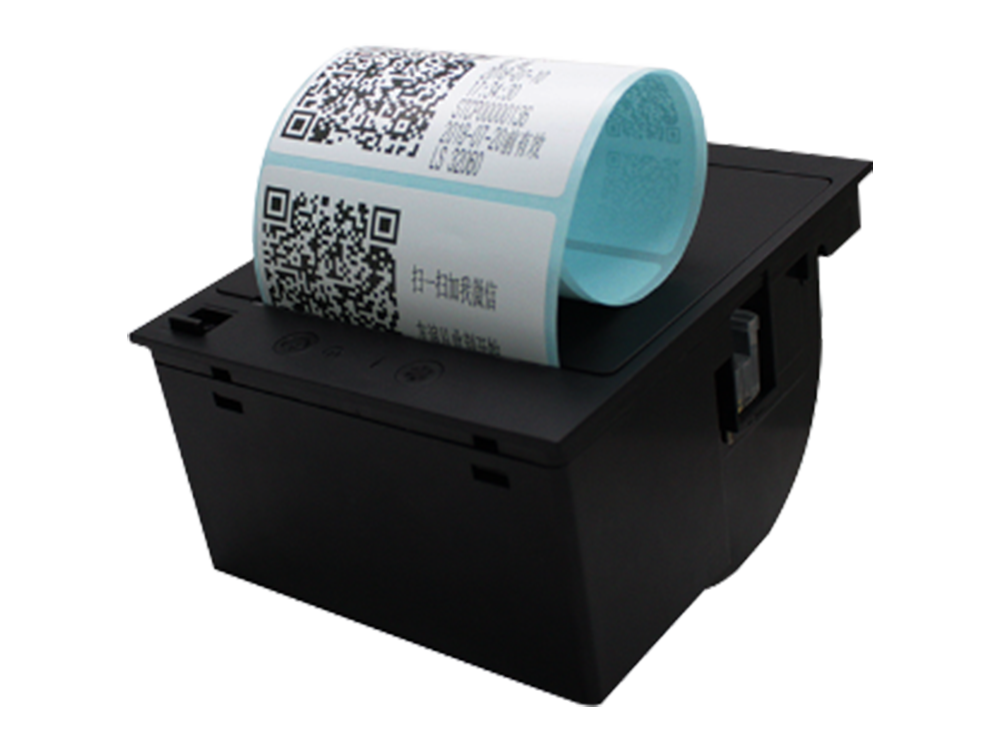

Printing type:Ticket/tag switchable mode

Specification parameters:24V voltage supply

Communication interface:RS232+USB

Appearance size:132*114.8*86.4MM

Product features:Support status reply function, automatic paper cutting (half cut/full cut), 80MM large paper bin, adjustable label width of 43-80MM, and easy to pack paper structure design

Secondary development:supports controlling printing on Linux, Android, PLC, Raspberry Pi, Windows, microcontrollers, etc

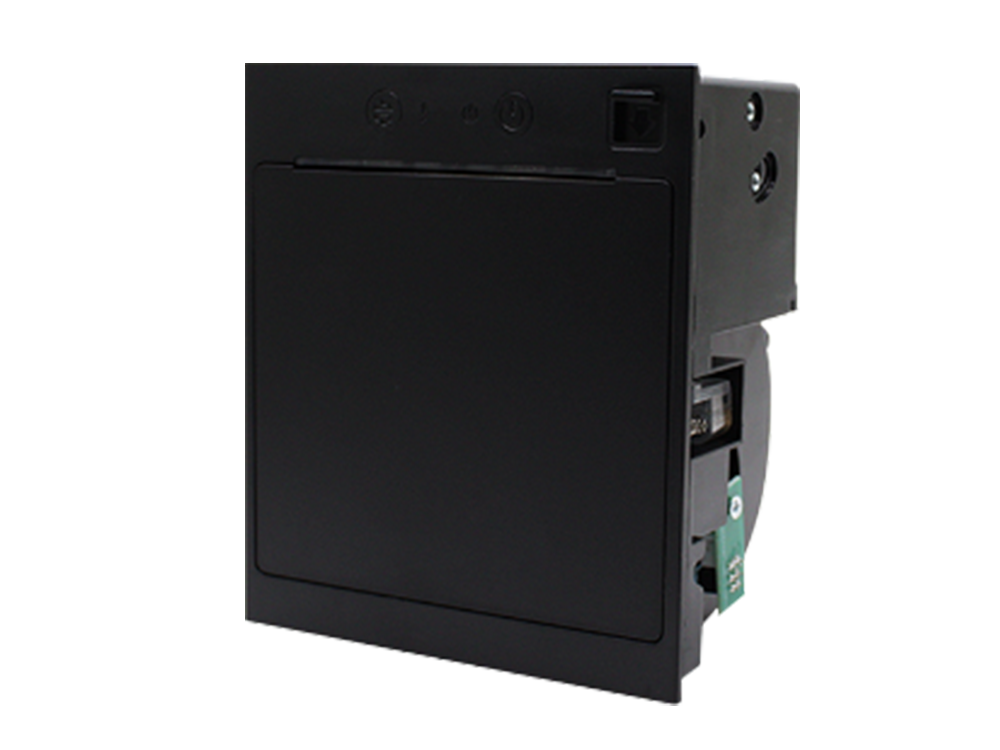

80MM embedded thermal printer I automatic paper cutting

80MM embedded thermal printer I automatic paper cutting

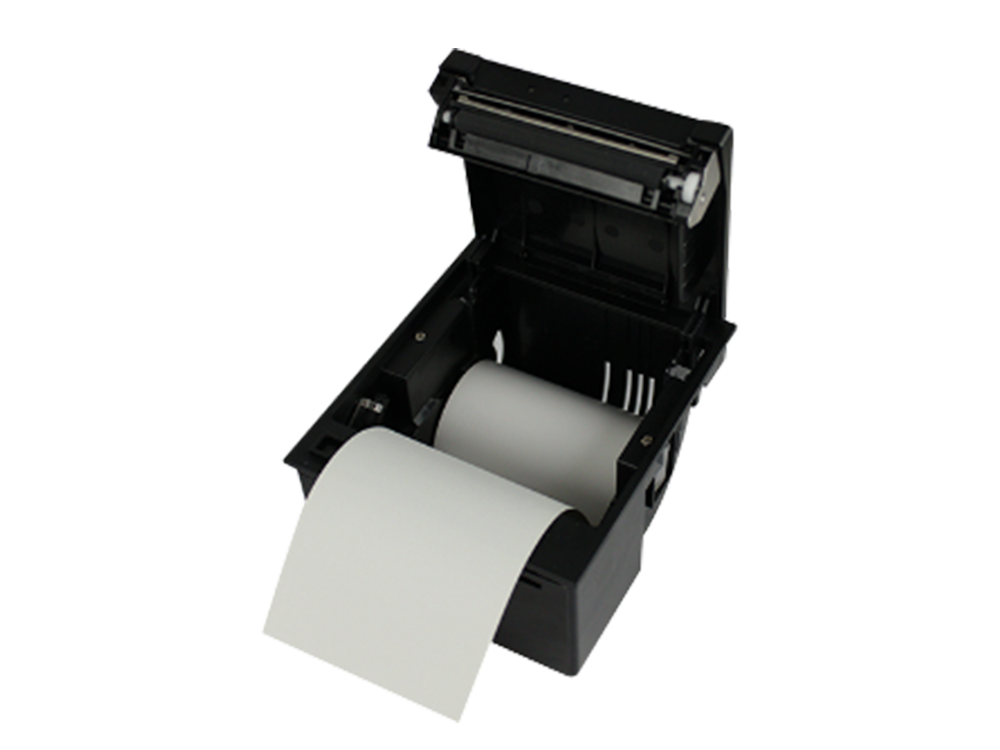

It has a simple appearance and a simple design that makes it easy for you to operate and change paper quickly, saving you every minute and second. It does not require carbon tape, color tape, or ink, and uses thermal technology for printing. It has rich interfaces and RS232+USB, making it more convenient for you to use.

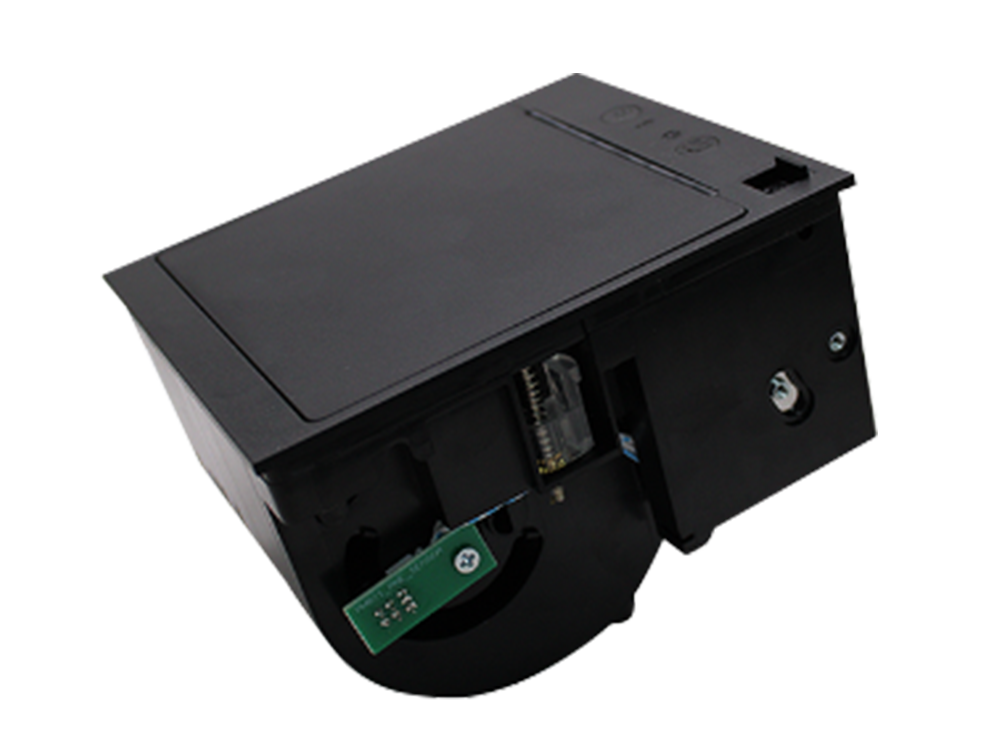

80MM embedded thermal printer I automatic paper cutting

80MM embedded thermal printer I automatic paper cutting

It has a dual mode of tag/receipt, which can meet various needs in your daily life. It supports status reply function, automatic paper cutting (half cut/full cut) 80mm large paper bin, adjustable width of 43-80mm tags, and also supports control printing on Linux, Android, PLC, Raspberry Pi, Windows, microcontroller, and other devices.

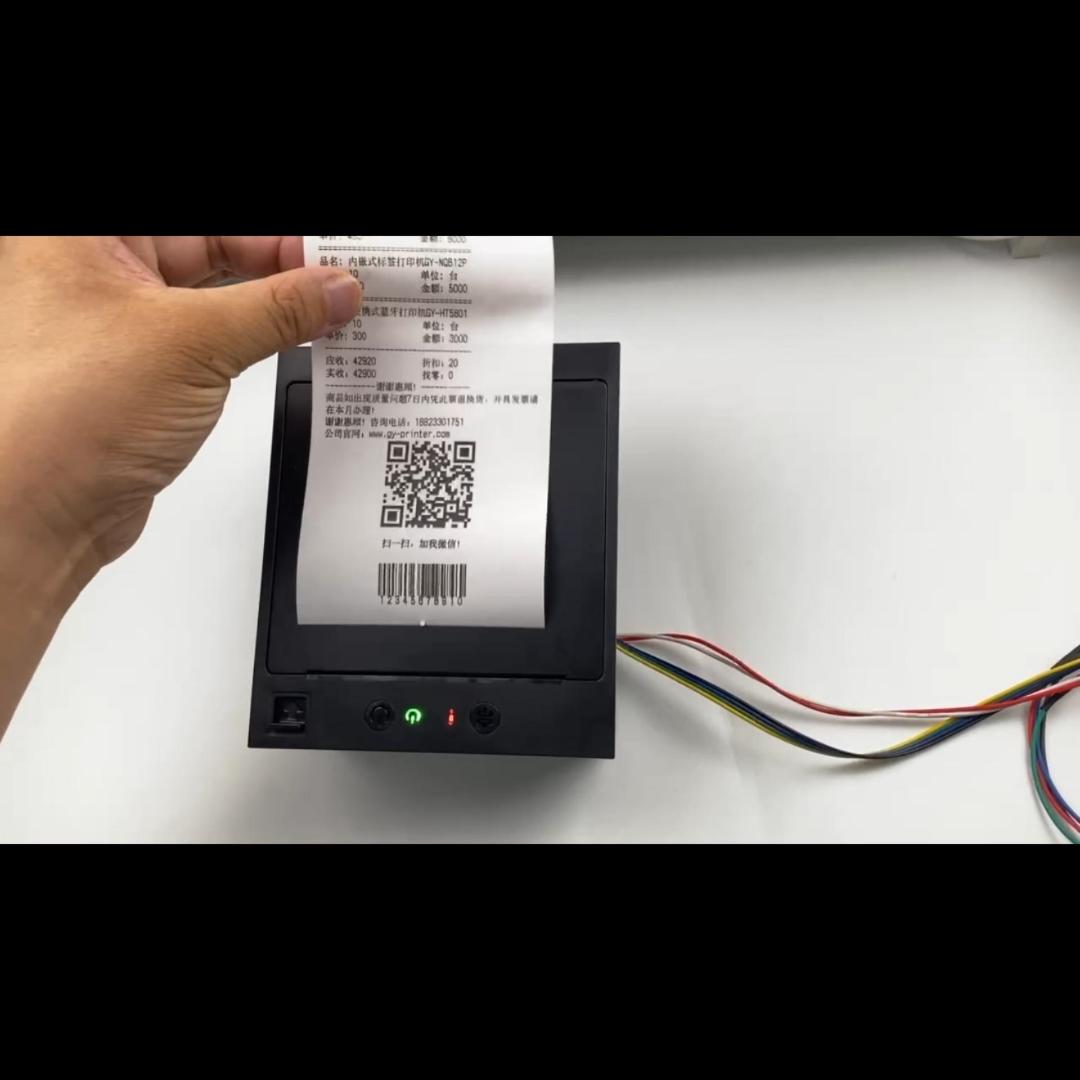

Video introduction

80MM embedded thermal printer I automatic paper cutting
80MM embedded thermal printer I automatic paper cutting

Parameter

Basic information

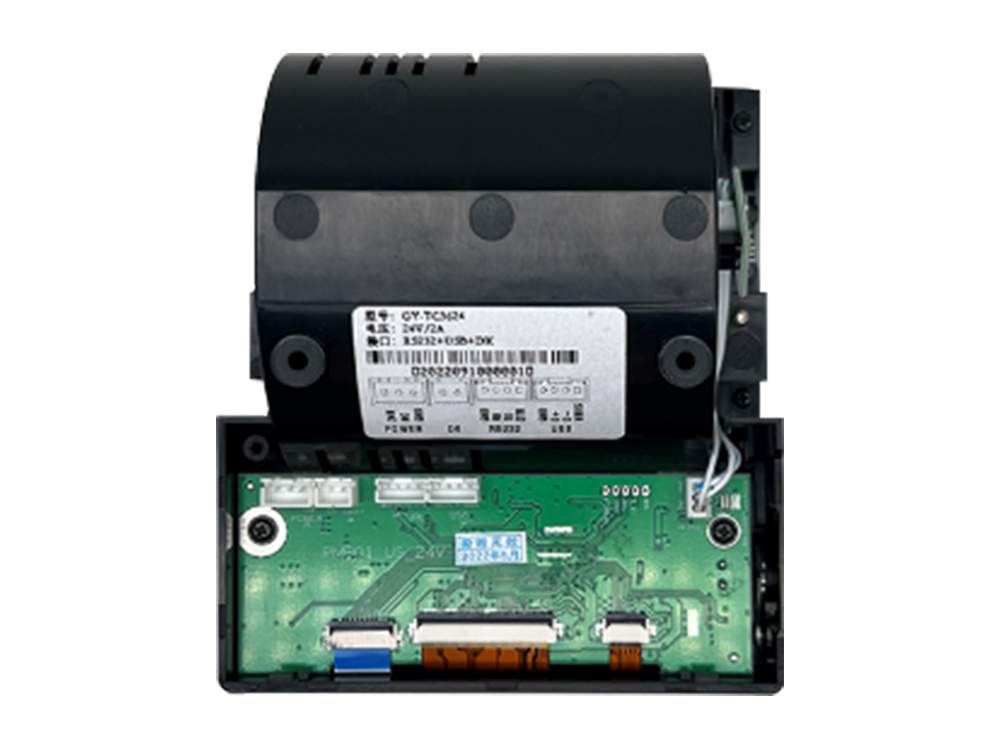

Product name GY-TC3624
Printing type Ticket/tag switchable mode
Specification parameters 24V voltage supply
Communication interface RS232+USB
Appearance dimensions 132 * 114.8 * 86.4MM

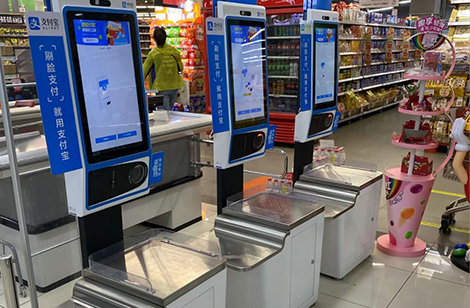

Usage scenario Unattended self-service devices
Printing speed 150MM/S
Product Usage Thermal label/ticket printing in various fields
Product features Support status reply function, automatic paper cutting (half cut/full cut), 80MM large paper bin, adjustable width of 43-80MM labels, and easy to pack paper structure design
Secondary development Supports controlling printing on Linux, Android, PLC, Raspberry Pi, Windows, microcontrollers, and more

Details Of Accessories

80MM embedded thermal printer I automatic paper cutting

Standard Accessories

Printer * 1

Printer * 1

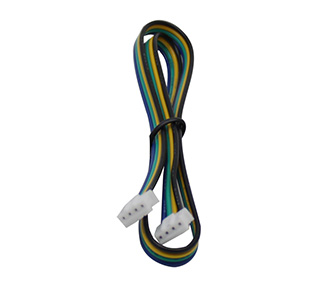

4PIN serial cable

4PIN serial cable

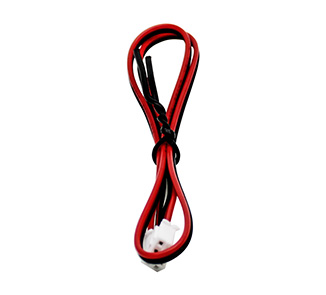

2PIN power cord

2PIN power cord

2PIN power cord

Optional Accessories

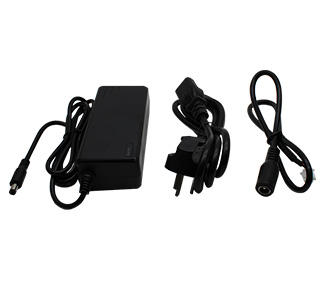

24V2.5A power adapter+Pinzi triangle power cord+XH2.54 2PIN DC power cord

24V2.5A power adapter+Pinzi triangle power cord+XH2.54 2PIN DC power cord

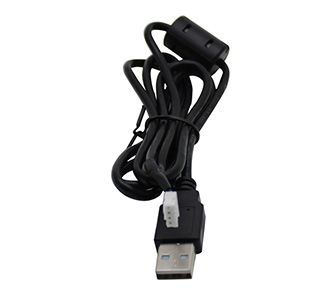

4PIN USB data cable

4PIN USB data cable

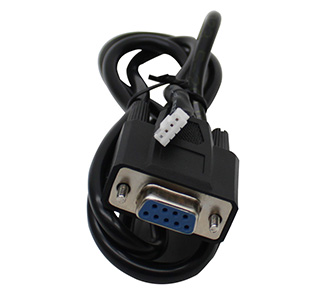

4PIN DB9 serial cable

4PIN DB9 serial cable

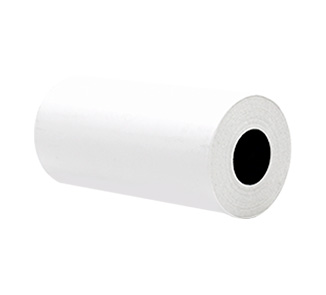

80x38 thermal sensitive small ticket paper roll

80x38 thermal sensitive small ticket paper roll

Data Download

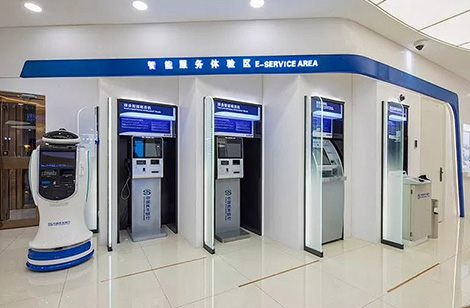

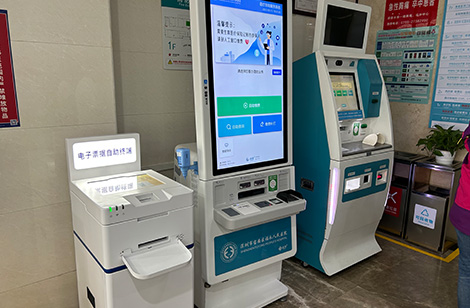

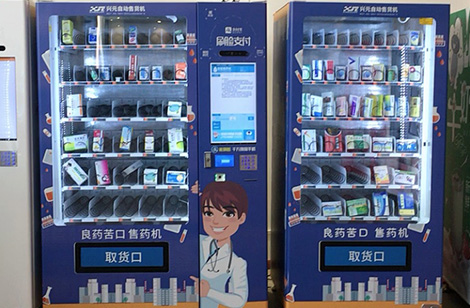

Application Area

Common Problem

  • How to connect the serial port of the printer?

    All of our integrated printers (products that need to be integrated into the device) have a232serial port or TTL serial port with 4 pins, defined as TX, RX, GND, and DTR. Currentlytheactual amount of data printed is not large, usually using 3 lines, which are TX, RX. andGND
  • After using the printer for a period of time, it may not print clearly. ls there no ink left?

    No, this type of thermosensitive printer does not require consumables such as ink, toner.orribbons. The color development principle relies on the printer's movement heating to makethethermosensitive paper, and the color development agent on top of it produces the colorthatwe see as a small ticket. The reason for unclear printing of thermal printers is mostlyrelatedto the thermal color agent coating of thermal paper. However, cheap thermal paper onthemarket has poor thermal color agent, resulting in blurry printing and short retention time
  • What is the situation of unclear printing effect?

    1. First, troubleshoot the issue with the printer itself. Open the paper compartment coverandcheck for dirt on the rollers and print head. lf not, troubleshoot the issue. lf so, gently cleanitup! 2. Check if there is moisture on the paper roll. lf not, it can also be ruled out! 3. it's justthatthe current of the power supply is not enough, and there is a possibility of virtual
  • Do l need to install a driver when printing via USB on a computer?

    lf necessary, you can control printing through the USB on the computer side. You need toinstall a printer driver, and then call the original driver to print when the software controls, justlike the principle of calling the local laser printer or inkjet printer after the WORD is edited!Using driver printing, there is no need to worry about the printer's instruction manual, but
