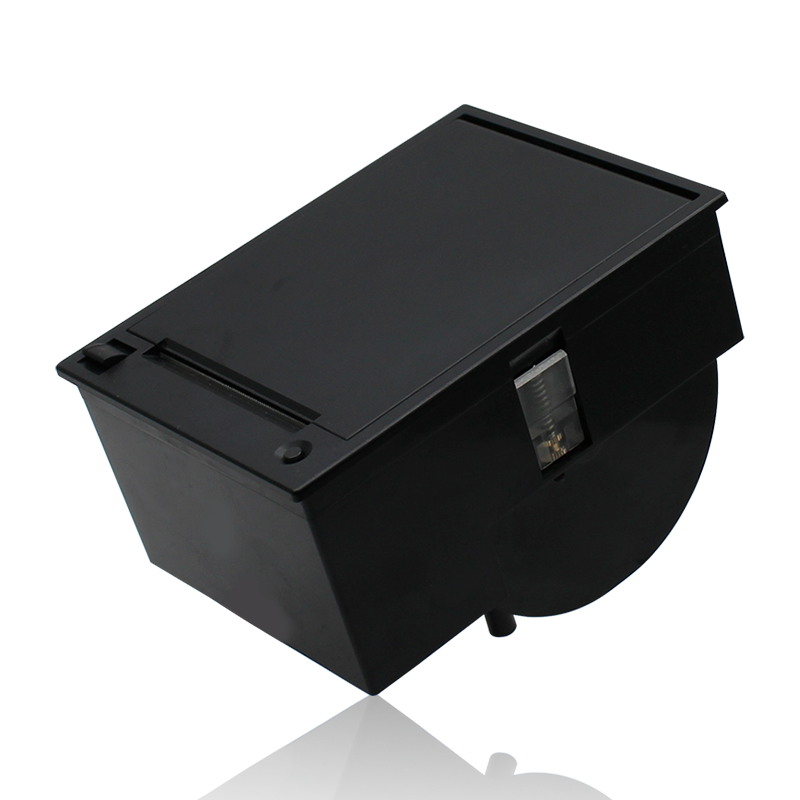

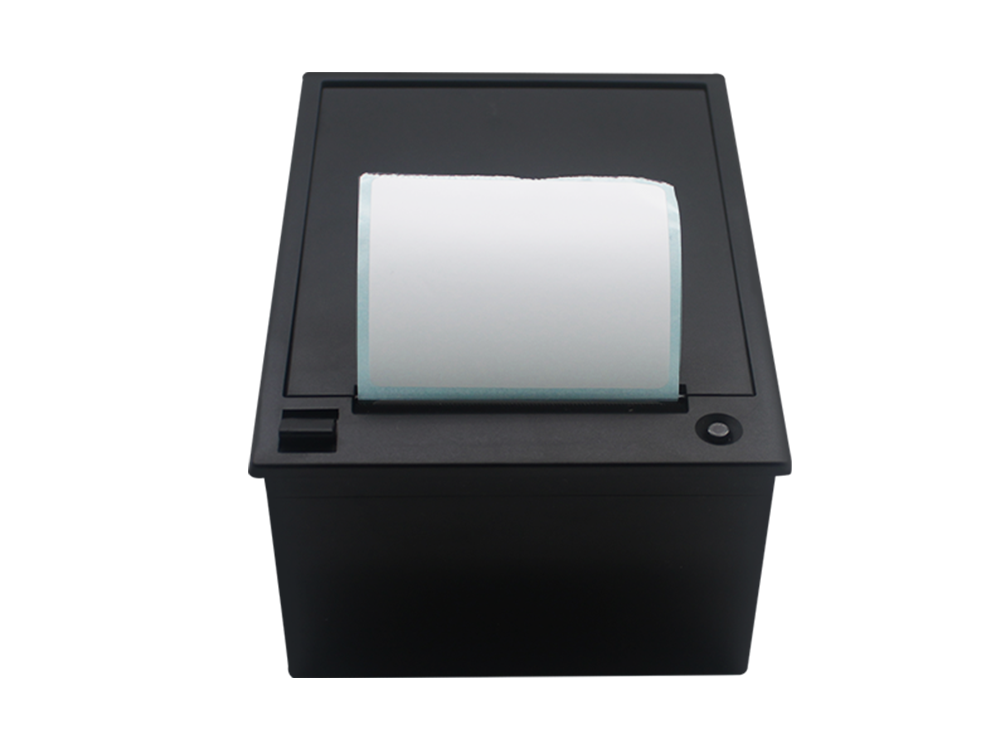

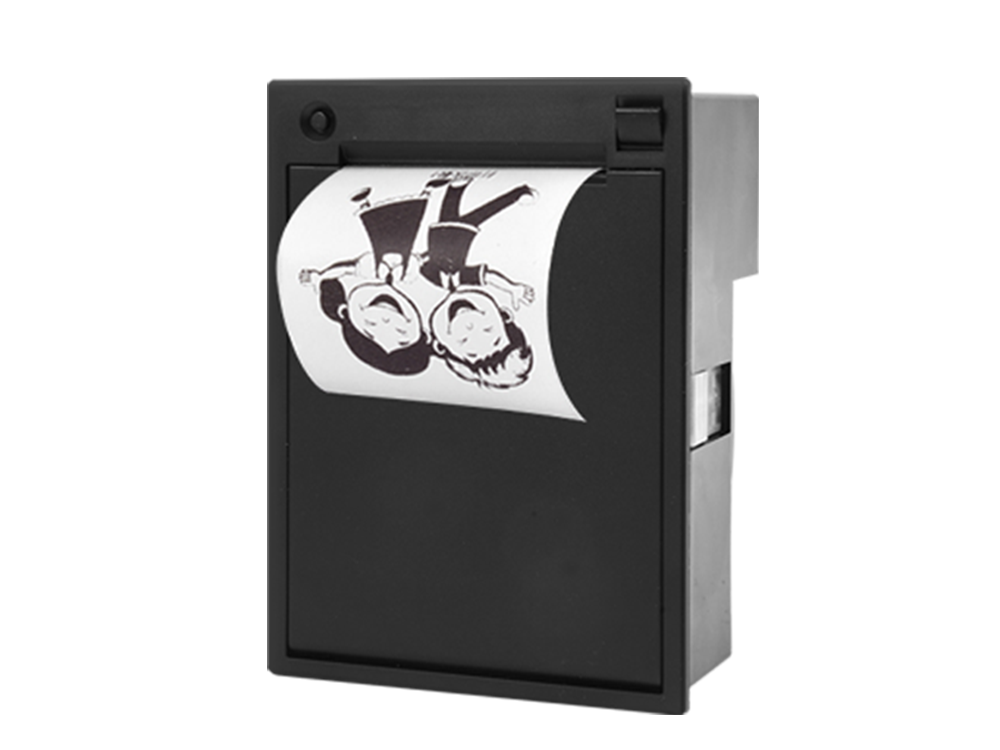

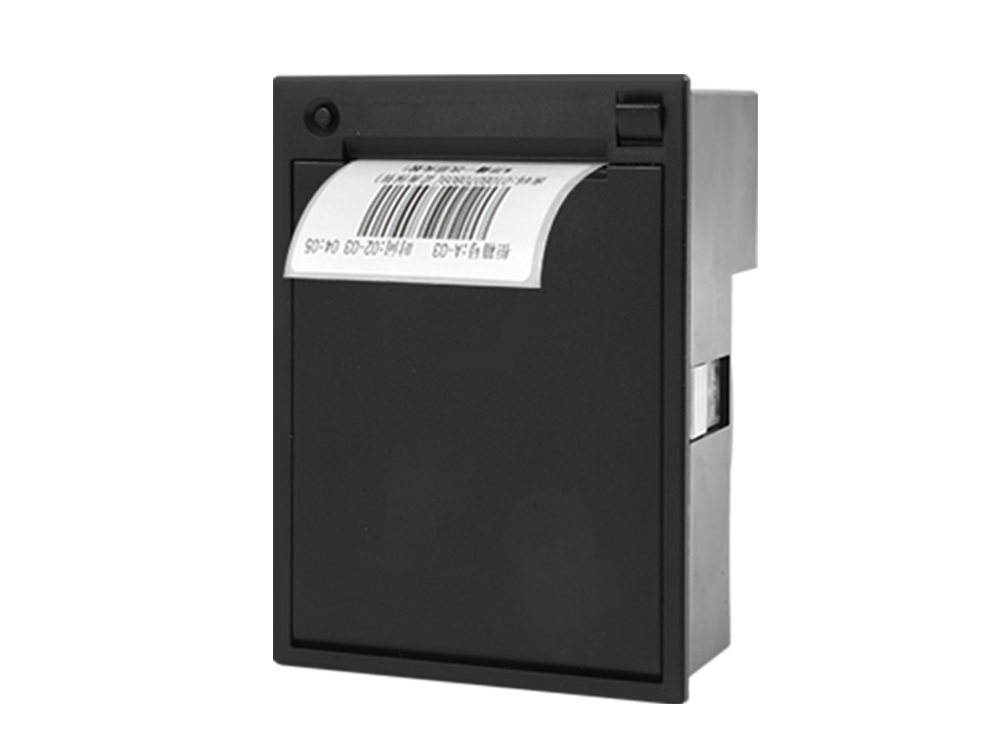

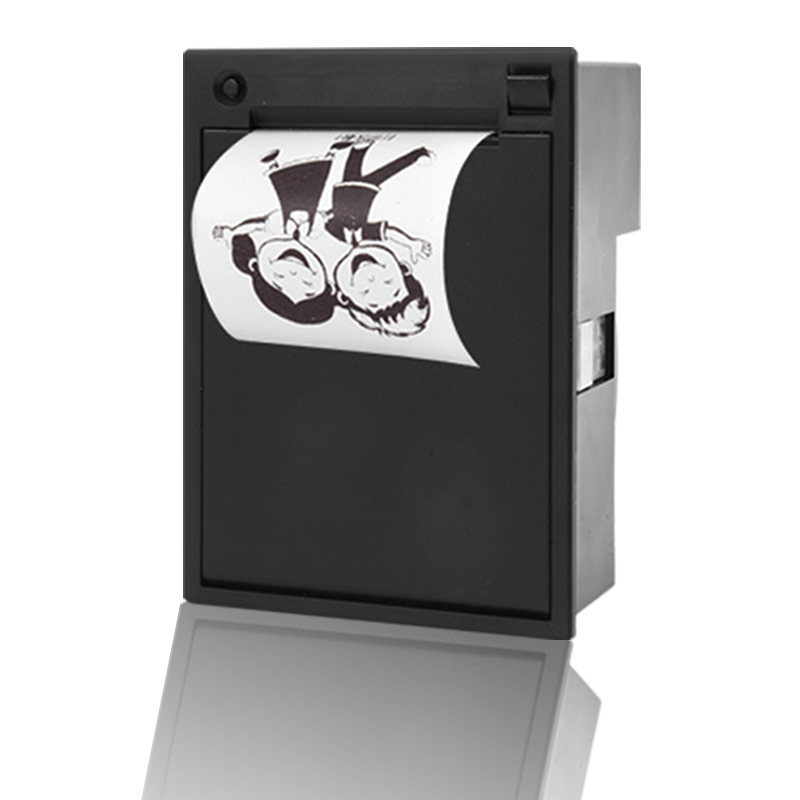

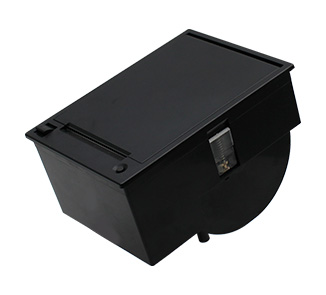

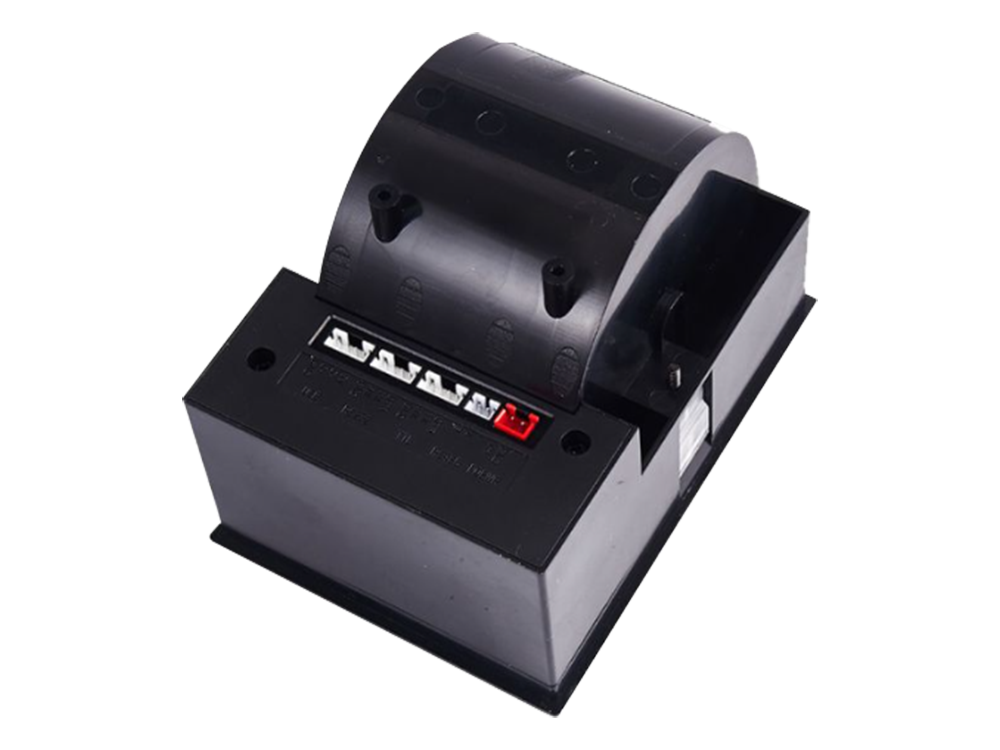

58MM embedded thermal printer | manual paper tearing

This is a 58MM panel type thermal printer designed specifically for system and hardware integrators. It has an 80MM large paper compartment, eliminating the need for frequent paper changes, fast printing speed, clear printing, and dual printing of small tickets/labels to meet your various needs. No need for carbon tape, no need for color tape, no need for ink, thermal technology printing.

Printing type：Ticket/tag switchable mode

Communication interface :RS232+TTL+USB+485 interface

Appearance dimensions:125*92*84.6MM

Product Usage:Thermal label printing in various fields

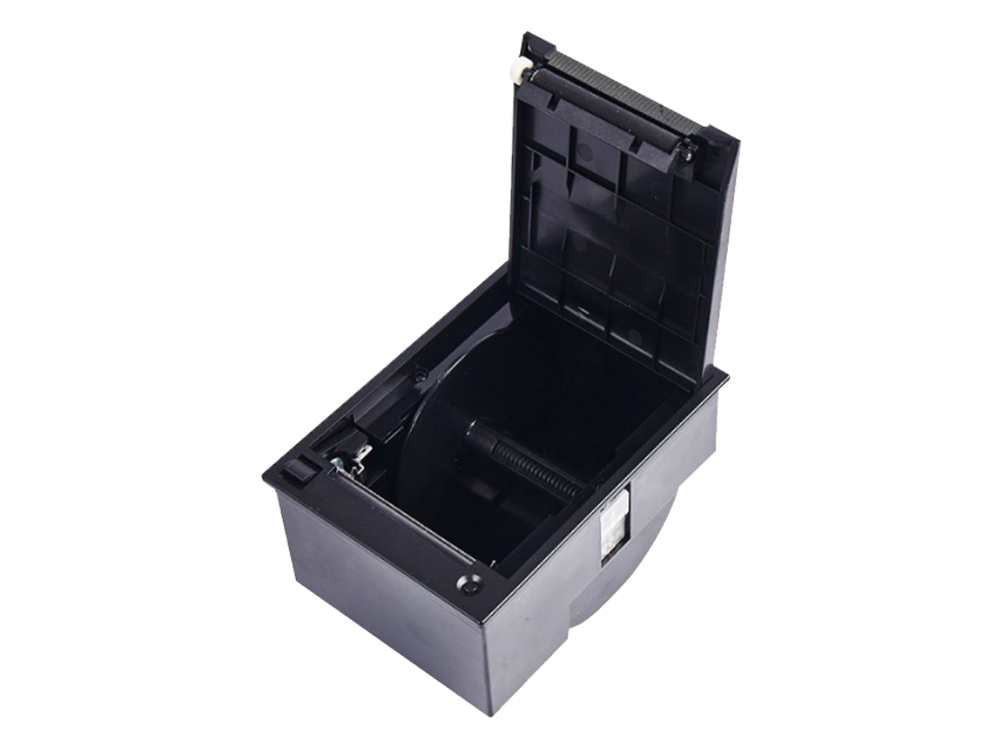

Product features:Support status reply function, manual paper tearing, 80MM large paper bin, adjustable label width of 25-55MM, and easy to pack paper structure design

Secondary development:Supports controlling printing on Linux, Android, PLC, Raspberry Pi, Windows, microcontrollers, and more

: 58mm panel thermal printer

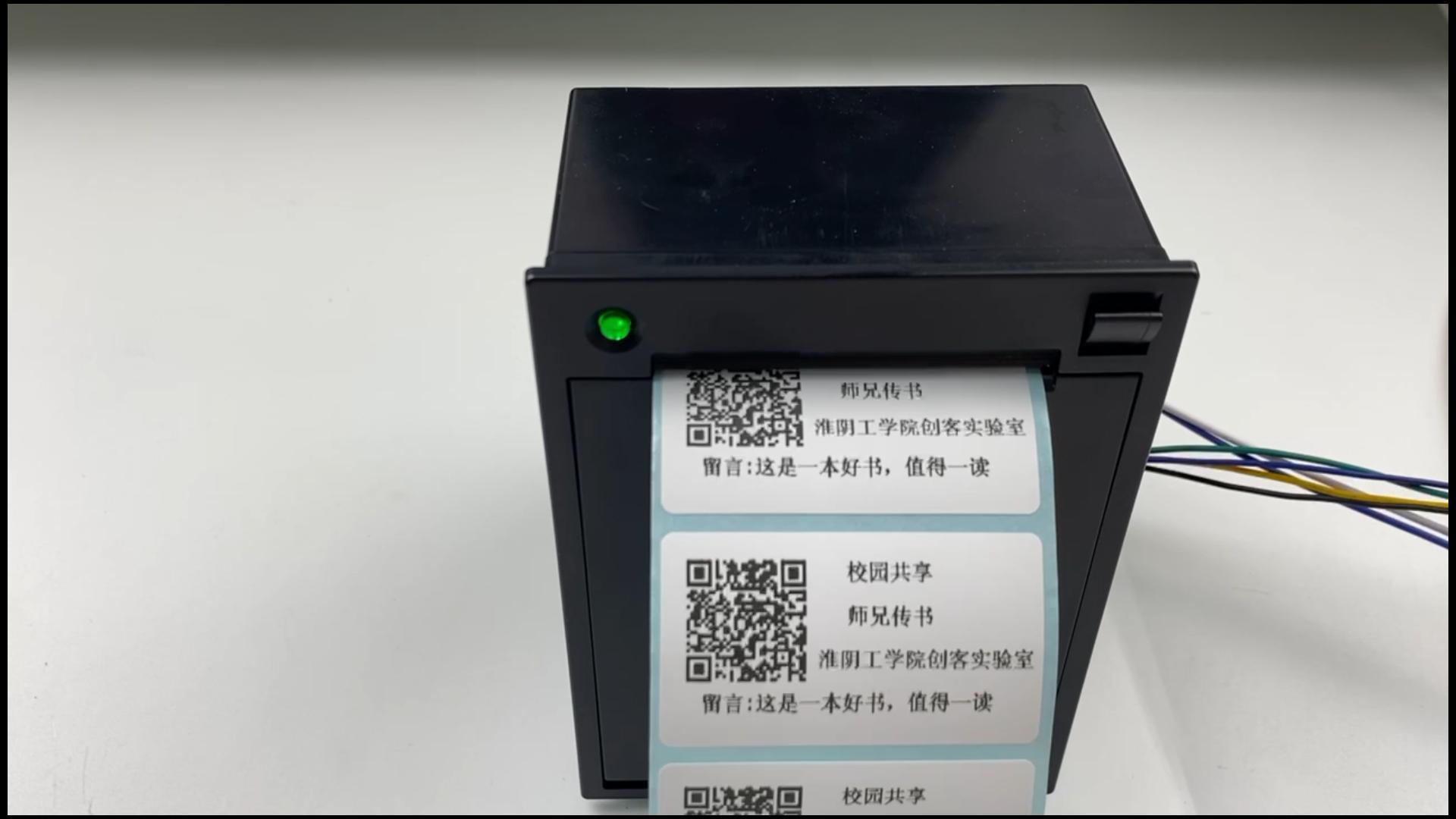

Label/dual print receipt, clear printing, fast printing speed of 90MM/S, no need for carbon tape, no need for color tape, no need for ink, thermal technology printing, support for PLC/industrial touch screen/Android/microcontroller/Raspberry Pi/Windows system secondary development, specially designed for medical testing equipment, upgraded quality, stronger performance

: 58mm panel thermal printer

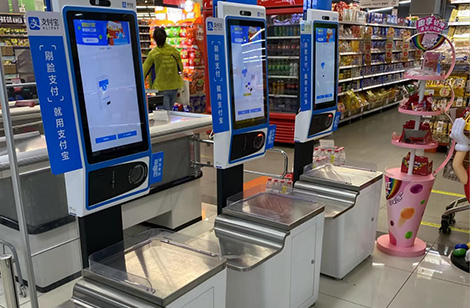

The Fangzheng design/front panel device meets the needs of more detection equipment or small self-service devices. The wide voltage design adopts 9-24V range wide voltage input/stable power supply/free conversion/intelligent security support pre stored templates. Fixed and unchanged content can be made into templates and stored in the printer. When used, only the template and variable data need to be called to reduce the amount of data issued and improve efficiency

Parameter

Basic information
GY-EP280T	58mm panel thermal printer
Printing type	Ticket/tag switchable mode
Specification parameters	9-24V wide voltage power supply
communication interface	RS232/TTL+USB+485 interface
Appearance dimensions	1259284.6MM
Appearance color	Black/white is optional, and colors can also be customized
Usage scenarios	Indoor use
Printing speed	90MM/S
Product Usage	Thermal label printing in various fields
Product features	Support status reply function, manual paper tearing, 80MM large paper bin, adjustable label width of 25-55MM, and easy to pack paper structure design
Secondary development	Supports controlling printing on Linux, Android, PLC, Raspberry Pi, Windows, microcontrollers, and more

Data Download

Document name

Update Time：2024-06-26

File Size:9 KB

File Format:doc

Download

Document name

Update Time：2024-06-26

File Size:9 KB

File Format:doc

Download

Document name

Update Time：2024-06-26

File Size:9 KB

File Format:doc

Download

Document name

Update Time：2024-06-26

File Size:9 KB

File Format:doc

Download

Common Problem

How to connect the serial port of the printer?

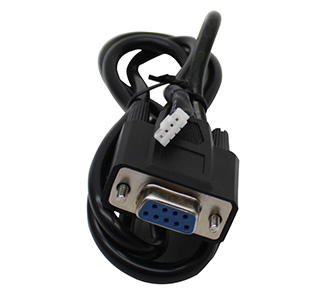

All of our integrated printers (products that need to be integrated into the device) have a232serial port or TTL serial port with 4 pins, defined as TX, RX, GND, and DTR. Currentlytheactual amount of data printed is not large, usually using 3 lines, which are TX, RX. andGND
After using the printer for a period of time, it may not print clearly. ls there no ink left?

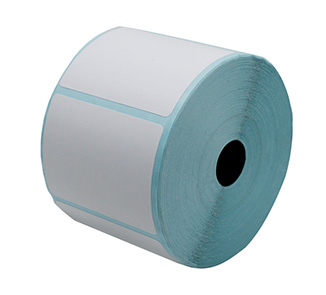

No, this type of thermosensitive printer does not require consumables such as ink, toner.orribbons. The color development principle relies on the printer's movement heating to makethethermosensitive paper, and the color development agent on top of it produces the colorthatwe see as a small ticket. The reason for unclear printing of thermal printers is mostlyrelatedto the thermal color agent coating of thermal paper. However, cheap thermal paper onthemarket has poor thermal color agent, resulting in blurry printing and short retention time
What is the situation of unclear printing effect?

1. First, troubleshoot the issue with the printer itself. Open the paper compartment coverandcheck for dirt on the rollers and print head. lf not, troubleshoot the issue. lf so, gently cleanitup! 2. Check if there is moisture on the paper roll. lf not, it can also be ruled out! 3. it's justthatthe current of the power supply is not enough, and there is a possibility of virtual
Do l need to install a driver when printing via USB on a computer?

lf necessary, you can control printing through the USB on the computer side. You need toinstall a printer driver, and then call the original driver to print when the software controls, justlike the principle of calling the local laser printer or inkjet printer after the WORD is edited!Using driver printing, there is no need to worry about the printer's instruction manual, but
