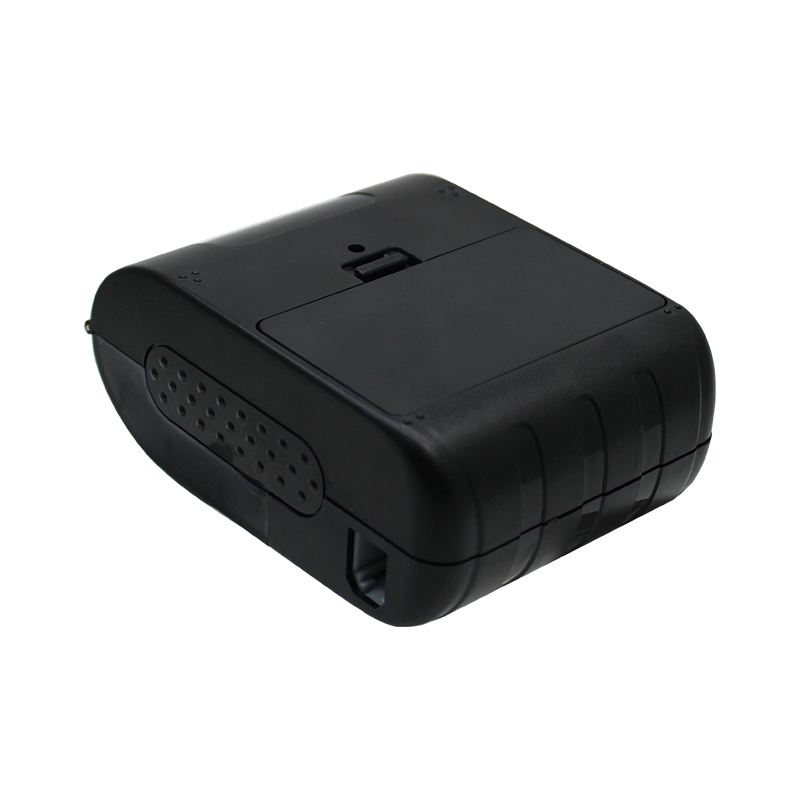

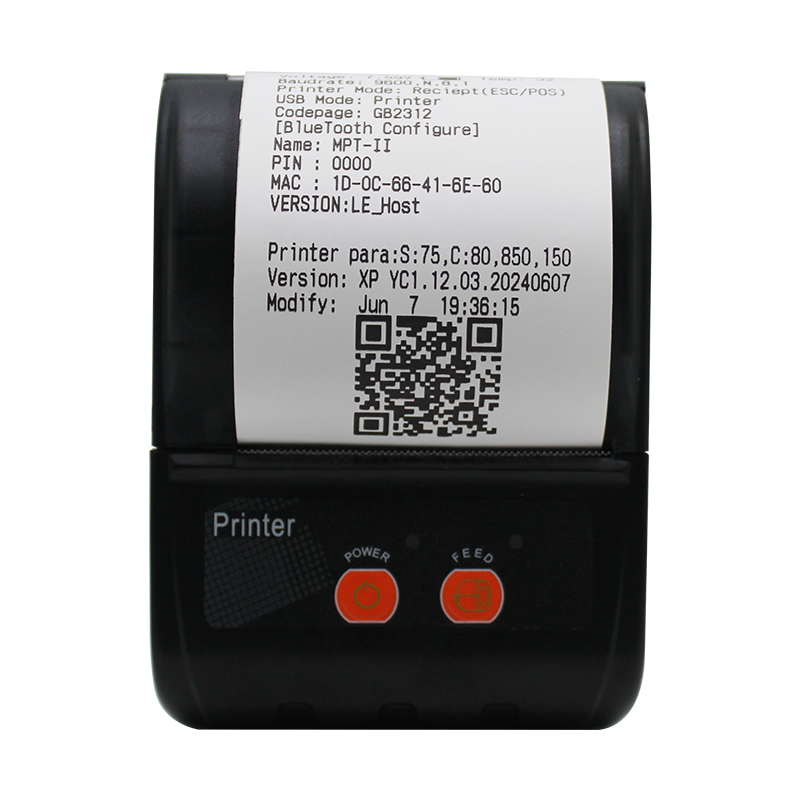

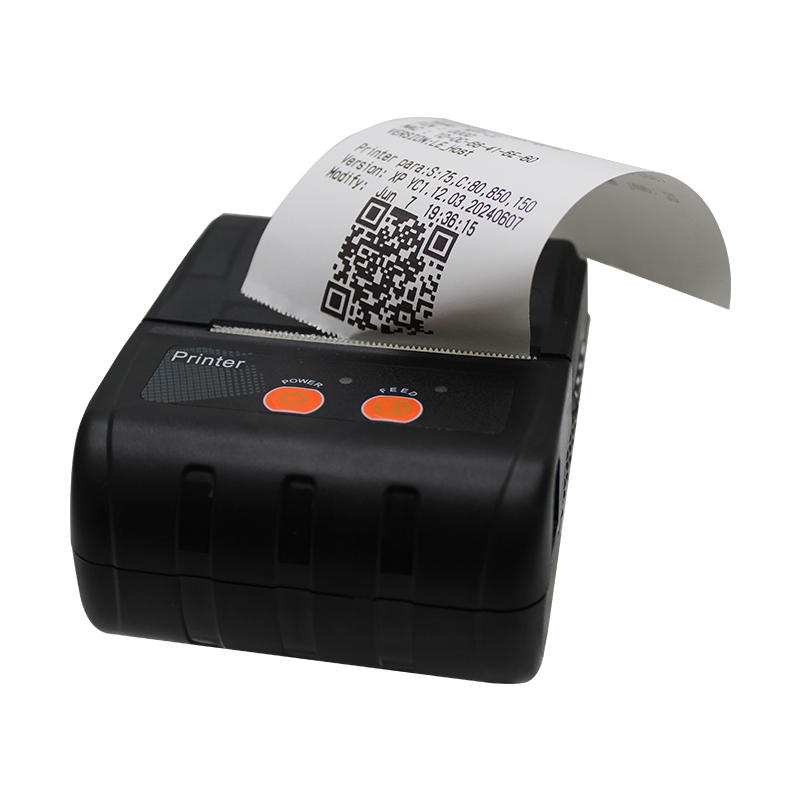

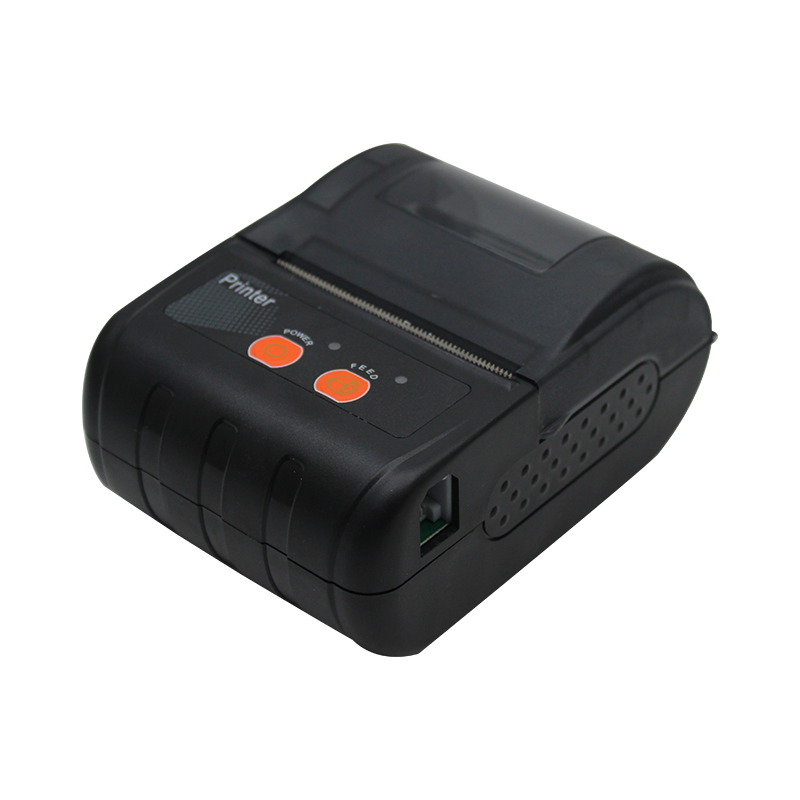

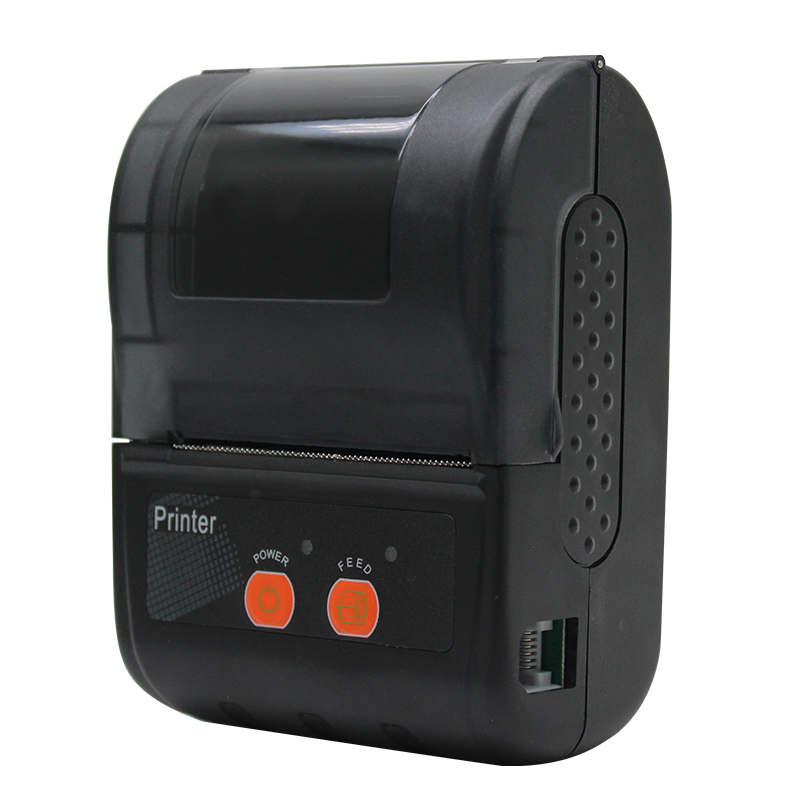

58MM portable thermal receipt printer

This is a 58MM thermal receipt printer, which is small in size and light in weight, making it easy to carry and not taking up a lot of space. Moreover, it has fast printing speed, clear printing, no need for carbon tape, ink, or color tape, and can be printed with only the required specifications of thermal paper. It has a simple appearance, so the operation is simple and easy to understand.

Printing method:Thermal dot matrix printing

Output mode:black and white

Resolving power:203DPI

Printing speed:60MM/S

Appearance dimensions:106*78*49MM

Communication methods:USB/Bluetooth

Support:Android/iOS/Windows

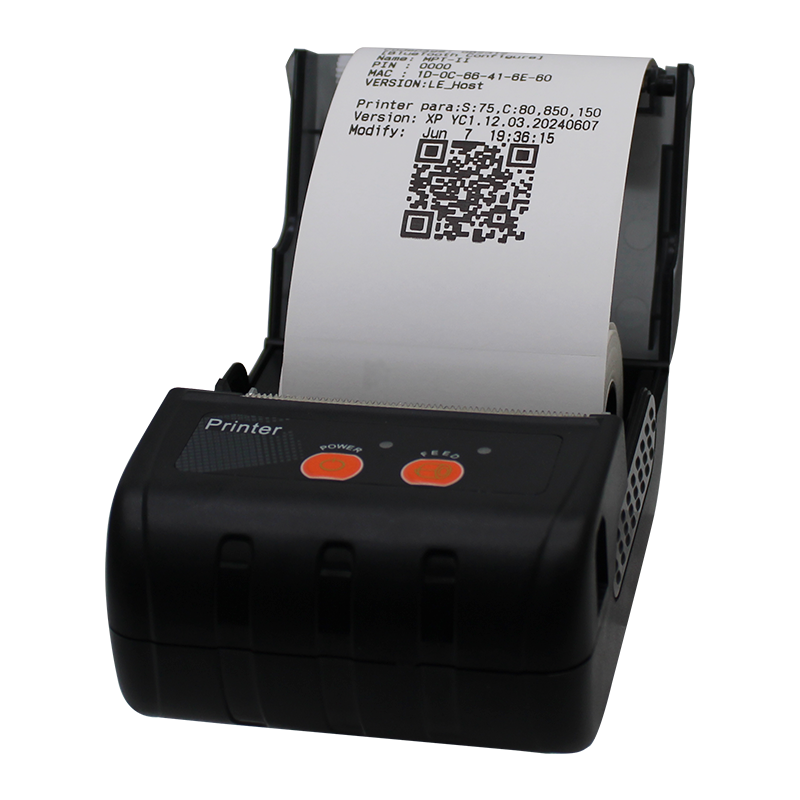

58MM thermal receipt printer

58MM thermal receipt printer

58MM thermal receipt printer, no need for carbon tape, no need for color tape, thermal technology printing. Small size, easy to carry, space saving, easy to operate, fast paper changing speed, supports Bluetooth/USB connection for printing.
58MM thermal receipt printer

58MM thermal receipt printer

58MM thermal receipt printer, fast printing speed, clear printing, 203DPI high-definition display, strong battery life, 2000MAH ultra large capacity battery, standby time of 100H, fast charging time of 3-4 hours.

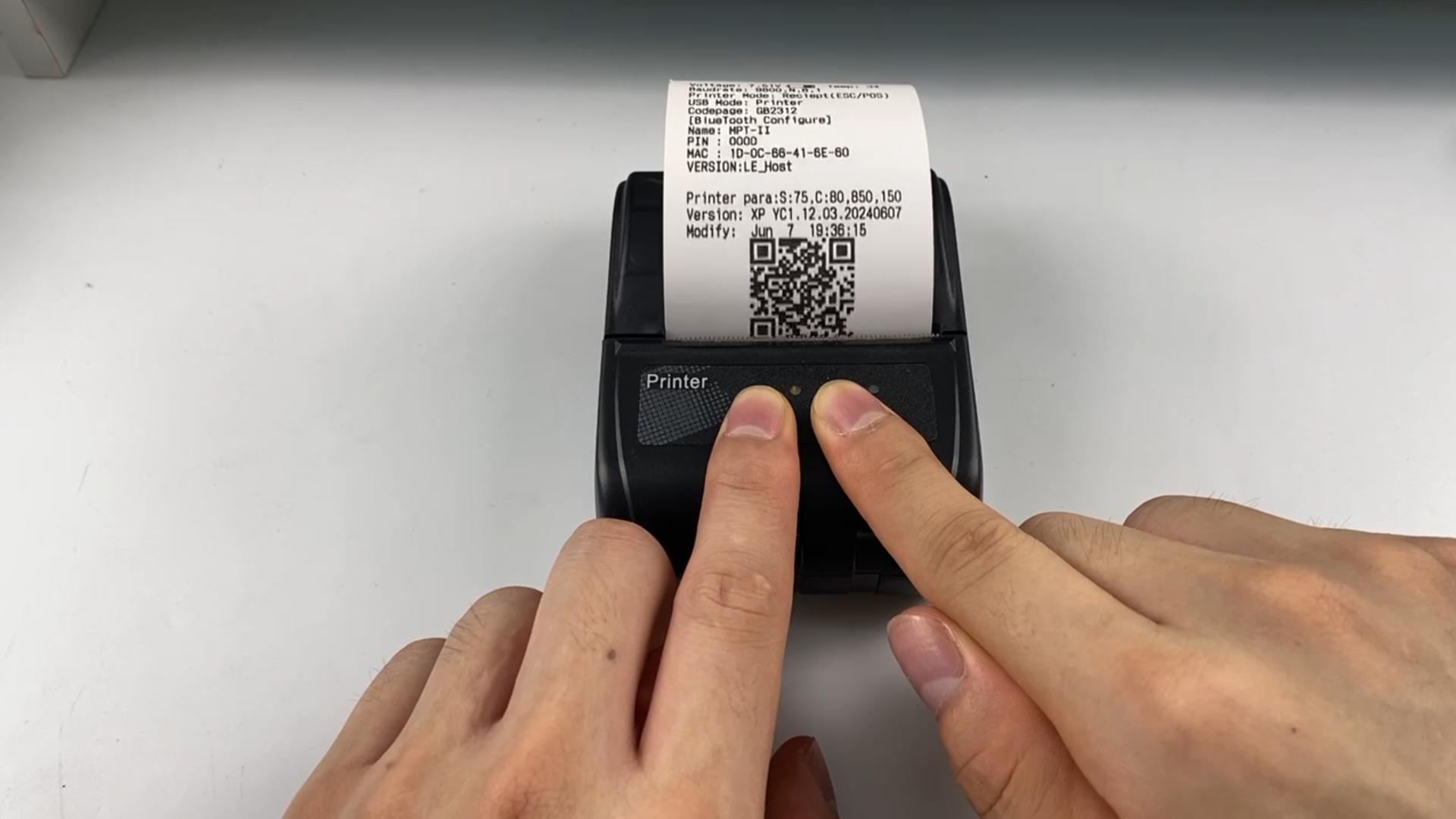

Video introduction

58MM thermal receipt printer
58MM thermal receipt printer

Parameter

Basic information
Product model GY-HE5801
Printing method Thermal dot matrix printing
Output mode black and white
Resolving power 203DPI
Printing speed 60MM/S
Appearance dimensions 106*78*49MM
Communication methods USB/Bluetooth
Full power printing 3-4H
Charging method Standby charging

Details Of Accessories

58MM thermal receipt printer

Standard Accessories

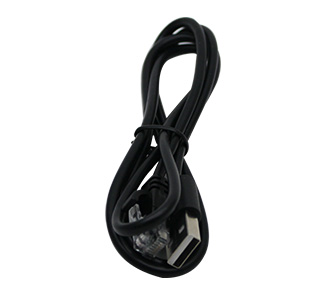

USB crystal head power connection cable*1

USB crystal head power connection cable*1

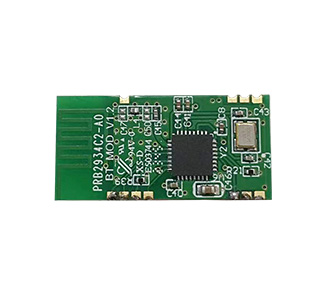

Bluetooth module*1

Bluetooth module*1

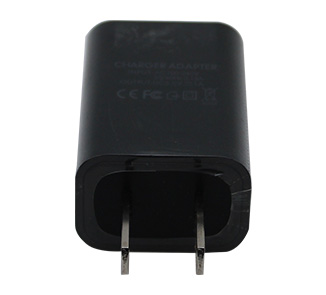

USB charger

USB charger

Product User Manual

Product User Manual

Product User Manual

Optional Accessories

Data Download

Application Area

Common Problem

  • How to connect the serial port of the printer?

    All of our integrated printers (products that need to be integrated into the device) have a232serial port or TTL serial port with 4 pins, defined as TX, RX, GND, and DTR. Currentlytheactual amount of data printed is not large, usually using 3 lines, which are TX, RX. andGND
  • After using the printer for a period of time, it may not print clearly. ls there no ink left?

    No, this type of thermosensitive printer does not require consumables such as ink, toner.orribbons. The color development principle relies on the printer's movement heating to makethethermosensitive paper, and the color development agent on top of it produces the colorthatwe see as a small ticket. The reason for unclear printing of thermal printers is mostlyrelatedto the thermal color agent coating of thermal paper. However, cheap thermal paper onthemarket has poor thermal color agent, resulting in blurry printing and short retention time
  • What is the situation of unclear printing effect?

    1. First, troubleshoot the issue with the printer itself. Open the paper compartment coverandcheck for dirt on the rollers and print head. lf not, troubleshoot the issue. lf so, gently cleanitup! 2. Check if there is moisture on the paper roll. lf not, it can also be ruled out! 3. it's justthatthe current of the power supply is not enough, and there is a possibility of virtual
  • Do l need to install a driver when printing via USB on a computer?

    lf necessary, you can control printing through the USB on the computer side. You need toinstall a printer driver, and then call the original driver to print when the software controls, justlike the principle of calling the local laser printer or inkjet printer after the WORD is edited!Using driver printing, there is no need to worry about the printer's instruction manual, but
