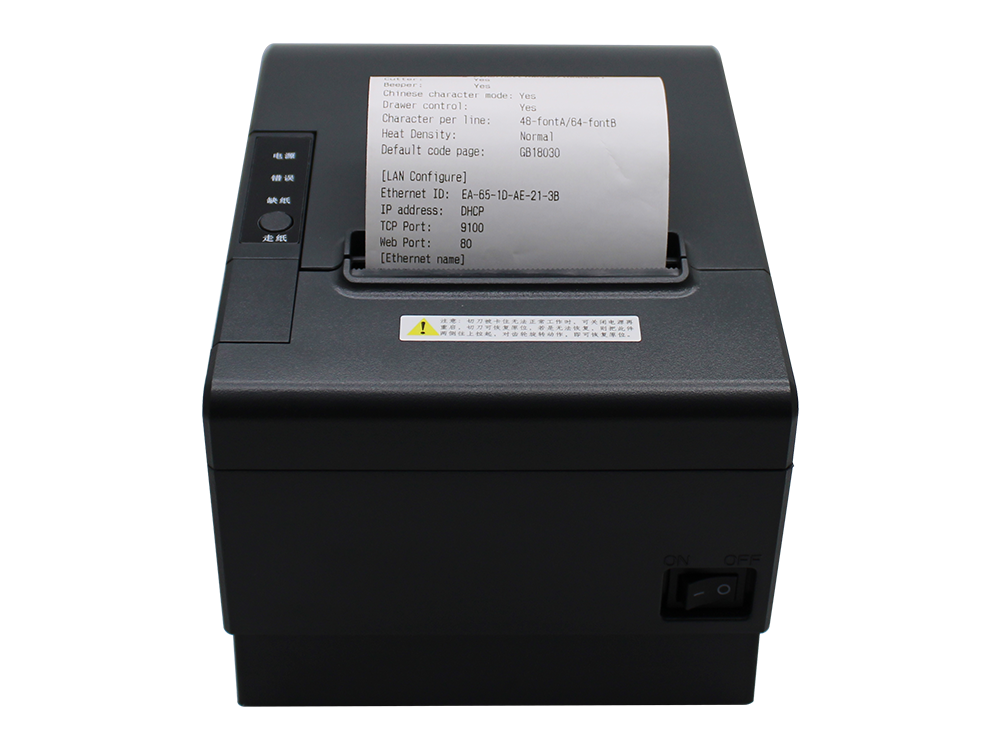

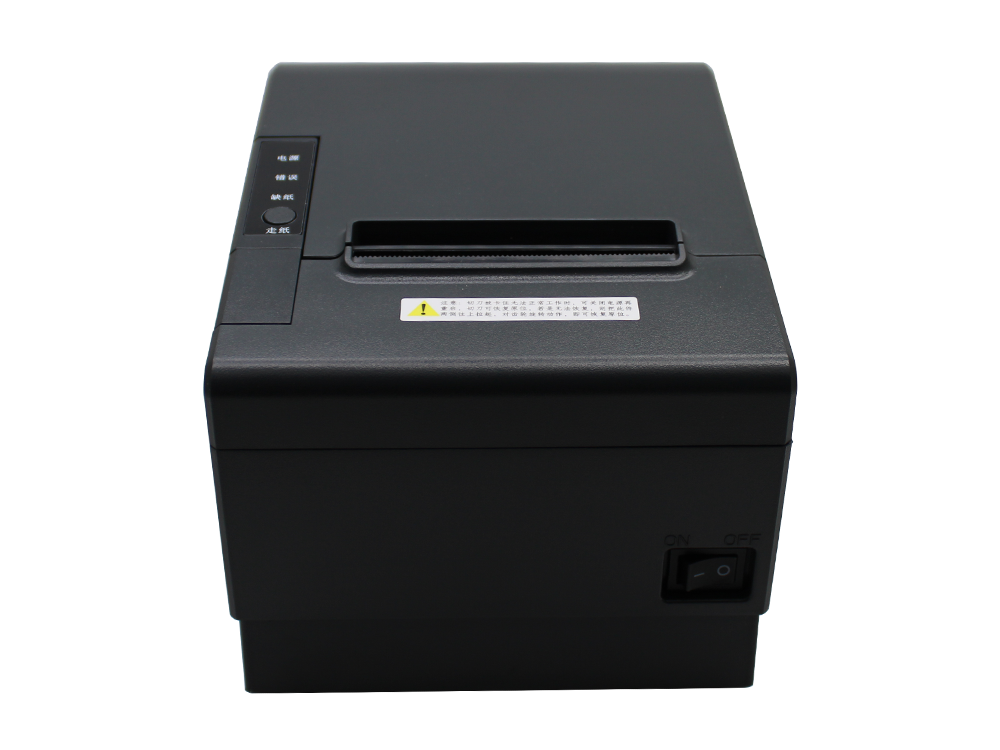

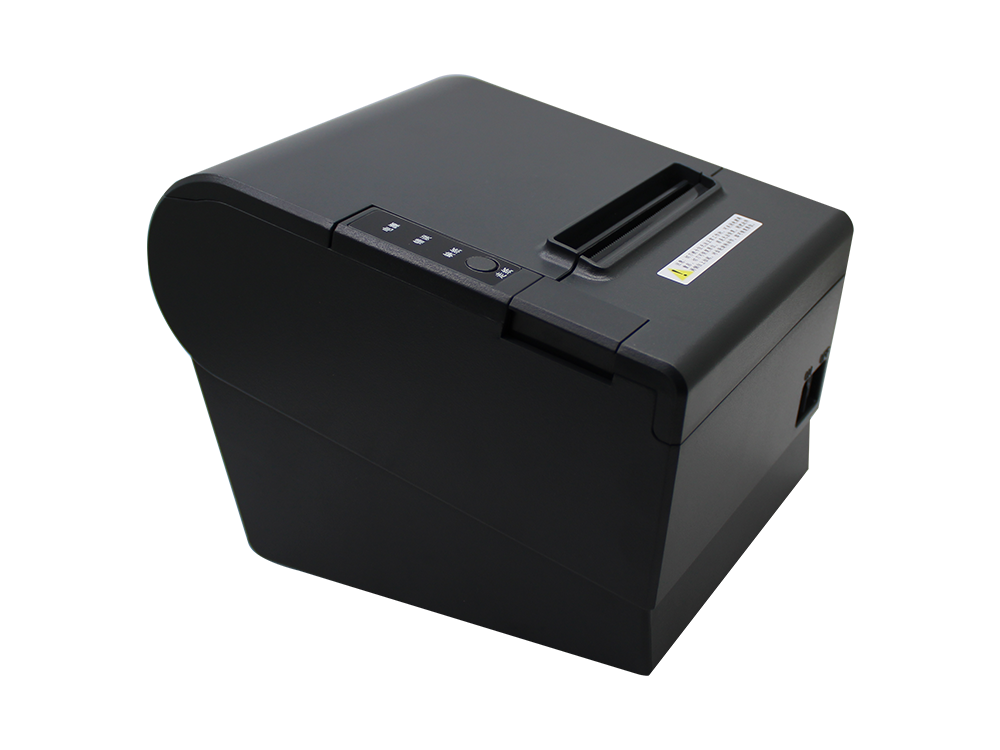

GY-CP801X

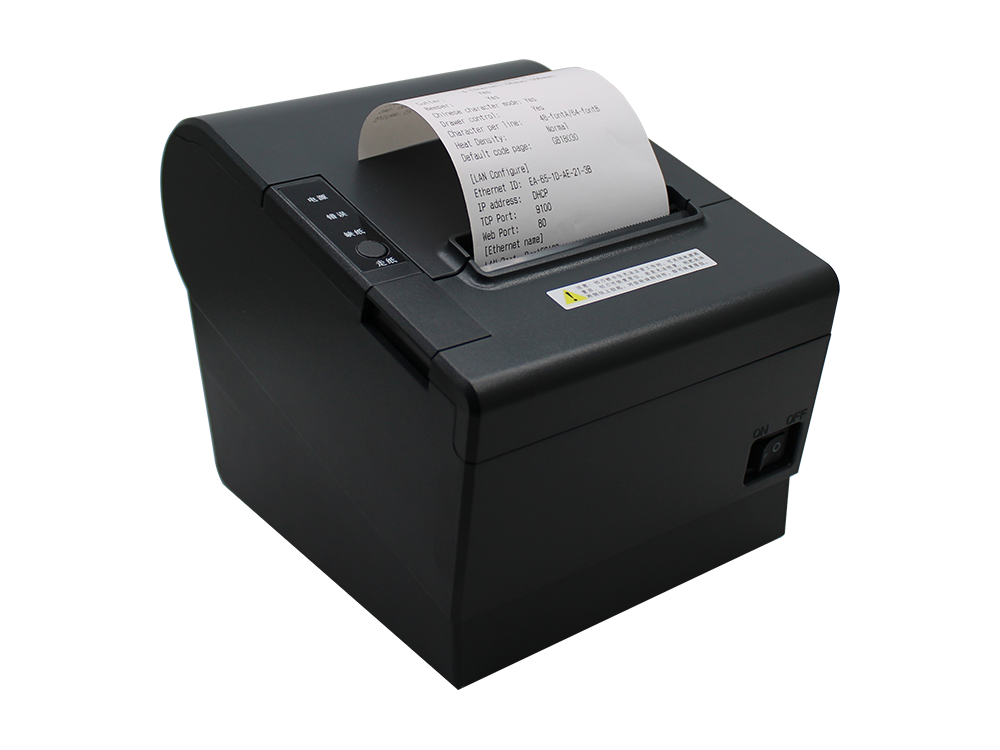

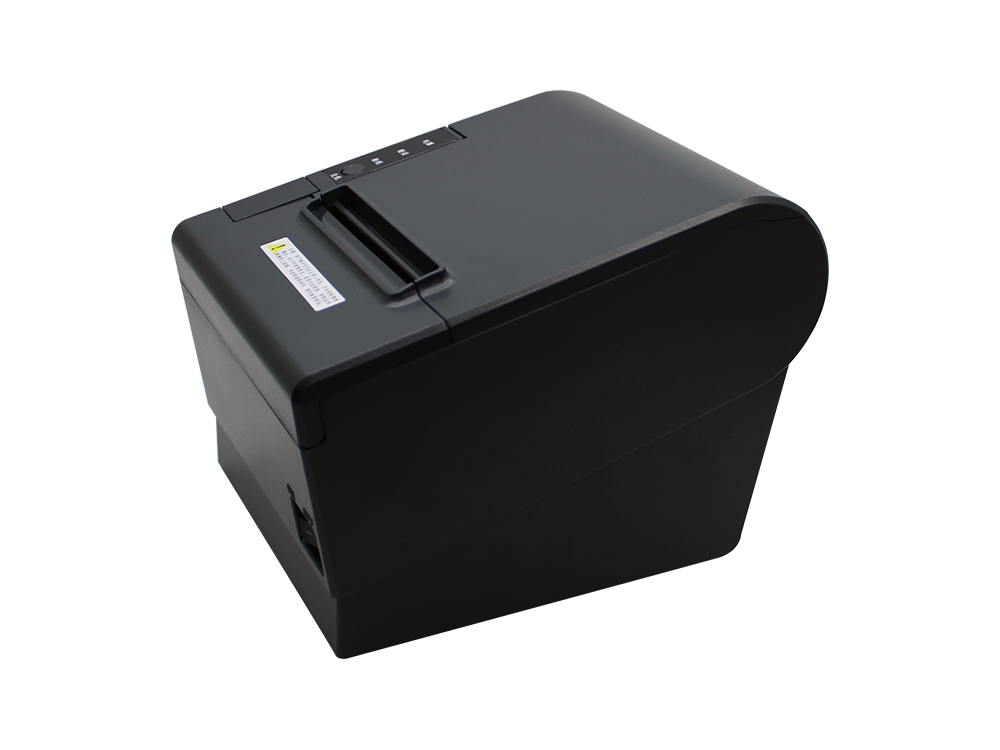

80MM thermal printer

This is an embedded label printer specially developed for various SCM/Android system/computer terminal control applications in industrial manufacturing and intelligent weighing scales. It is small in size, stable in performance and strong in scalability.

Printing type：Single ticket printing

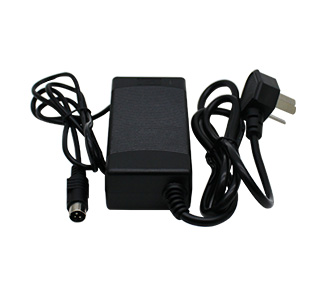

Specification parameters：24V2.5A power adapter power supply

Communication interface :USB+RS232+LAN interface

Printing speed：200MM/S

Paper cutting method：Automatic paper cutting

Appearance dimensions：145MM*245MM*95MM

: 80MM thermal printer

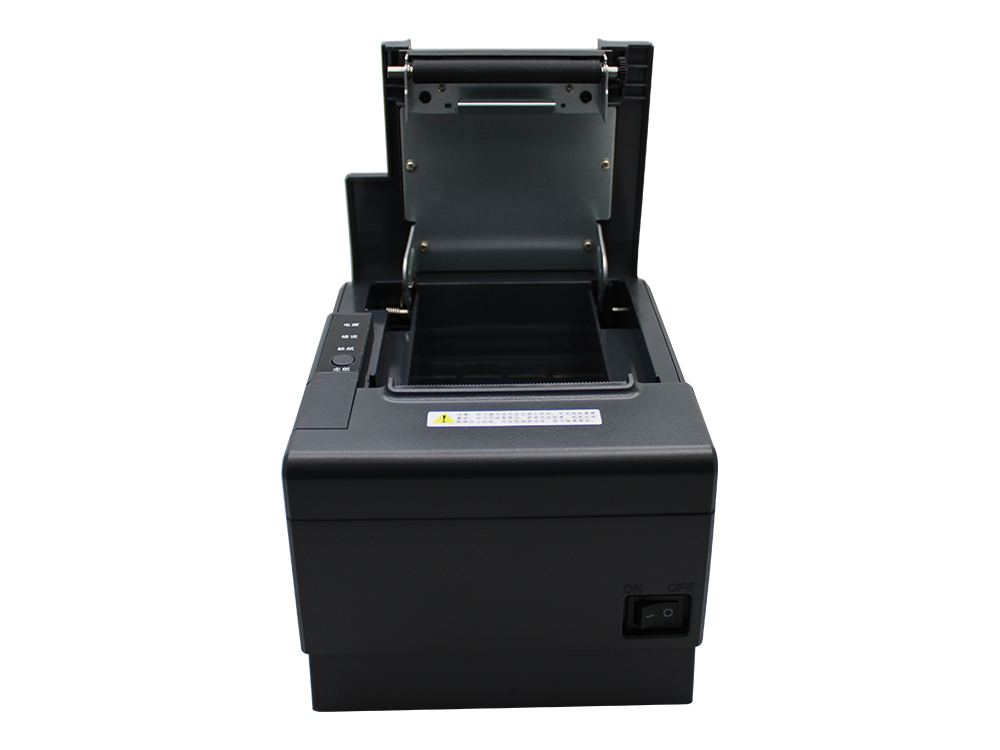

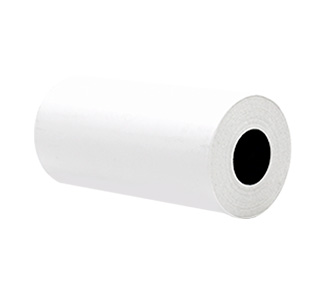

This is an 80MM automatic paper cutting thermal printer, which is easy to operate, easy to load, and convenient to use. Simply put the thermal paper into the paper slot, press the cover button next to it, open the cover, put in the thermal paper roll, and pull out a small piece of paper to cover the outside of the machine to print. Not only that, it has multiple interfaces, including USB+RS232+LAN interfaces, allowing you to handle different environments with ease.

: 80MM thermal printer

Using high-performance printing heads, the printing speed is fast, the printing is clear, and it comes with a built-in cutter for automatic paper cutting, saving you valuable time. It has a wide range of applications, such as catering, shopping malls, supermarkets, warehousing and other multiple venues.

Parameter

Basic information
Product name	80MM thermal printer
Product model	GY-CP801X
Communication interface	USB+RS232+LAN
Printing method	Thermal line printing
Printing speed	200MM/S
Print paper width	80MM
Automatic paper cutter	Full cut/Half cut
External dimensions	145MM245MM95MM

Data Download

Document name

Update Time：2022-11-28

File Size:9 KB

File Format:doc

Download

Common Problem

How to connect the serial port of the printer?

All of our integrated printers (products that need to be integrated into the device) have a232serial port or TTL serial port with 4 pins, defined as TX, RX, GND, and DTR. Currentlytheactual amount of data printed is not large, usually using 3 lines, which are TX, RX. andGND
After using the printer for a period of time, it may not print clearly. ls there no ink left?

No, this type of thermosensitive printer does not require consumables such as ink, toner.orribbons. The color development principle relies on the printer's movement heating to makethethermosensitive paper, and the color development agent on top of it produces the colorthatwe see as a small ticket. The reason for unclear printing of thermal printers is mostlyrelatedto the thermal color agent coating of thermal paper. However, cheap thermal paper onthemarket has poor thermal color agent, resulting in blurry printing and short retention time
What is the situation of unclear printing effect?

1. First, troubleshoot the issue with the printer itself. Open the paper compartment coverandcheck for dirt on the rollers and print head. lf not, troubleshoot the issue. lf so, gently cleanitup! 2. Check if there is moisture on the paper roll. lf not, it can also be ruled out! 3. it's justthatthe current of the power supply is not enough, and there is a possibility of virtual
Do l need to install a driver when printing via USB on a computer?

lf necessary, you can control printing through the USB on the computer side. You need toinstall a printer driver, and then call the original driver to print when the software controls, justlike the principle of calling the local laser printer or inkjet printer after the WORD is edited!Using driver printing, there is no need to worry about the printer's instruction manual, but

GY-CP801X

80MM thermal printer

80MM thermal printer

80MM thermal printer

Video introduction

Parameter

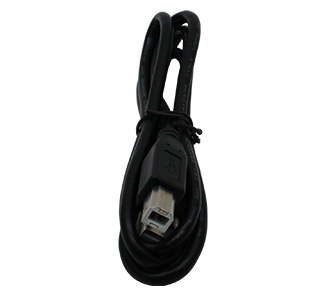

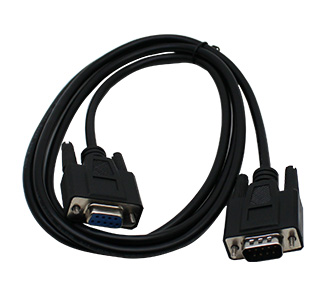

Details Of Accessories
